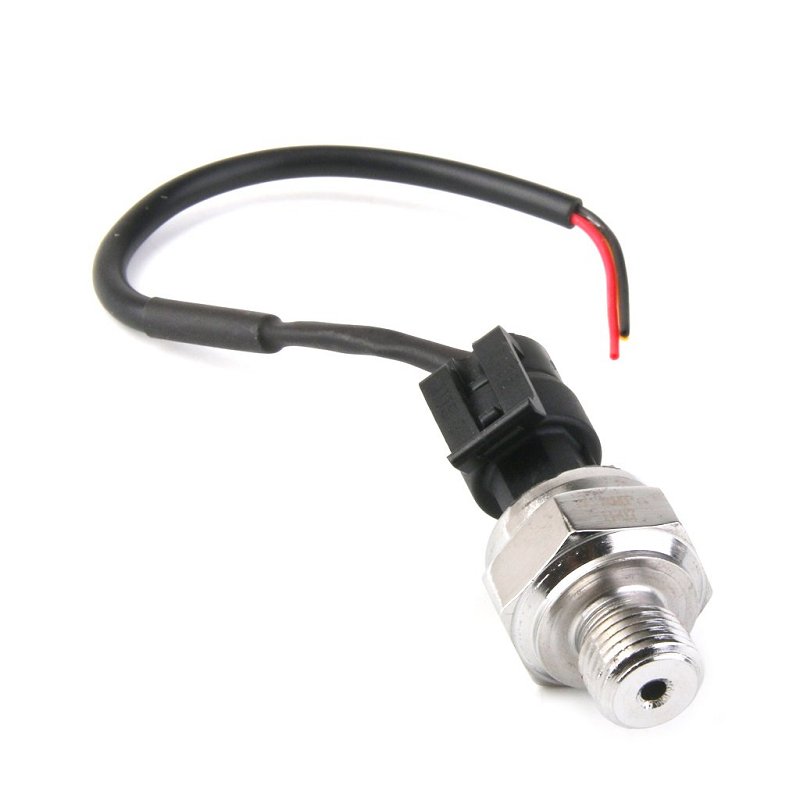

The Pressure Transducer is made from High-Quality stainless steel material providing it with rigidity. The transducer comes with a standard thread size of G1/4 and can work in both air and water. The sensor gives a digital output in the range of 0.5V to 4.5V while operating at 5VDC. The sensor has stable performance characteristics with a long operation life.SpecificationsSensor TypeAnalog Pressure SensorMaterialStainless SteelThread SizeG 1/4″Pressure Range (MPa)0 – 10Operating Voltage (VDC)5Output Voltage (VDC)0.5 ~ 4.5Accuracy1% FSLength (mm)50Width (mm)20Height (mm)20Weight (gm)70Shipment Weight0.075 kgFeatures:Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.Light Weight and Small Volume, Easy to Install, and Operate.Stainless Steel Body, it has Complete Surge Voltage Protection Function.Package Includes:1 x 10MPa Stainless Steel Pressure Transducer Sensor
