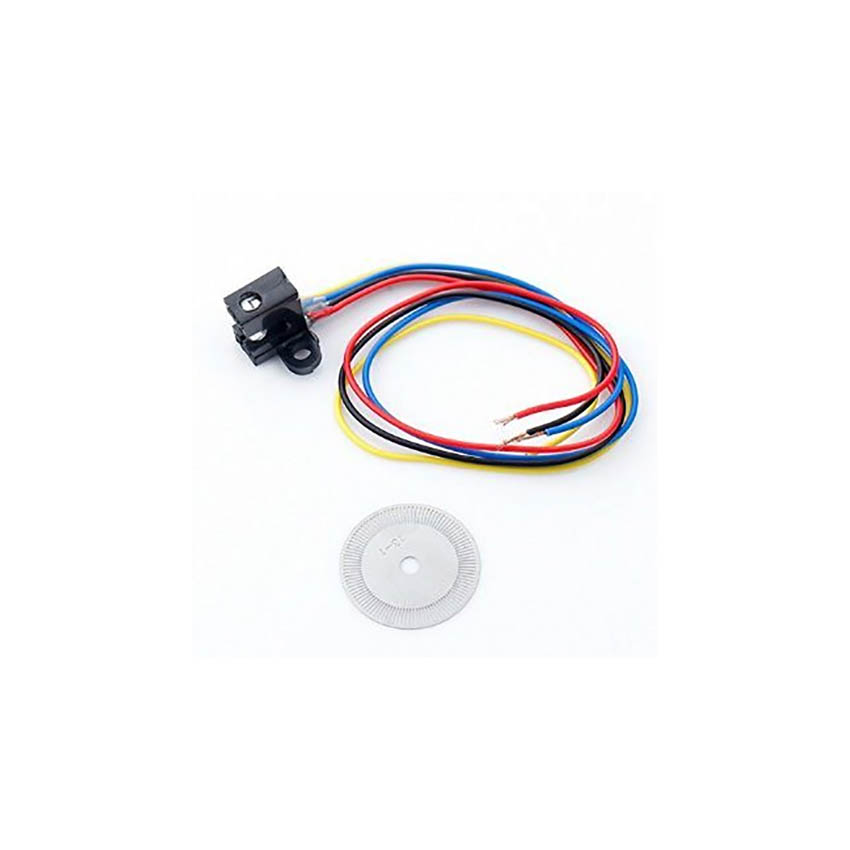

Specification: Number of lines: 100 lines Outer diameter: 22mm Hole diameter: 3.5mm Thickness: 0.3mm Material: alloy steel Production process: laser cutting Supply voltage: 5V (3.3V is also available) Wiring: Red 5V black GND Output signal: 5Vp-p two-phase signal output Number of lines: 100 lines Outer diameter: 22mm Hole diameter: 3.5mm Thickness: 0.3mm Material: alloy steel Production process: laser cutting Supply voltage: 5V (3.3V is also available) Wiring: Red 5V / Black GND Output signal: 5Vp-p two-phase signal output Two signal lines, one yellow, one blue Yellow and blue are two TTL level signals (can be directly connected microcontroller)
