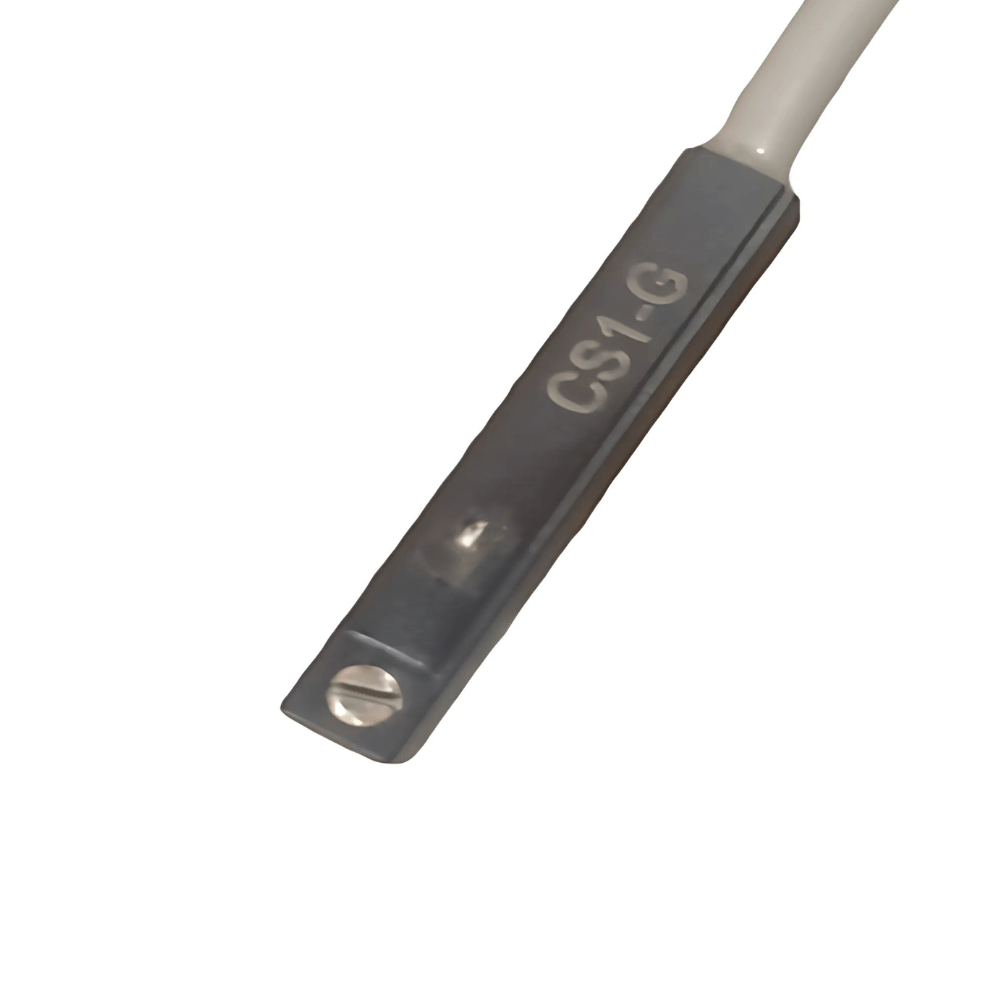

CS1-G NO 5-240V AC/DC Magnetic Reed Switch Air Cylinder Sensor

Specifications : Model: CS1-G Installation: railway installation Switch selection: SPST normally open type Induction switch type: with node type Operating Voltage:5-240V DC/AC MAX Coupling Current: 100mA MAX capacity: 10W Internal Consumption Current: None Residual pressure: 2.5V MAX Indicator lamp:Red LED MAX Switching Frequency:200Hz Impact resistance: 30G
