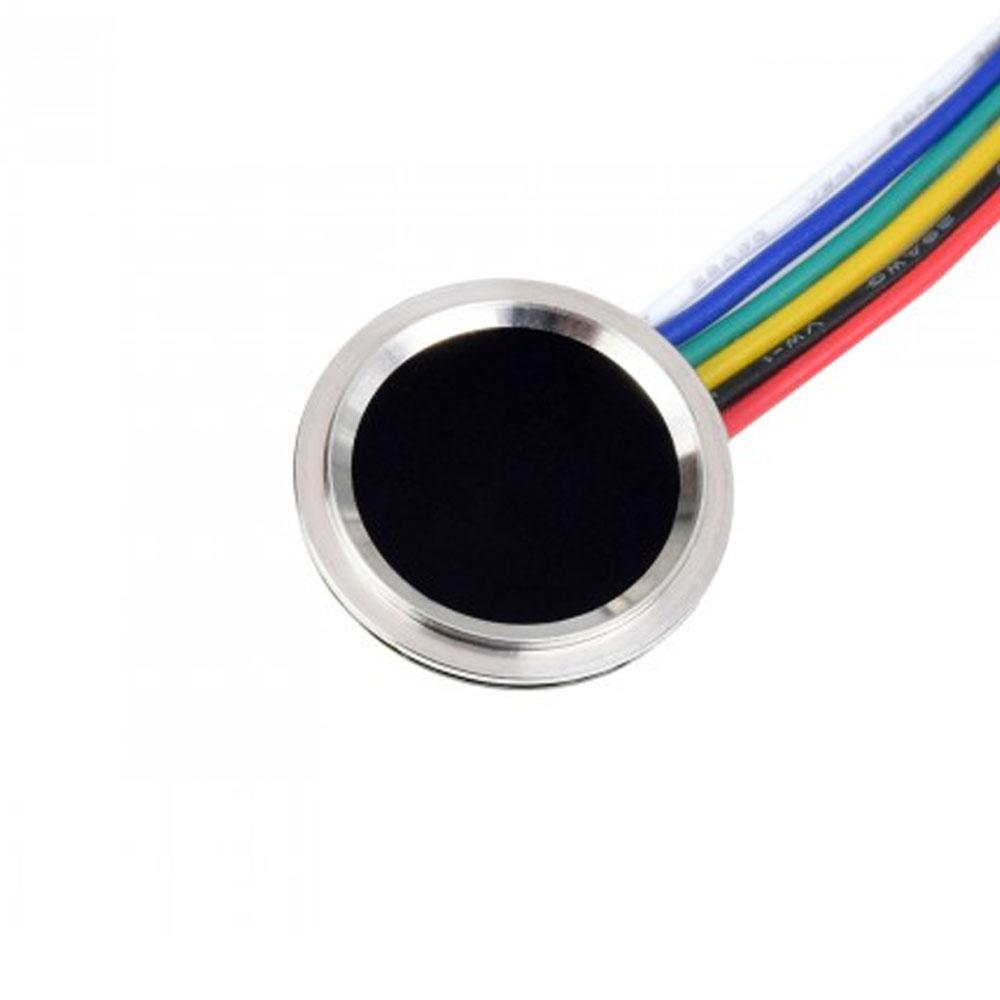

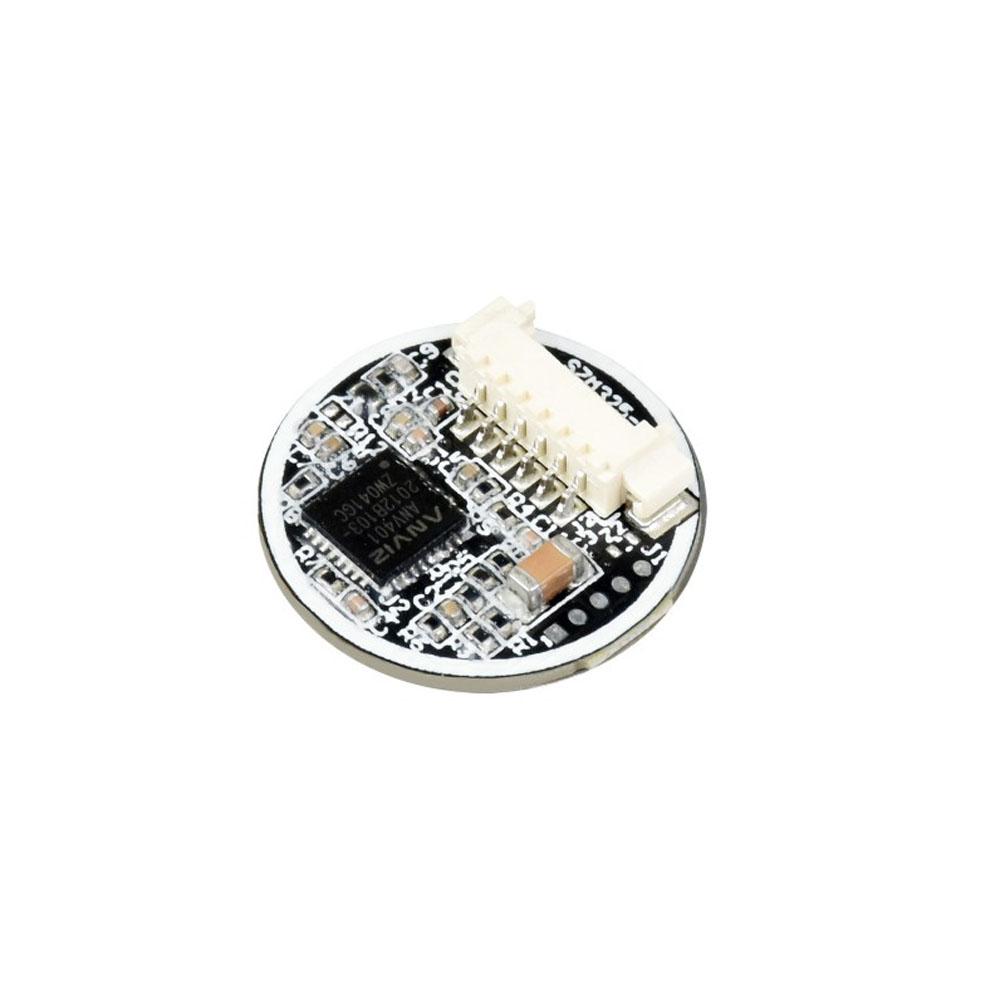

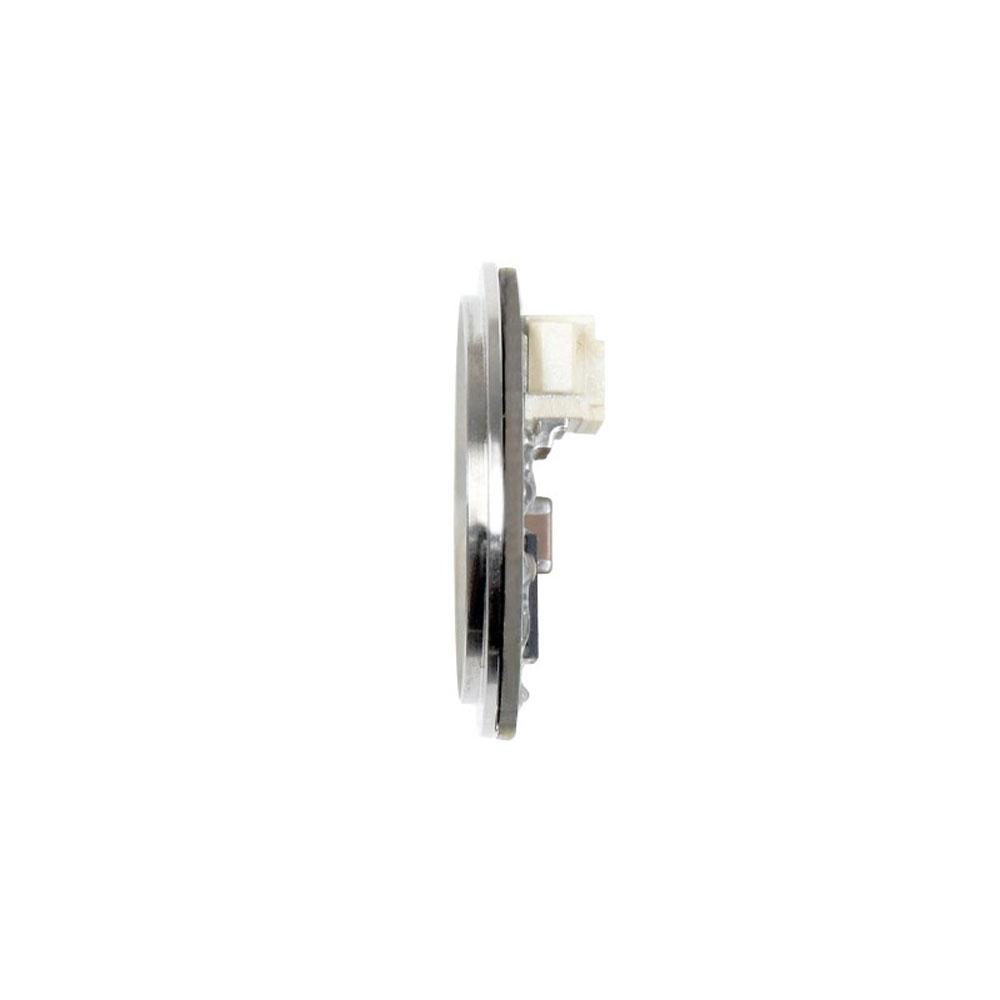

Round-Shaped All-In-One Capacitive Fingerprint Sensor (D), Cortex Processor, 360° Verification

$55.75 $92.54
Specification :  PARAMETER : VALUE Sensor : capacitive touch sensor Resolution : 508 DPI Image pixels : 160×160 Image greyscale : 8 Sensor dimension : R15.5 mm Fingerprint capacity : 150 Matching time : <500ms (1:N, and N≤100) False acceptance rate : < 0.001% False rejection rate : < 0.1% Operating voltage : 2.7~3.3V Operating current : < 50mA Sleep current : < 16uA ESD : contact discharge 8KV / aerial discharge 15KV Communication port : UART Baudrate : 19200 bps Operating environment : Temperature: -20°C~70°C; Humidity: 40%RH~85%RH (no condensation) Storage environment : Temperature: -40°C~85°C; Humidity: <85%RH (no condensation)
