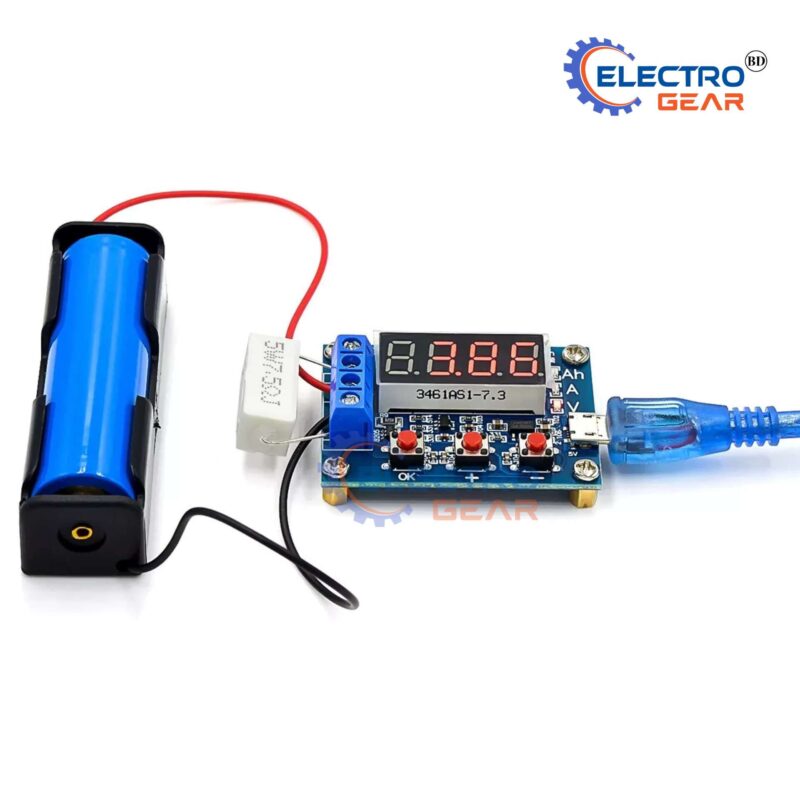

Battery Capacity Meter & Discharge Tester for 18650 Li-ion Lithium Battery
$52.73
$98.61

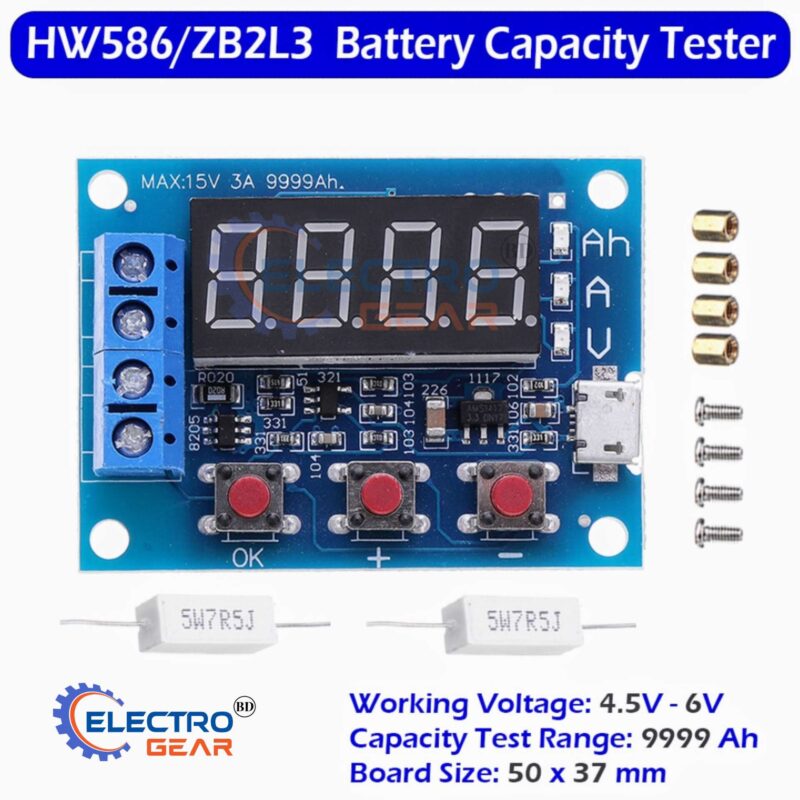

Power supply voltage: DC4.5-6V (micro USB connector) Operating Current: less than 70mA Discharge voltage: 1.00V-15.00V 0.01V resolution Termination voltage range: 0.5-11.0V Supported by current: 3.000A 0.001A resolution Maximum voltage measurement error: 1% 0.02V Maximum current measurement error: 1.5% – 0.008A Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on. Board size: 50mmX37mm Package include: 1 * ZB2L3 Battery Tester, 2 * Resistor, 4 * Spacer Pillar, 4 * Bolt
