Arduino Mega 2560 Pro Mini Board with CH340, USB Type C

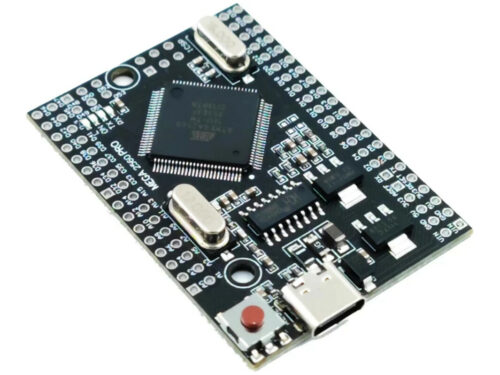

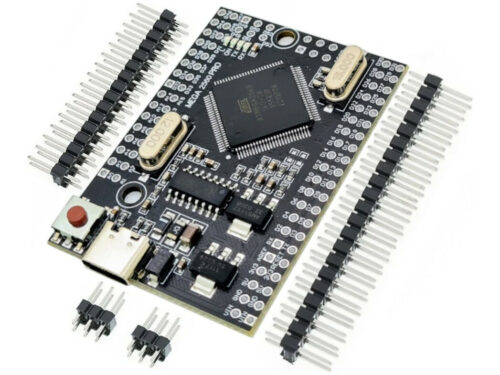

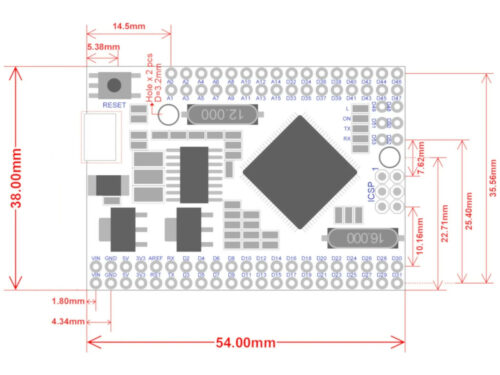

This is a low cost and miniature version of the popular Arduino Mega 2560, with a USB Type C Connector. It is assembled with a genuine Atmel ATmega2560 microcontroller and the low cost CH340G USB-UART interface.  Please Note: This is a generic board, and can be manufactured by a variety of different manufacturers. The boards might look slightly different than in the pictures(like text on board). But the size, pinout, circuit and functionality will be identical. The "Arduino Mega 2560 Pro Mini" board is compatible with the Arduino Mega 2560. It has a compact form factor of 38 x 54mm and is an excellent solution for developing projects based on ATmega2560. The Mega Pro Embed functionalities are identical to the Arduino Mega 2560. Even though it is an Embed board, it is solid stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonators is present on the board. Connectivity The board has a USB Type C connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340(A driver installation may be required). Connectivity to the computer is provided through the common USB Type C connector (universally used by most phones, including Android smartphones). Power characteristics The board can be powered directly through the USB Type C connector, or via the corresponding contact on the board (Vin). The used voltage regulator operates in a range of 6 to 9V DC. The maximum output current for 5V is around 800mA, while for 3.3V it is about 800mA. The voltage regulator allows to use up to 18V as an input value, however we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device. Specifications Microcontroller ATmega2560 USB-TTL converter CH340 Power Out 5V-800mA Power IN. 5V Power IN. VIN/DC Jack 5V Power Consumption 5V 220mA Logic Level 5V USB Type C Connector Clock Frequency 16MHz Operating Supply Voltage 5V Digital I/O 54 Analog I/O 16 Memory Size 256kb Data RAM Type/Size 8Kb Data ROM Type/Size 4Kb Interface Type ISP Operating temperature −40С°/ 85С° Length×Width 38×54mm Package Includes 1 x Arduino Mega Pro board 2 x 2x3 Pin Headers 1 x 2x16 Pin Header 1 x 2x21 Pin Header [mx_insert-post-ebay slug="ebay-t-default"] SKU: ARD0-017 Categories: Arduino Boards, Arduino Boards Tags: arduino, atmel, avr
