FREE Shipping - LRS-350-12 Mean Well Enclosed, Switching Power Supply, 12V, 29A, 348W
$53.96
$94.42

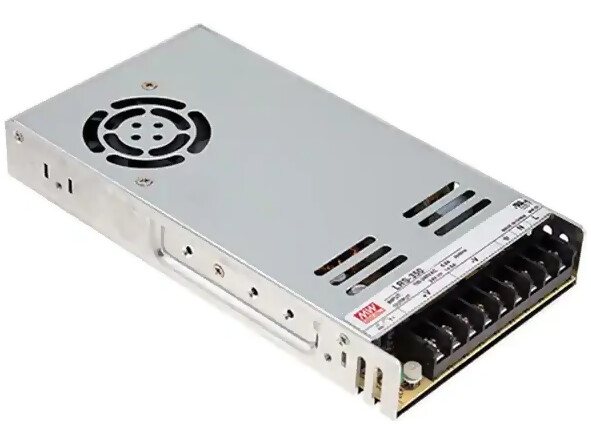

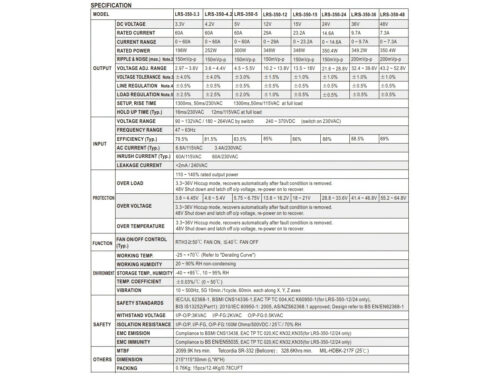

FREE Shipping, No Account Required, Ships from Sydney within 1 day. Use "Guest" checkout to order without creating an account. This is a genuine 12V, 29A and 348W Mean Well LRS-350-12 enclosed power supply. The LRS-350 series of single-output 350 W enclosed style power supply is a low profile, highly efficient enclosed product. The LRS-350 series has been designed for use within demanding applications, thanks to a metallic meshing & air convection to ensure optimum heat dissipation. The LRS-350 series has been designed with efficiency in mind, delivering an extremely low no load power consumption. Installation into more testing environments can be done thanks to 5G anti-vibration capability. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/lrs-350_datasheet.pdf Features Universal AC input / full range, with a 5 second 300 V ac surge input. Up to 85% efficiency rating, with less than 0.5 W no load power consumption. 5G vibration resistance. Free air convection cooling. Standards: EN60950-1, EN60335-1, EN61558-1 / -2-16, UL60950-1 & GB4943 Specifications Output Voltage 12V DC Output Current 29A Power Rating 348W Number of Outputs 1 Input Voltage 180 to 264 (By Switch) V AC, 240 to 370 V DC, 90 to 132 V AC Mounting Type Chassis Mount Package Type Enclosed Length 215mm Width 115mm Depth 30mm Weight 760g Efficiency 85% Maximum Temperature 70°C Minimum Temperature -25°C Typical Applications Industrial automation & control machinery. Mechanical & electrical equipment. Household appliances. Specs and Docs DatasheetDatasheet:99tech.com.au/m/lrs-350_datasheet.pdf Installation ManualInstallation Manual:99tech.com.au/m/mwl_meanwell_enclosed_psu_installation_manual.pdf [mx_insert-post-ebay slug="ebay-t-default" no-class="mxPakInc"] Package Includes 1 x Mean Well power supply SKU: LRS0-112 FS Categories: Power Supplies, Power Supplies - Free Shipping Tags: freeship, meanwell, psu
