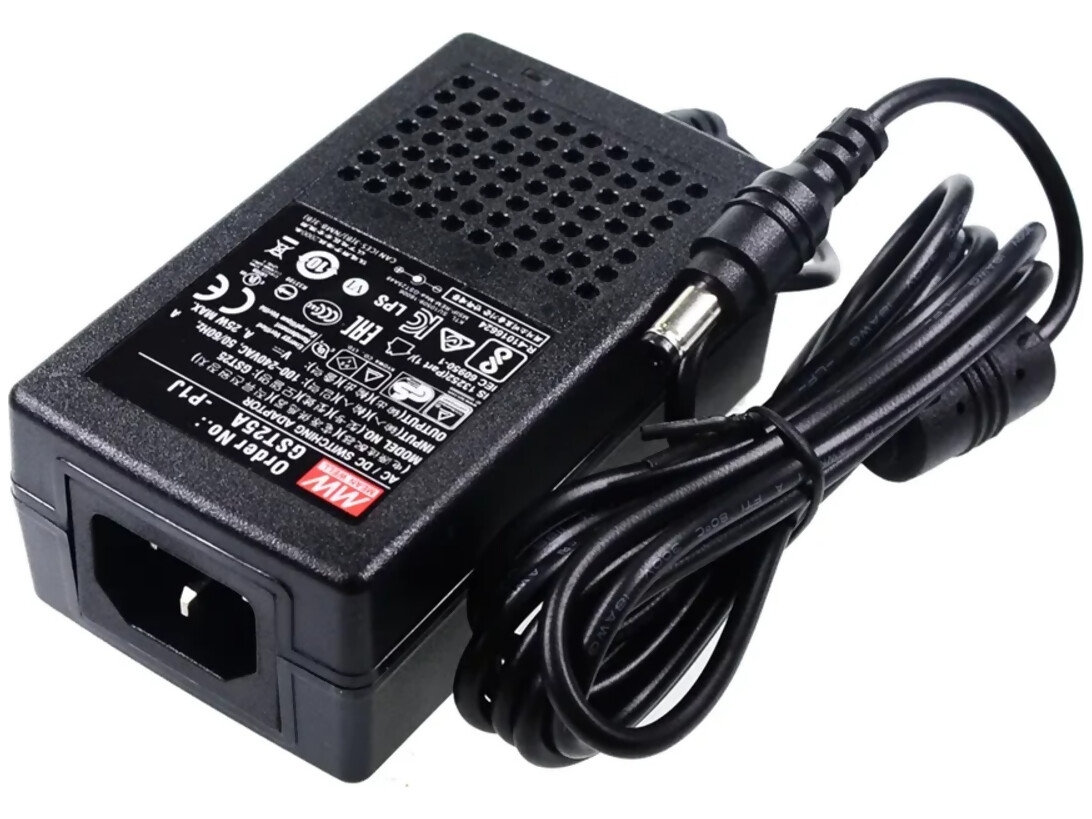

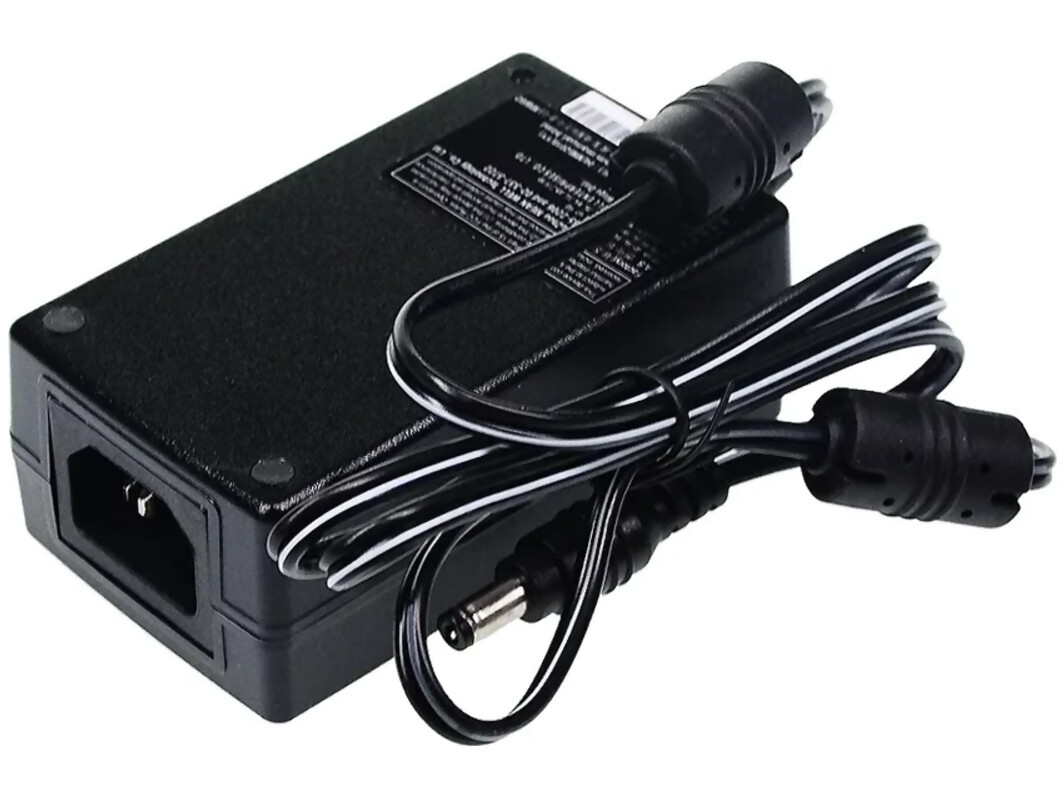

GST25A09-P1J Mean Well Desktop Power Supply, 9V, 2.55A, 23W

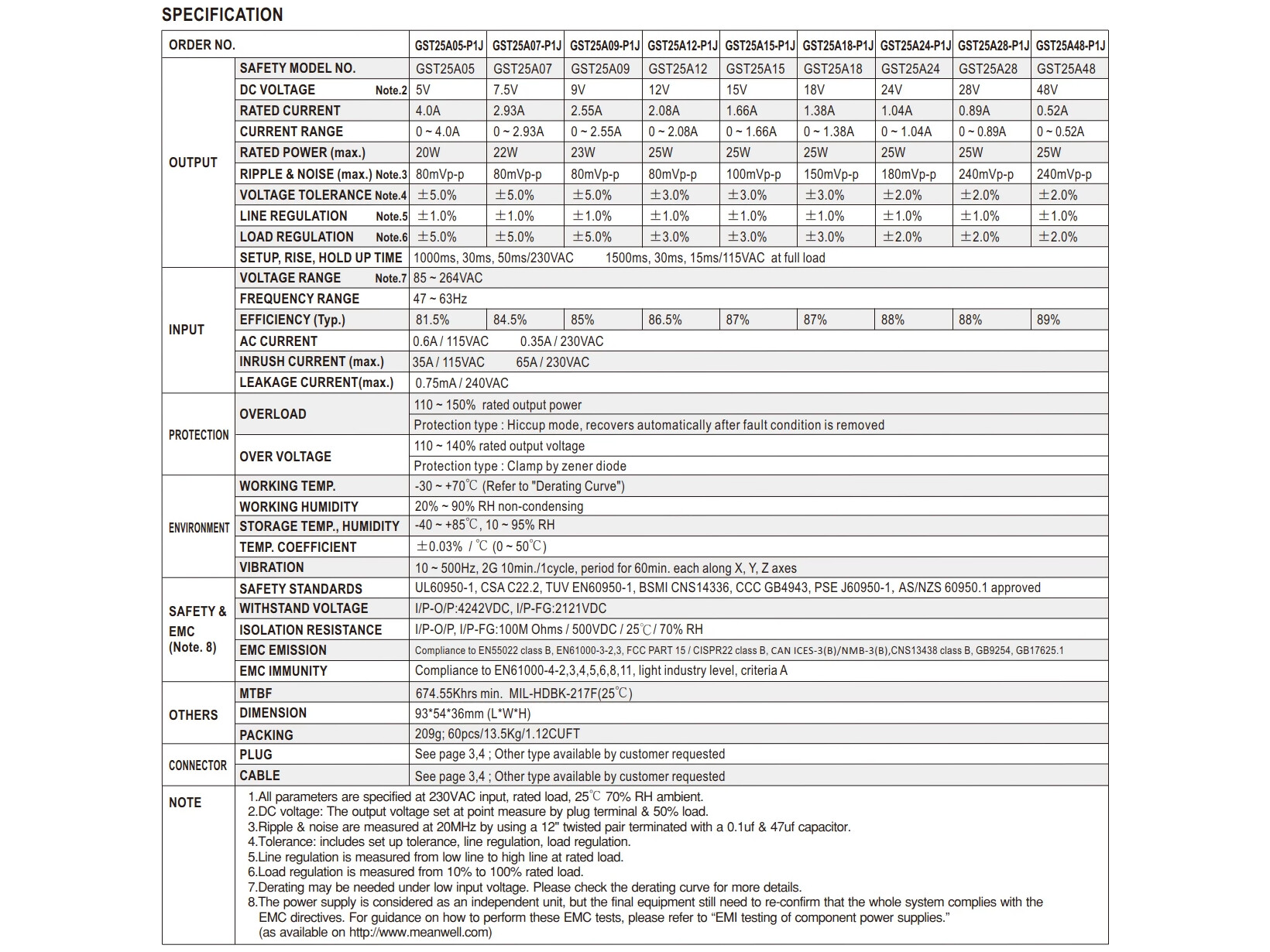

This is a genuine 5V, 4A and 20W Mean Well Desktop Power Adapter, part number GST25A09-P1J. An IEC C13 type power cord is required for this power supply, and is not included.  The GST25A is a highly reliable, 20 to 25W desktop style single-output green adaptor series. This product is a class power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With an efficiency of up to 89% and extremely low no-load power consumption below 0.075W, the GST25A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. These supreme features allows this adaptor to save energy when it is in operating or standby mode. The entire series features a flame retardant 94V-0 plastic case. The GST25A is certified for international safety regulations. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/gst25a-p1j_datasheet.pdf Features Short circuit, overload and over voltage protected 3 pole AC inlet IEC320-C14, class I power unit Energy efficiency level VI Fully enclosed plastic case LED indicator for power on Mains lead sold separately Specifications Output Voltage 5V DC Output Current 4A Power Rating 20W Number of Outputs 1 DC Output Connector 2.1 mm Barrel Plug (2.1x5.5) Input Voltage 85 VAC to 264 VAC LED indicator for power Length 93mm Width 54mm Depth 36mm Weight 209g Efficiency 81.5% Maximum Temperature 70°C Minimum Temperature -30°C Specs and Docs DatasheetDatasheet:99tech.com.au/m/gst25a-p1j_datasheet.pdf Package Includes 1 x Meanwell Power Supply [mx_insert-post-ebay slug="ebay-t-default"] SKU: GST0-009 Category: Power Supplies Tags: meanwell, psu
