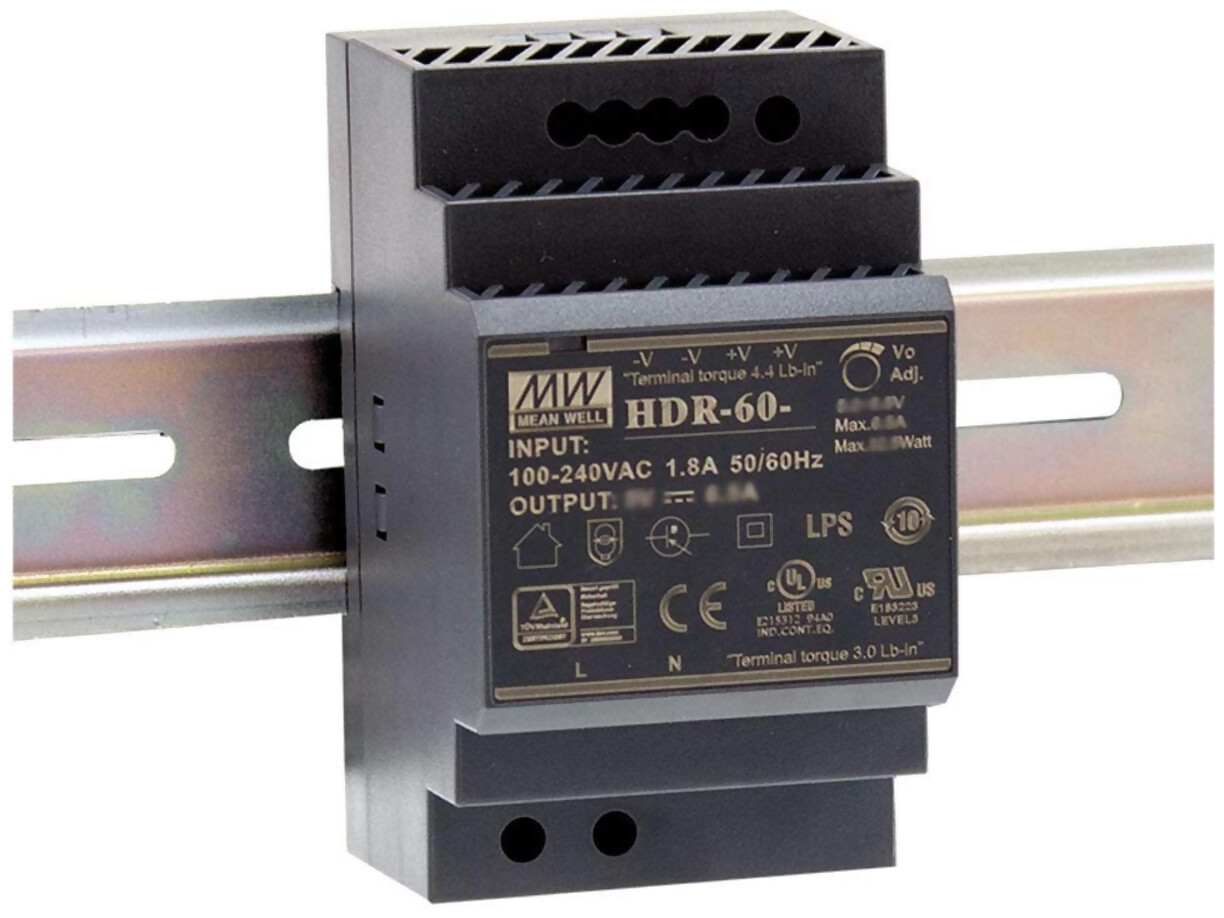

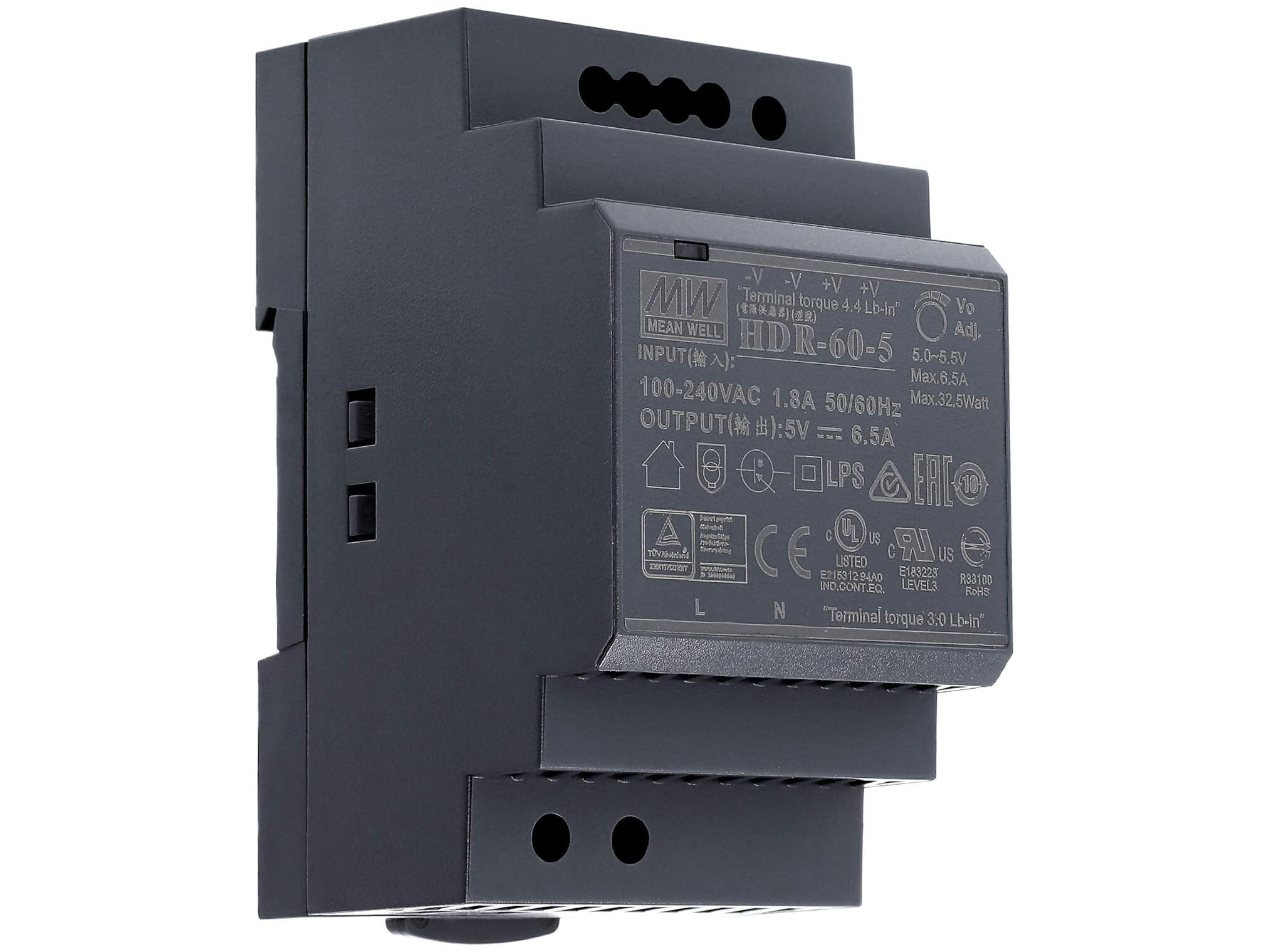

HDR-60-5 Mean Well DIN Rail Power Supply, 5V 6.5A 60W

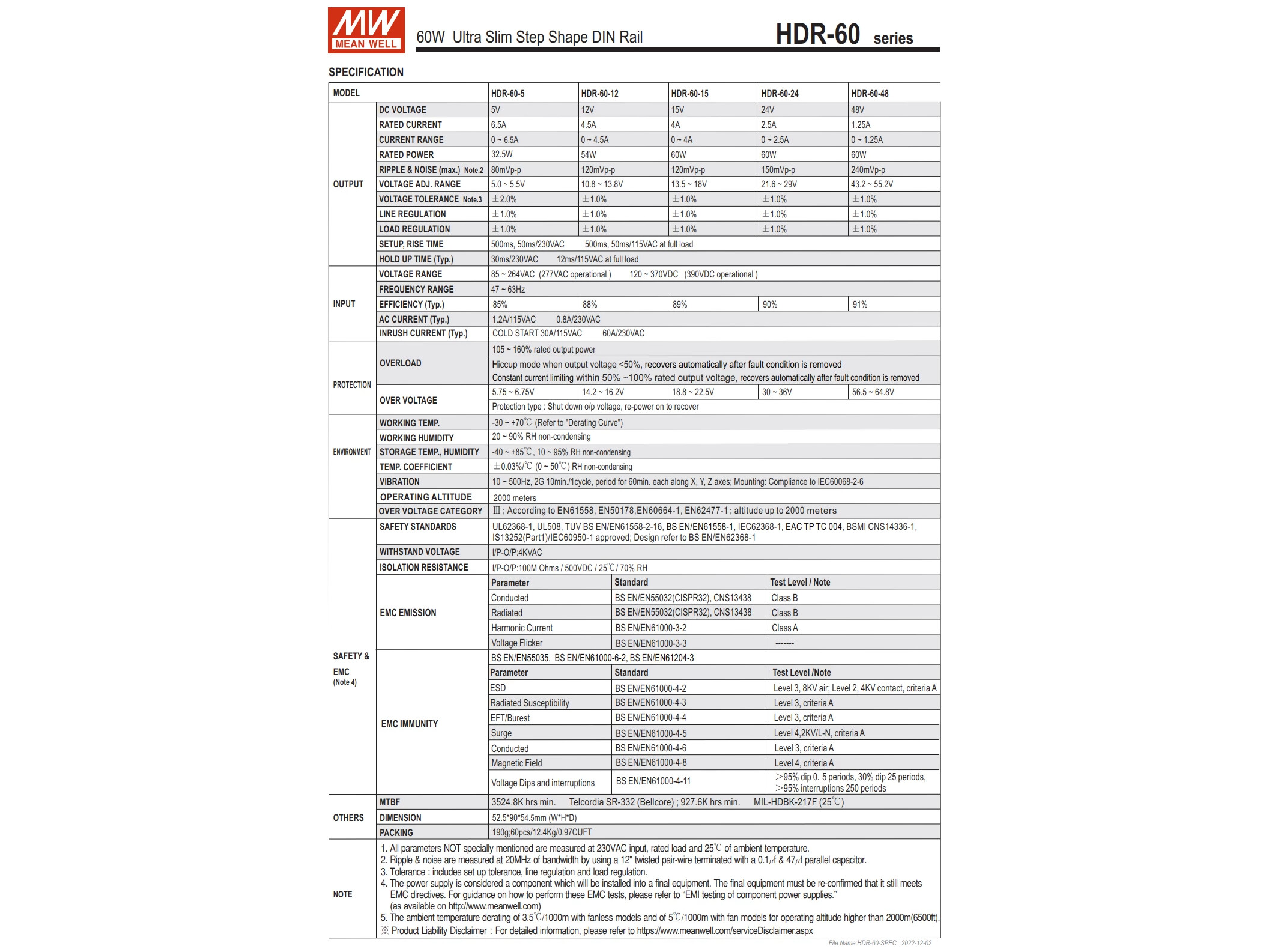

This is a genuine 5V, 6.5A and 60W Mean Well HDR-60-5 power supply, with clips for mounting on a DIN Rail. It’s ultra slim housing allows for a space saving design within an installation. Designed with a plastic housing preventing the user from electric shock. The HDR series can operate at an ambient temperature between -30ºC and 70ºC with free air convection. It has extensive protection functions making it suitable for home automation, household and industrial control applications (IEC62368-1,UL508, UL62368-1,BS EN/EN61558-2-16). The HDR-60-5 is a suitable replacement for the Mean Well MDR-40-5 and MDR-60-5. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/hdr-60_datasheet.pdf Features Ultra slim design with 52.5mm(3SU) width Universal input 85~264VAC (277VAC operational) No load power consumption<0.3W Isolation class II Pass LPS (Limited power source) DC output voltage adjustable Protections: Short circuit / Overload / Over voltage Cooling by free air convection (working temperature:-30~ 70°C) DIN rail TS-35/7.5 or 15 mountable LED indicator for power on Conforms to BS EN/EN61000-3-2, the EU norm for harmonic current Up to 85% efficiency rating Standards: IEC62368-1,UL508, UL62368-1,BS EN/EN61558-2-16 Dimensions (HxWxD): 55 x 90 x 35mm Package Includes 1 x Meanwell Power Supply [mx_insert-post-ebay slug="ebay-t-default"] SKU: HDR6-005 Category: Power Supplies Tags: din, meanwell, psu
