3S/4S/5S 100A BMS – 12V/16.8V/21V Li-ion Lithium Battery Protection Board with Balance Charging
$60.75
$85.66

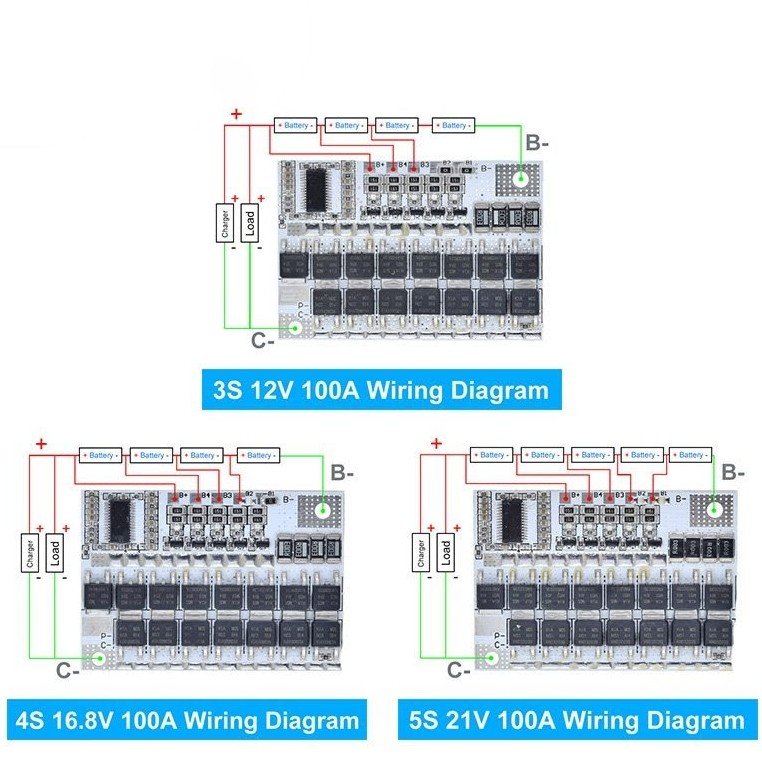

Specifications: Battery Configuration: Supports 3S (12V), 4S (16.8V), and 5S (21V) Li-ion Battery Packs Battery Type: 18650 Li-ion / LMO / Ternary Lithium / Li-Polymer Maximum Discharge Current: 100A Charge Voltage: 12.6V (3S) / 16.8V (4S) / 21V (5S) Balance Charging: Yes Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit Protection PCB Size: Approx. 60mm x 45mm x 3mm Application: Power Banks, E-Bikes, Solar Energy Storage, Power Tools
