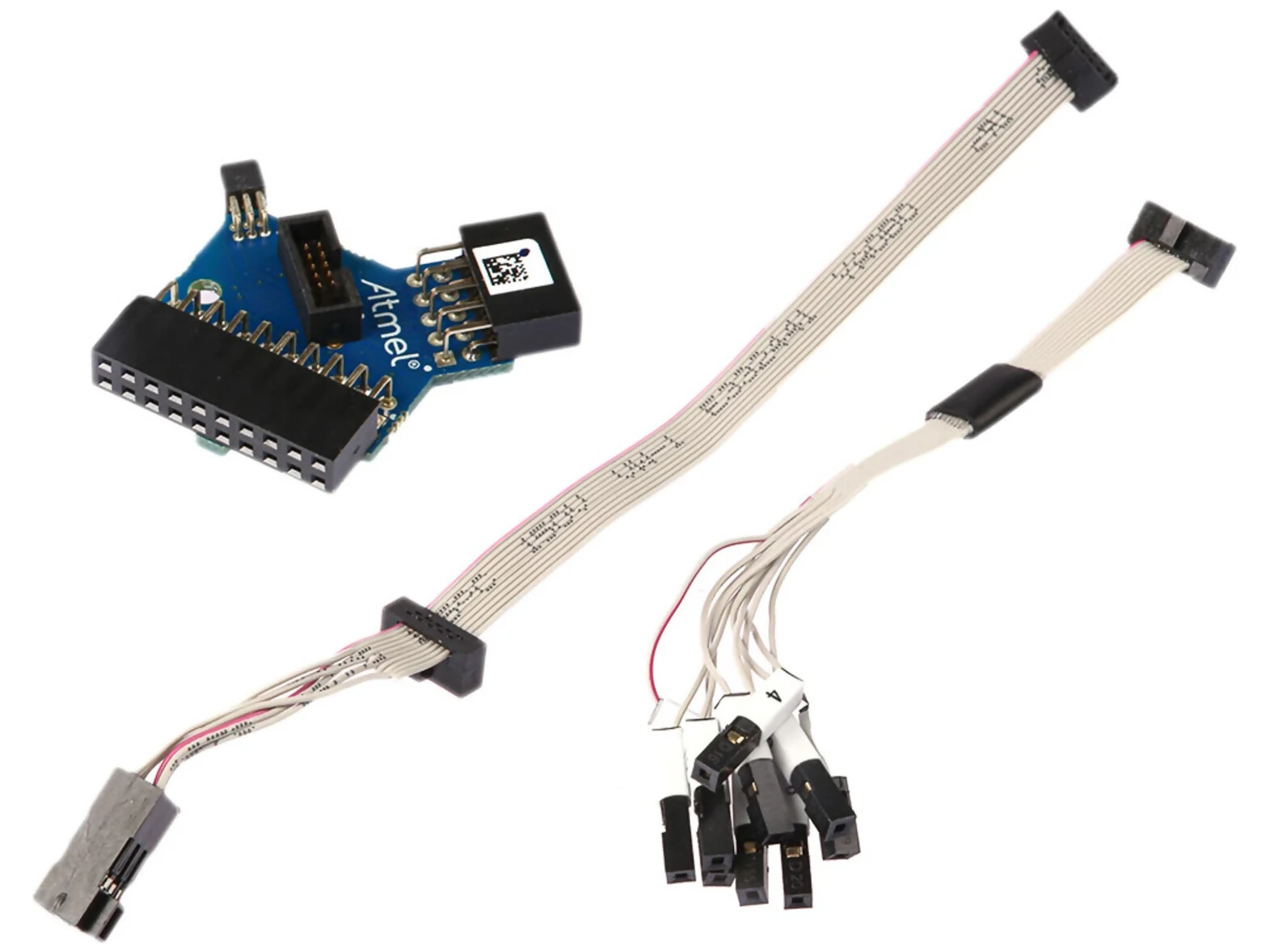

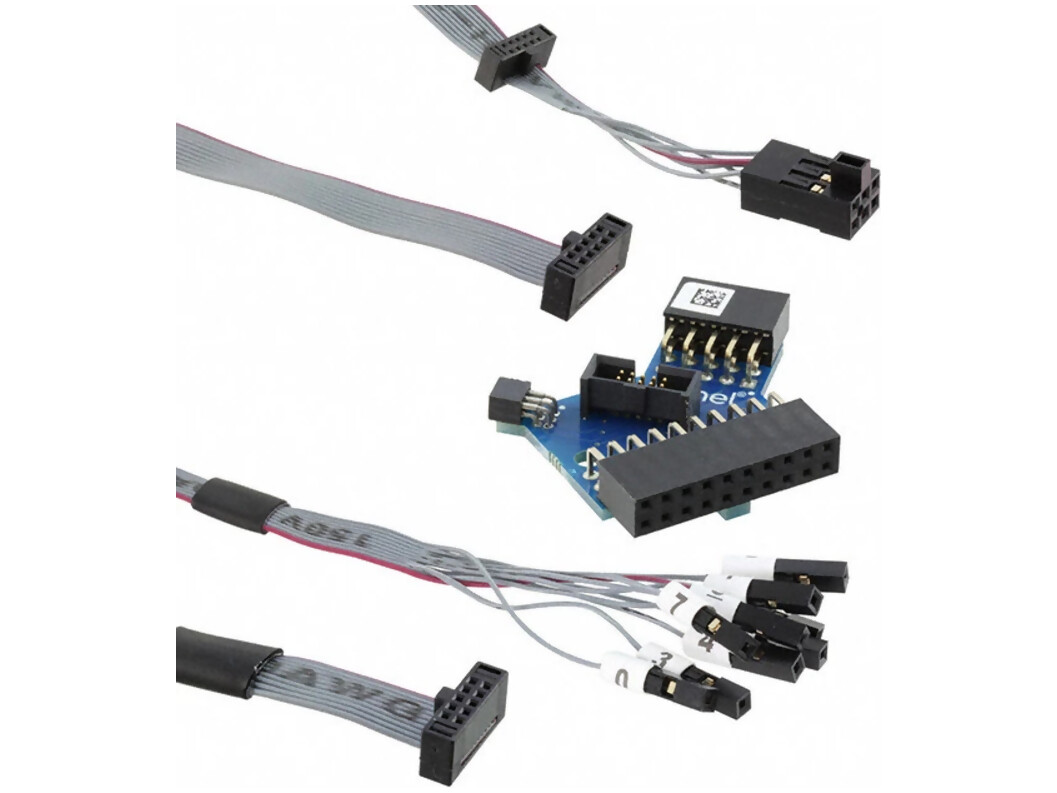

The Atmel-ICE Adapter Kit is a connectivity board that gives Atmel-ICE Debugger cable compatibility to demo boards with a variety of connectors. It supports JTAG, SWD, SPI, debugWIRE, PDI and aWire protocols in multiple connector formats. It is useful for debugging AVR® and SAM- based demonstration boards with the Atmel-ICE debugger. To view the PDF Schematics, click here.see this page: 99tech.com.au/m/pgm-atmel-ice-adapter-kit_sch.pdf For additional information, see the manufacturer's product page.product page:www.microchip.com/en-us/development-tool/ATATMEL-ICE-ADPT Microchip Part Number: ATATMEL-ICE-ADPT Features Adapter board with the following connections 100-mil 10-pin JTAG/SWD adapter 100-mil 20-pin SAM JTAG/SWD adapter 50-mil 6-pin SPI/debugWIRE/PDI/aWire adapter 50-mil 10-pin IDC flat cable with 6-pin ISP and 10-pin connectors 50-mil 10-pin mini-squid cable with 10 x 100-mil sockets Package Includes 1 x Adapter Board 1 x 50-mil 10-pin IDC flat cable with 6-pin ISP and 10-pin connectors 1 x 50-mil 10-pin mini-squid cable with 10 x 100-mil sockets [mx_insert-post-ebay slug="ebay-t-default"] SKU: PGM0-102 Categories: Platform - AVR & SAM, Programmers Tags: atmel, debugger, microchip, programmer
