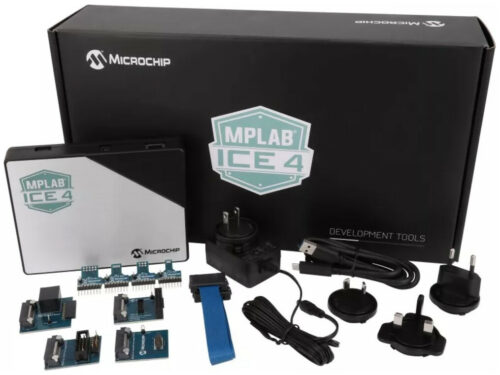

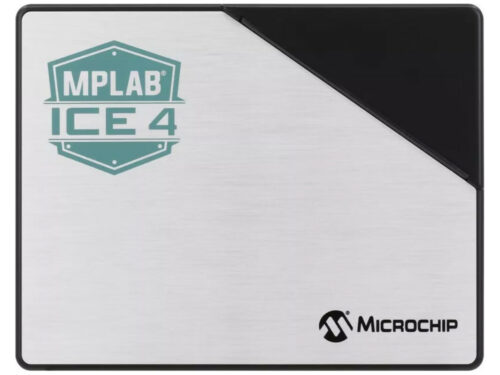

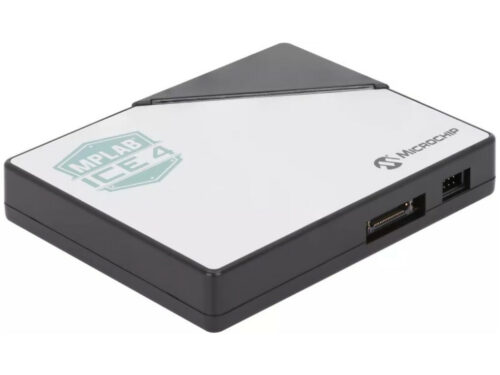

Microchip ICE 4 In-Circuit Emulator, Programmer and Debugger DV244140, Genuine

This is a brand new and original Microchip ICE 4 In-Circuit Emulator, Programmer and Debugger, part number DV244140. PLEASE NOTE, this item typically has a 5 to 10 day lead time. The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs). It offers a flexible development environment combined with the capabilities to develop power-efficient code while reducing the debug time. It debugs and programs with a powerful and easy-to-use graphical user interface that uses the latest version of MPLAB X Integrated Development Environment (IDE), version 6.00. The MPLAB ICE 4 in-circuit emulator connects to a host PC using a SuperSpeed USB 3.0 interface and easy-to-use wireless connectivity options for much greater flexibility. By using Ethernet or Wi-Fi® access point interfaces, you can enable wireless connection to the tool for debugging, programming and more. At one end, the MPLAB ICE 4 in-circuit emulator connects to the target using a high-speed 40-pin rugged edge rate cable assembly and at the other end, it connects to adapter boards tailored for supported device communication. To view the PDF Datasheet, click here.see this page: www.99tech.com.au/m/pgm-ice4_user_guide.pdf For additional information, see the manufacturer's product page.product page:microchip.com/en-us/development-tool/DV244140 Features The MPLAB ICE 4 in-circuit emulator contains a variety of connectivity features to debug and program: SuperSpeed USB 3.0 host PC interface with USB speed of 5 Gbps High-speed USB 2.0 host PC interface Ethernet connectivity with speeds up to 100 Mbps Wired/DHCP/APIAP IP addressing Static IP addressing Wi-Fi Access Point Connectivity (Wi-Fi-AP) Connects with SSID of the unit Connection to Wi-Fi using Wireless Station Mode (Wi-Fi-STA) Connects to your home/office network  Uses network SSID, security type with username and password This product supports a wide range of target devices with voltages from 1.2V to 5.5V. It also contains professional-grade safety features to enhance productivity: Powered by 9V DC wall mount power supply Can safely power up to 1A of power to a target application Ruggedized with protection circuitries to the probe drivers to guard from voltage transients from the target  VDD and Vpp voltage monitors protect against overvoltage conditions and all lines have overcurrent protection RED tested and CE and RoHS compliant  The MPLAB ICE 4 in-circuit emulator is compatible out of the box with multiple Microchip connectors and has adapter boards for the following legacy target connections: MPLAB ICE 4 in-circuit emulator JTAG adapter for SAM MCUs MPLAB ICE 4 in-circuit emulator ICSP™ programming capability adapter board for AVR MCUs ICE 4 AVR JTAG  (10-pin) ICE 4 AVR (10-pin mini) ICE 4 AVR (6-pin) ICE 4 AVR (6-pin mini) MPLAB ICE 4 in-circuit emulator ICSP programming capability adapter board for PIC MCUs and dsPIC Digital Signal Controllers (DSCs) MPLAB ICE 4 in-circuit emulator Arm® Cortex®-M trace adapter board for SAM MCUs MPLAB ICE 4 in-circuit emulator PIC32 trace adapter board for PIC32M MCUs The MPLAB ICE 4 in-circuit emulator connects to targets using a high-speed 40-pin rugged edge rate cable assembly. Advanced Trace Capabilities Data capture/native trace SPI trace (currently supported on 16-bit PIC devices) Port trace (currently supported on 16-bit PIC devices) PIC32 iFlowtrace™ 1.0/iFlowtrace 2.0 ARM ITM/SWO   Power Debugging Capabilities (Currently Only Supported on AVR and SAM MCUs) Can correlate to code by capturing power data and corresponding PC values Can identify power profiles  Can determine functions which take the most power Can Interface to MPLAB Data  Visualizer   Power Monitoring (Supported on All Devices) Can monitor power of the full system or component Contains two channels with different resolutions CI/CD Support  MPLAB ICE 4 in-circuit emulator hardware tool can be used for continuous integration/continuous delivery over Ethernet using hardware in the loop Can use CI/CD wizard to set up for Jenkins and Docker on the latest version of MPLAB X IDE v6.00  Data Gateway Interfaces USART Power SPI (support coming soon) I2C (support coming soon) Comprehensive Debug Functionality Supports multiple breakpoints, stopwatch and source code file debugging Selectable pull-up/pull-down option to the target interface Increase your productivity with hassle-free upgrades and maintenance. MPLAB ICE 4 in-circuit emulator is file upgradeable through an MPLAB X IDE firmware download. Package Includes 1 x MPLAB ICE 4 In-Circuit Emulator system 1 x USB cable 1 x 9V wall-mount power supply 1 x accessory kit [mx_insert-post-ebay slug="ebay-t-default"] SKU: PGM5-006 Categories: Platform - PIC, Programmers Tags: debugger, microchip, pic, programmer
