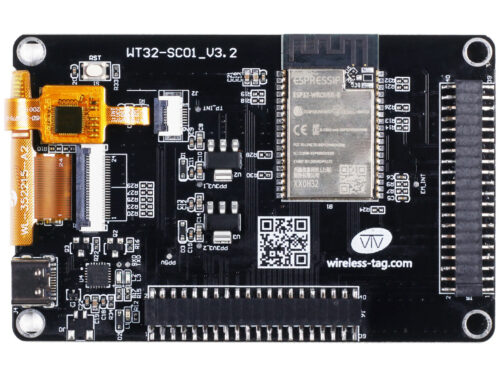

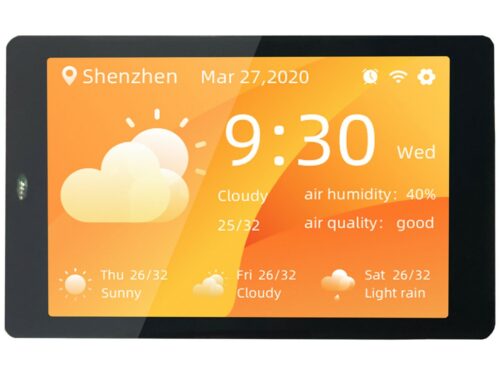

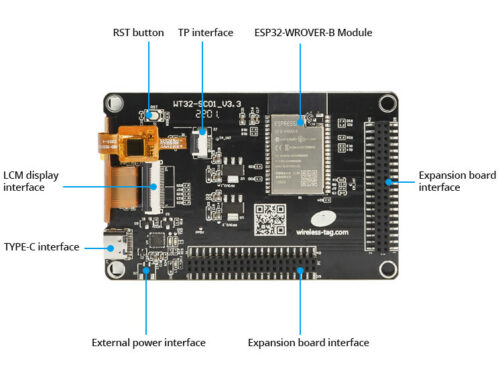

WT32-SC01 is an ESP32 Development board with a 3.5-inch color touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform. WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 16MB SPI Flash and 8MB PSRAM. We also have a cheaper version of this display with 4MB of Flash available, product code LCD-WT32-SC01. And a version using the ESP32-S3, product code LCD-WT32-SC01-PLUS. By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle. Specs and Docs PDF DatasheetPDF Datasheet:99tech.com.au/m/lcd-wt32-sc01_datasheet.pdf Online GUI DesignerOnline GUI Designer:8ms.xyz/login Getting to know the WT32-SC01 Blog PostGetting to know the WT32-SC01 Blog Post:www.eeweb.com/getting-to-know-thesli-wt32-sc01-touch-screen-display/ Repositories & Information on GitHubRepositories & Information on GitHub:github.com/search?q=WT32-SC01 Manufacturers SiteManufacturers Site:www.wireless-tag.com/portfolio/wt32-sc01/ Doing an internet search for "WT32-SC01" or "WT32-SC01 github" will also show many results for creating custom firmware. There are many 3D Printed Cases available on the internet, for examples the ones listed on Cults 3D sitethe ones listed on Cults 3D site:cults3d.com/en/search?q=WT32-SC01 Features Resolution: 480 x 320 Touch Screen Type: Capacitive 2 point LCD Interface: WiFi, Bluetooth and USB Type C Backlight: LED Highly integrated ESP32-WROVER-B module with low power consumption 3.5-inch 320x480 capacitive 2-point multi-touch screen for easy interactions Easy to program using the online graphical drag-and-drop programming Wireless connectivity with Wi-Fi and BLE Customize functions such as button operation, voice control, and camera operation through the expansion interfaces Weight of Module: 60g Total Weight including cable & packaging: 95g Specifications SoC: ESP32-WROVER-B module CPU: Dual-core Xtensa@ 32-bit LX6 MCU Connectivity: 802.11 b/g/n 2.4GHz Wi-Fi Bluetooth v4.2 BR/EDR and Bluetooth LE standards Display: 3.5 inch, LCD @320x480 Touch: Capacitive with 2-point multitouch Power Supply: DC 5V/2A. 5V/1A Operating Temperature: -20 to 85 °C Hardware Overview 1. ESP32-WROVER-B module 2. Capacitive touchpad interface 3. LCM display interface 4. Power management 5. Power switch 6. Reset Button 7. USB Type-C interface 8 – 9. Expansion board interface 10. Power indicator 11. UART communication indicator Package Includes 1 x LCD Display Module 1 x USB Type-C Cable [mx_insert-post-ebay slug="ebay-t-default"] SKU: LCD2-001 Categories: ESP32 & ESP8266, LCD, WiFi Modules Tags: display, esp32, lcd
