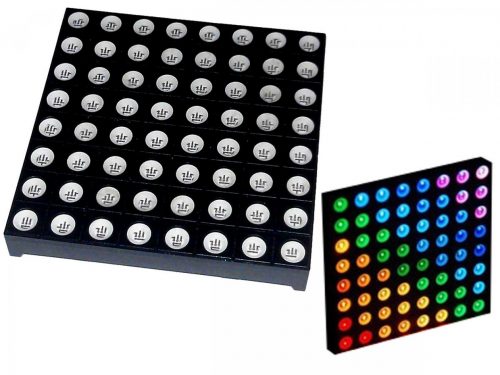

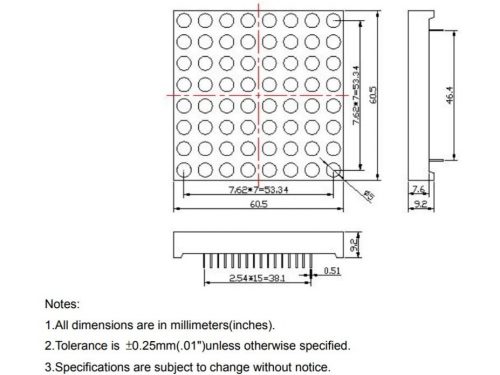

LED Dot Matrix module, with 8 rows by 8 columns of 5mm LEDs. All LEDs have a common Anode. The modules is 60 x 60mm. There are many projects on the internet describing how to use it with Arduino, STM32, PIC, Raspberry Pi and other popular platforms. Specifications Size: 60mm x 60mm LED Size: 5mm Configuration: Common Anode Forward Voltage(Typlical value at 20mA) Red LED: 2.0V Forward Voltage(Typlical value at 20mA) Green LED: 3.3V Forward Voltage(Typlical value at 20mA) BLue LED: 3.3V Operating Temperature: -25°C to 85°C Package Includes 1 x Dot Matrix LED module, 60 x 60mm [mx_insert-post-ebay slug="ebay-t-default"] SKU: LED0-001 Category: LEDs Tags: led, matrix, rgb
