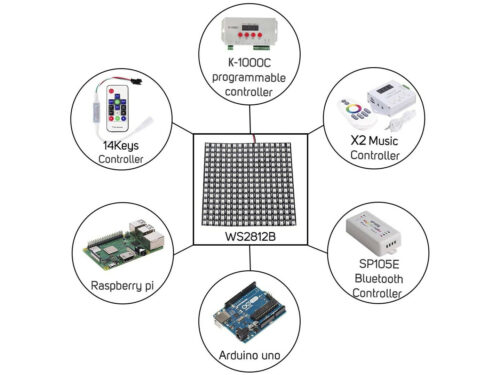

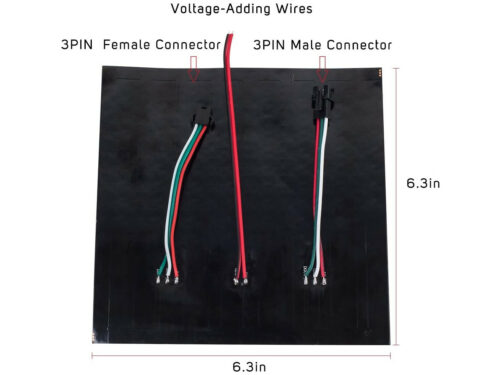

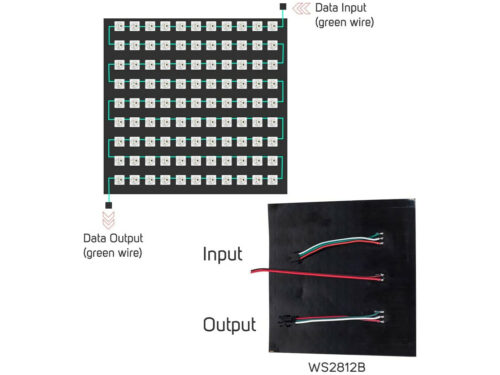

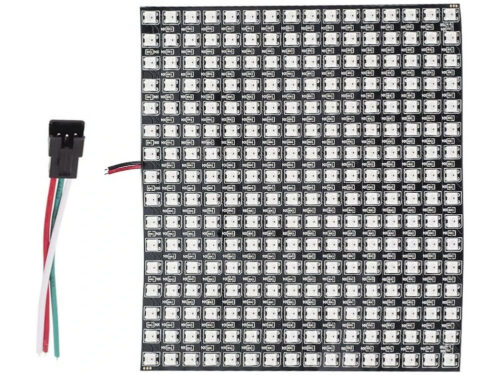

This is a high quality "BTF Lighting" brand LED matrix with 16 x 16 RGB WS2812B 5050 LEDs. It is a low cost, quality alternative for NeoPixel LED Matrix displays. Each LED has a built-in controller chip that allows you to daisy-chain the LEDs and control them individually from a single GPIO pin. These LEDs require a WS2812B controller to control each individual LED. There are a lot of online examples for doing this, for example using the S2812B Arduino Library. IMPORTANT ONLY power with 5V DC. A higher voltage will DESTROY the LEDs! The LED panel comes without a power supply and controller Ensure the power supply can provide sufficient power(Amp). Else the voltage will drop below 5V, and the panel will not work. Specifications Matric: 16 x 16 LED Control Chip: WS2812B Connector Type: 3 Pin Male and Female JST SM 2.54mm Package Includes 1 x LED Matrix 1 x Cable with 3 pin male connector [mx_insert-post-ebay slug="ebay-t-default"] SKU: LED0-003 Category: LEDs Tags: led, matrix, WS2812B
