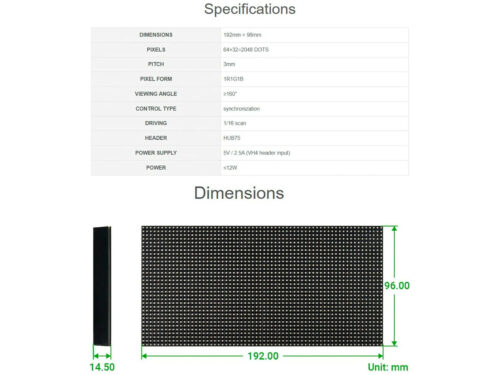

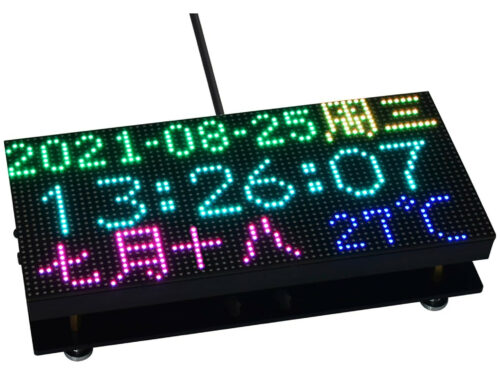

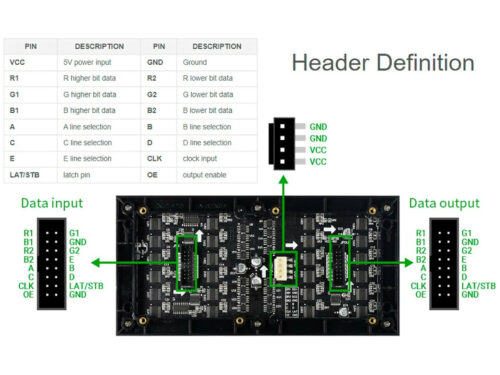

This is a high quality Waveshare brand colour LED matrix display panel with 64 x 32 3mm LEDs. It features adjustable brightness, and supports Raspberry Pi Pico, ESP32, Arduino... For more information have a look at the Waveshare Wiki page.Waveshare Wiki page:www.waveshare.com/wiki/RGB-Matrix-P3-64x32 NOTE: This product only contains a LED matrix, and needs a main control board such as Raspberry Pi Pico, ESP32, and Arduino. A main control board is not included. For details, refer to the product configuration list on the Waveshare Wiki page(link given above). Only connect 5V to the VCC and GND pins, other voltages can damage the panel. Features 2048 individual RGB LEDs, full-color display, adjustable brightness. 64 x 32 pixels, 3mm pitch, allows displaying text, colorful images, or animation. 192 x 96mm dimensions, moderate size, suitable for DIY desktop display or wall mount display. Onboard two HUB75 headers, one for controller data input, one for output, and chain support. Comes with online open-source development resources and tutorials, for use with Raspberry Pi, Pico, ESP32, Arduino, and so on. Specifications Matric: 64 x 32 LED LED Size: 3mm Waveshare SKU: 20117 Waveshare Part Number: RGB-Matrix-P3-64x32 Dimensions: 192mm × 96mm Pixels: 64 × 32=2048 dots Pitch: 3mm Viewing Angle: ≥160° Control Type: synchronization, 1/16 scan Power Supply: 5V / 2.5A（VH4 header input) Power: ≤12W Connector Type: Two male 2x8 pin box headers 2.54mm Package Includes 1 x RGB-Matrix-P3-64x32 LED matrix and accessories 1 x 16P wire ~30cm 1 x Dark brown acrylic front panel 1 x Power supply terminal adapter 1 x Double-sided tape 4 x Magnetic bolts [mx_insert-post-ebay slug="ebay-t-default"] SKU: LED0-006 Category: LEDs Tags: led, matrix, rgb
