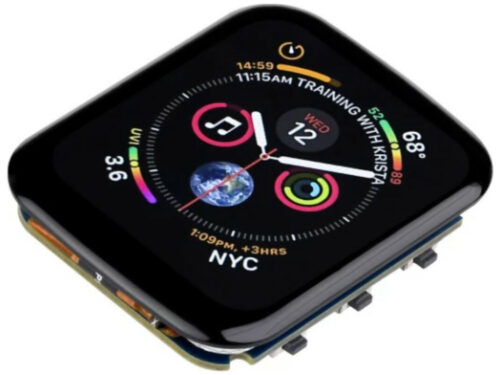

Waveshare LCD Display, ESP32-S3, 1.69", 240 x 280, Touch Screen

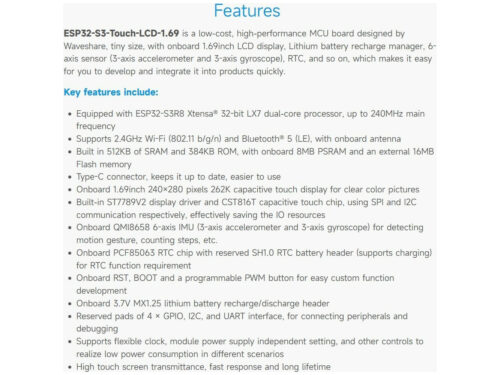

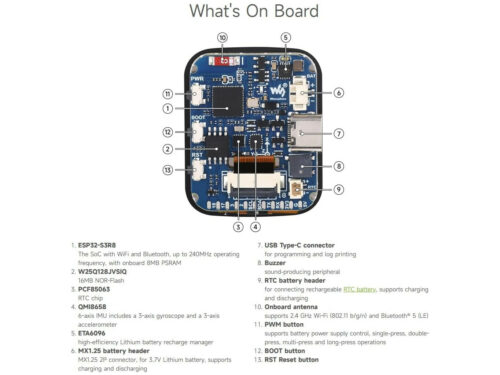

The ESP32-S3-Touch-LCD-1.69 is a cost-effective, high-performance microcontroller development board designed by Waveshare. On the small plates, onboard a 1.69inch capacitive touch LCD screen, Lithium battery charging chip, 6-axis sensor (3-axis accelerator and 3-axis gyroscope), and peripheral interface such as RTC, easy to develop and embed into products. For more information have a look at the Waveshare Wiki page.Waveshare Wiki page:www.waveshare.com/wiki/ESP32-S3-Touch-LCD-1.69 Waveshare SKU: 27350 Waveshare Part Number: ESP32-S3-Touch-LCD-1.69 Features Equipped with ESP32-S3R8 Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement Onboard RST, BOOT and a programmable PWM button for easy custom function development Onboard 3.7V MX1.25 lithium battery recharge/discharge header Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios High touch screen transmittance, fast response and long lifetime Package Includes 1 x LCD Display [mx_insert-post-ebay slug="ebay-t-default"] SKU: LCD1-513 Categories: LCD, Pi Displays Tag: lcd
