4G HAT for Raspberry Pi (LTE Cat-4/4G/3G/2G/GNSS), SIM7600G-H Waveshare

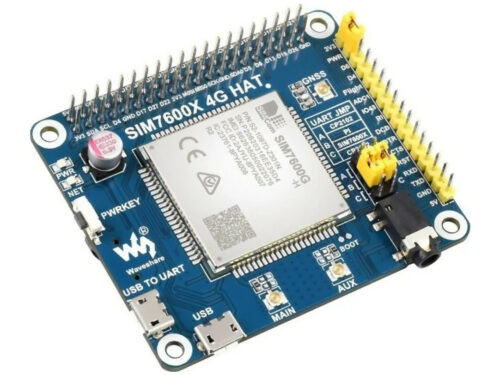

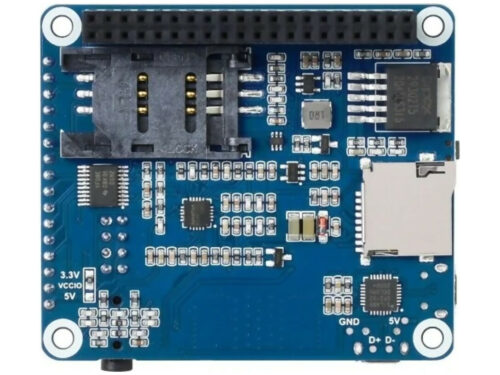

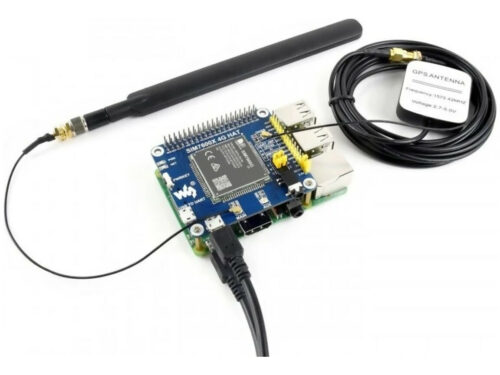

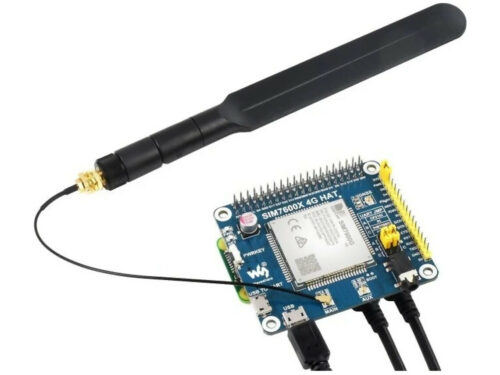

This is a genuine Waveshare SIM7600G-H 4G HAT. It is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer, with low power consumption considering its performance. You can connect this 4G module to a PC for mobile internet access, or attach it onto Raspberry Pi for more embedded activities like making phone calls, sending SMSs, global positioning, etc. Waveshare SKU: 17372 Waveshare Part Number: SIM7600G-H 4G HAT For more information have a look at the Waveshare Wiki page.Waveshare Wiki page:waveshare.com/wiki/SIM7600G-H_4G_HAT Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2x LED indicators, easy to monitor the operating status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE Cat-4 LTE-TDD: B34/B38/B39/B40/B41 3G UMTS/HSDPA/HSPA : B1/B2/B4/B5/B6/B8/B19 2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz GNSS Satellite systems: GPS/Beidou/GLONASS/GALILEO/QZSS GNSS Receiver type: 16-channel, C/A Code Sensitivity: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) Cold starts: -148 dBm Time-To-First-Fix (open air) Cold starts: <35s, Hot starts: <1s SMS Supported types: MT, MO, CB, Text, PDU Storage: USIM card and ME (default) Audio feature: Supports echo cancellation, Supports noise reduction Power supply 5V Operating voltage 5V / 3.3V (configured via jumper) Operating temperature -30°C ~ 80°C Storage temperature -45°C ~ 90°C Dimensions 56.21mm × 65.15mm Package Includes 1 x SIM7600G-H 4G HAT 2 x USB A to micro-B cable (1 long, 1 short) 1 x standoff and mounting kit 2 x uFL to SMA interface cables 1 x GPS antenna (shown in product images) 1 x LTE antenna (shown in product images) [mx_insert-post-ebay slug="ebay-t-default"]           SKU: RPI1-009 Categories: Pi Accessories, Raspberry Pi, Wireless Modules Tags: hdmi, RPi
