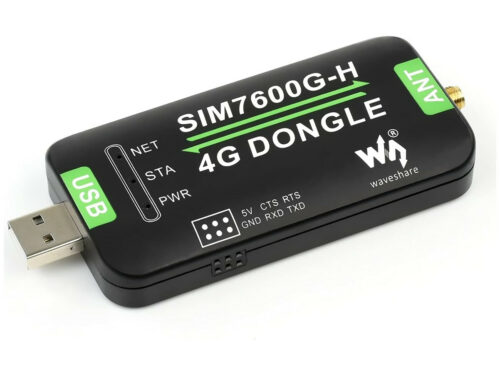

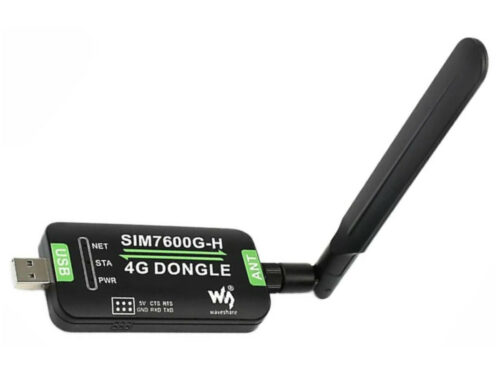

4G SIM7600G-H DONGLE, GNSS Positioning, Global Band Support

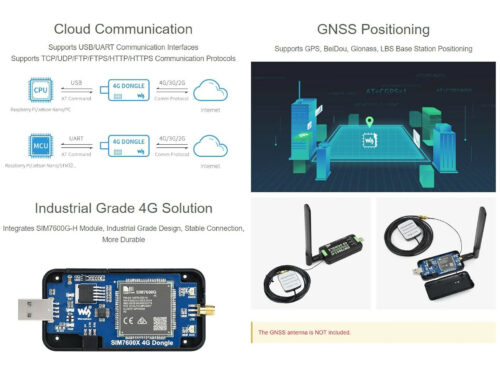

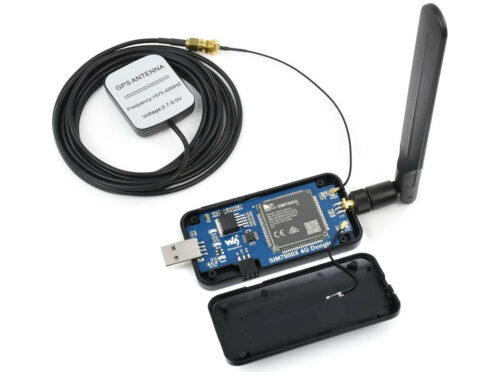

This is a genuine Waveshare 4G SIM7600G-H DONGLE. This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go. Waveshare SKU: 18165Waveshare Part Number: SIM7600G-H 4G DONGLE For more information have a look at the Waveshare Wiki page.Waveshare Wiki page:waveshare.com/wiki/SIM7600G-H_4G_DONGLE Features Supports 2G/3G/4G network connection, global band Driver provided, for operating systems including Windows/Linux Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32 Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included) Nano SIM card slot, supports 1.8V / 3V nano SIM card 3x LED indicators, easy to monitor the working status Portable customized enclosure, mini size, nice looking Baudrate support: 300bps ~ 4Mbps (115200bps by default) Baudrate auto-negotiation: 9600bps ~ 115200bps Specifications LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 3G UMTS/HSDPA/HSPA : B1/B2/B4/B5/B6/B8/B19 2G GSM/GPRS/EDGE: 850/900/1800/1900MHz GNSS Satellite systems: GPS/Beidou/GLONASS/GALILEO/QZSS GNSS Receiver type: 16-channel, C/A Code Data Rate LTE Cat-4 150Mbps(DL) / 50Mbps(UL) Data Rate 3G (HSPA ) 42Mbps(DL) / 5.76Mbps(UL) Data Rate 2G (EDGE) 236.8Kbps(DL) / 236.8Kbps(UL) Data Rate 2G (GPRS) 85.6Kbps(DL) / 85.6Kbps(UL) Operating system: Windows/Linux Network protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS SIM card support: Nano SIM card (1.8V / 3V) Antenna connector: LTE MAIN LTE, GNSS MAIN LTE, AUX LTE, GNSS Power supply: 5V Logic Level:  3.3V Operating temperature -30°C ~ 80°C Storage temperature -45°C ~ 90°C Dimensions: 89.20 × 45.26 × 14.62mm Package Includes 1 x SIM7600G-H 4G DONGLE1 x LTE Antenna1 x USB extension cable1 x 6PIN jumper wire1 x Screws tool kit [mx_insert-post-ebay slug="ebay-t-default"]           SKU: SIM7-600 Categories: Other Wireless, Wireless Modules Tags: GNSS, GSM, SIM7600G
