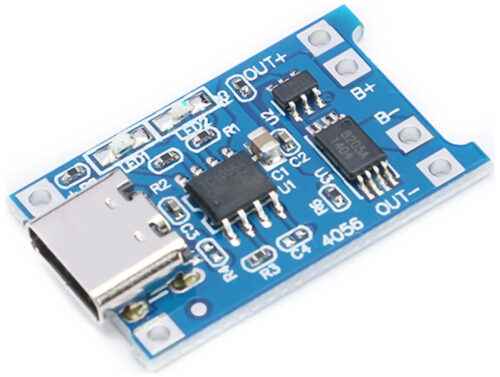

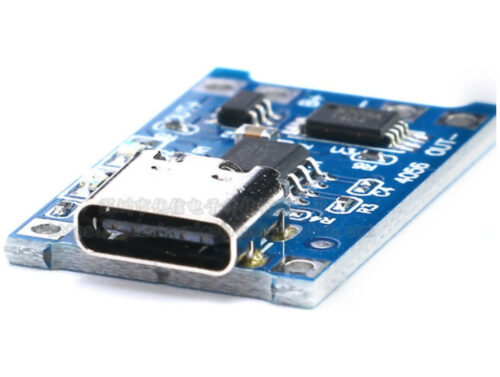

Lithium Battery 1A Charger Module with TP4056 and USB Type-C

This is a single-cell lithium based battery charger & protection module that comes with a USB-C connector. It has a USB-C type connector for charging. It supports charging of Lithium based batteries like LiPo and Li-ion batteries, as their charging and discharging characteristic are similar. The battery is connected to the terminals marked "B " and "B-". The battery output is available via the "OUT " and "OUT-" terminals. The input charging voltage can be supplied via the USB C connector, or the two terminals located next to it. IMPORTANT - This module has a charge current of 1A. DO NOT use to charge a battery with a "Maximum Charge Current" of less than 1A. Most LiPo batteries can be charged to a maximum of 1C. Meaning this charger can not be used with batteries with a capacity of less than 1000mAh. Specifications Single Cell Lithium-based battery charger USB-C connector for power input PCB Terminals for 5V input if USB not used Based on TP4056 Charging IC Red LED to indicate battery is charging Green LED to indicate battery is fully charged Charging voltage limit: 4.2VDC Minimum discharge voltage: 2.5VDC Maximum discharge current: 3A Dimensions: 2.5 x 1.65cm Package Includes 1 x Power Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: CHR1-000 Categories: Chargers, Power Modules Tags: Charger, power, TP4056
