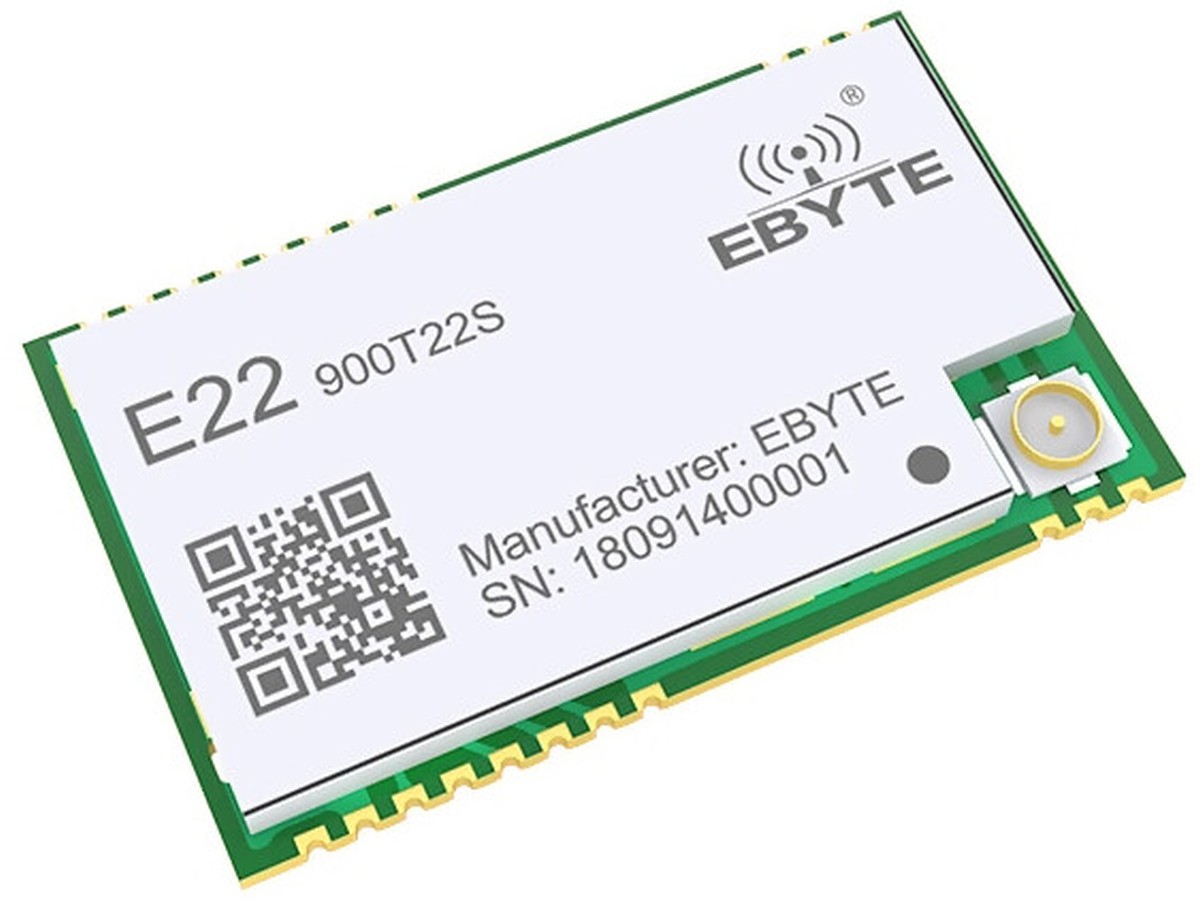

The E22-900T22S is a high quality LoRa wireless module from EBYTE using the SX1262 chip. The E22 series is one of the first wireless modules to adopt Semtech's SX1262 and SX1268 RF chips. This chip provides a variety of modulation methods, such as LoRaTM and traditional GFSK. Its special LoRaTM modulation method increases the communication distance. This module is configured via software for frequencies between 850~930 MHz. The correct antenna has to be used for the programmed frequency. Typical frequencies would be: 868MHz in Europe(EU) 865MHz to 867MHz in India 902MHZ to 928MHz in the US 915MHZ to 928MHz in the Australia 920MHZ to 923MHz in Japan, Malaysia, Singapore, Indonesia These modules are designed and manufactured with quality in mind. High quality capacitors and German Wurth wire wound inductors are used. A temperature compensated crystal oscillator is used for timing, which is critical for low error long distance LoRa communication. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/lora-e22-900t22s_usermanual_v1.4.pdf For additional information, see the manufacturer's product page.product page:www.ebyte.com/en/product-view-news.aspx?id=467 Features IC: SX1262 Frequency: 850.125~930.125 Power: 22dBm (Max. Power 160mW) Distance: 4km Interface: UART Parameters RF Parameter Value Remark Working frequency 850.125~930.125 Transmitting power 22 dBm Max. Power (160mW) Receiving sensitivity -138 dBm - Air data rate 0.3k~62.5kbps - Test distance 5000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m Hardware Parameter Value Remark Size 16 * 26 mm Antenna type IPEX / Stamp hole Communication interface UART Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 3.3 5.0 5.5 V Communication level 3.0 3.3 5.2 V Transmitting current 120 133 146 mA 22dBm（160mW） Receiving current 10 11 12 mA Sleep current 422 469 516 nA Operating temperature -40 20 85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 125 ℃ Pins Pin No. Pin Item Pin Direction Pin Application 1 GND - Ground 2 GND - Ground 3 GND - Ground 4 GND - Ground 5 M0 Input （weak pull-up） Work with M1 to decide 4 working modes of module (not suspended, if not used, grounding). 6 M1 Input （weak pull-up） Work with M0 to decide 4 working modes of module (not suspended, if not used, grounding). 7 RXD Input TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. 8 TXD Output TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output. 9 AUX Output To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (suspending is allowed). 10 VCC - Power supply 2.3V-5.5V DC 11 GND - Ground 12 NC - - 13 GND - Ground 14 NC - - 15 NC - - 16 NC - - 17 NC - - 18 NC - - 19 GND - Ground 20 GND - Ground 21 ANT - Antenna 22 GND - Ground Additional Information Package Includes 1 x Wireless Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: LOR0-912 Categories: LoRa Modules, Wireless Modules Tags: lora, sx1262, wireless
