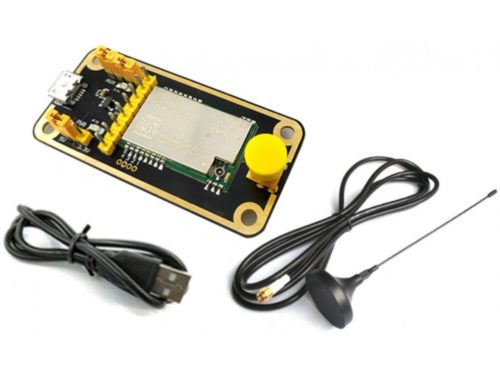

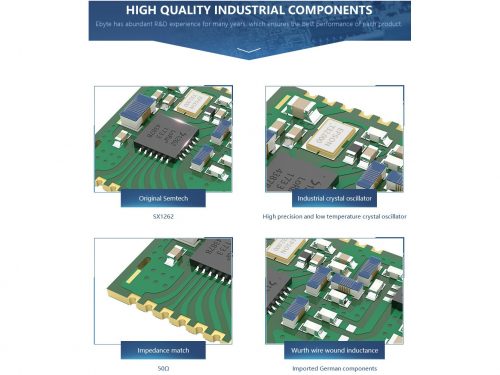

The E22-400TBL-01 is a high quality LoRa wireless development kit from EBYTE, based around the Semtech SX1268 chip. It consists of the E22-400T22S module, with an added USB serial communication circuit, and an USB and SMA connector. The E22 series is one of the first wireless modules to adopt Semtech's SX1262 and SX1268 RF chips. This chip provides a variety of modulation methods, such as LoRaTM and traditional GFSK. Its special LoRaTM modulation method increases the communication distance. This module is configured via software for frequencies between 410~493 MHz. The correct antenna has to be used for the programmed frequency. Typical frequencies would be 433MHz in Europe(EU), and 470MHz, 486MHz and 487MHz(China). These modules are designed and manufactured with quality in mind. High quality capacitors and German Wurth wire wound inductors are used. A temperature compensated crystal oscillator is used for timing, which is critical for low error long distance LoRa communication. To view the PDF Datasheet for the E22-400TBL-01 module, click here.see this page: 99tech.com.au/m/lora-e22-400tbl-01_datasheet_v1.0.pdf To view the PDF Datasheet for the E22-400T22S module, click here.see this page: 99tech.com.au/m/lora-e22-400t22s_usermanual_v1.5.pdf For additional information, see the manufacturer's product page.product page:www.ebyte.com/en/product-view-news.aspx?id=634 Features USB Connector: Micro USB Connector RF Connectors: U.FL (UFL or IPEX) and SMA connector IC: SX1268 Frequency: 410.125~493.125 MHz (Default: 433MHz) Power: 22dBm (Max. Power 160mW) Distance: 4km Interface: UART and USB Parameters RF Parameter Value Remark Working frequency 410.125~493.125 MHz Default: 433MHz Transmitting power 22 dBm Max. Power (160mW) Receiving sensitivity -138 dBm - Air data rate 0.3k~62.5kbps - Test distance 4000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m Hardware Parameter Value Remark Size 58 * 28 mm Antenna type IPEX / Stamp hole Communication interface UART and USB Package SMD Package Includes 1 x Wireless Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: LOR0-414 Categories: LoRa Modules, Wireless Modules Tags: lora, sx1262, wireless
