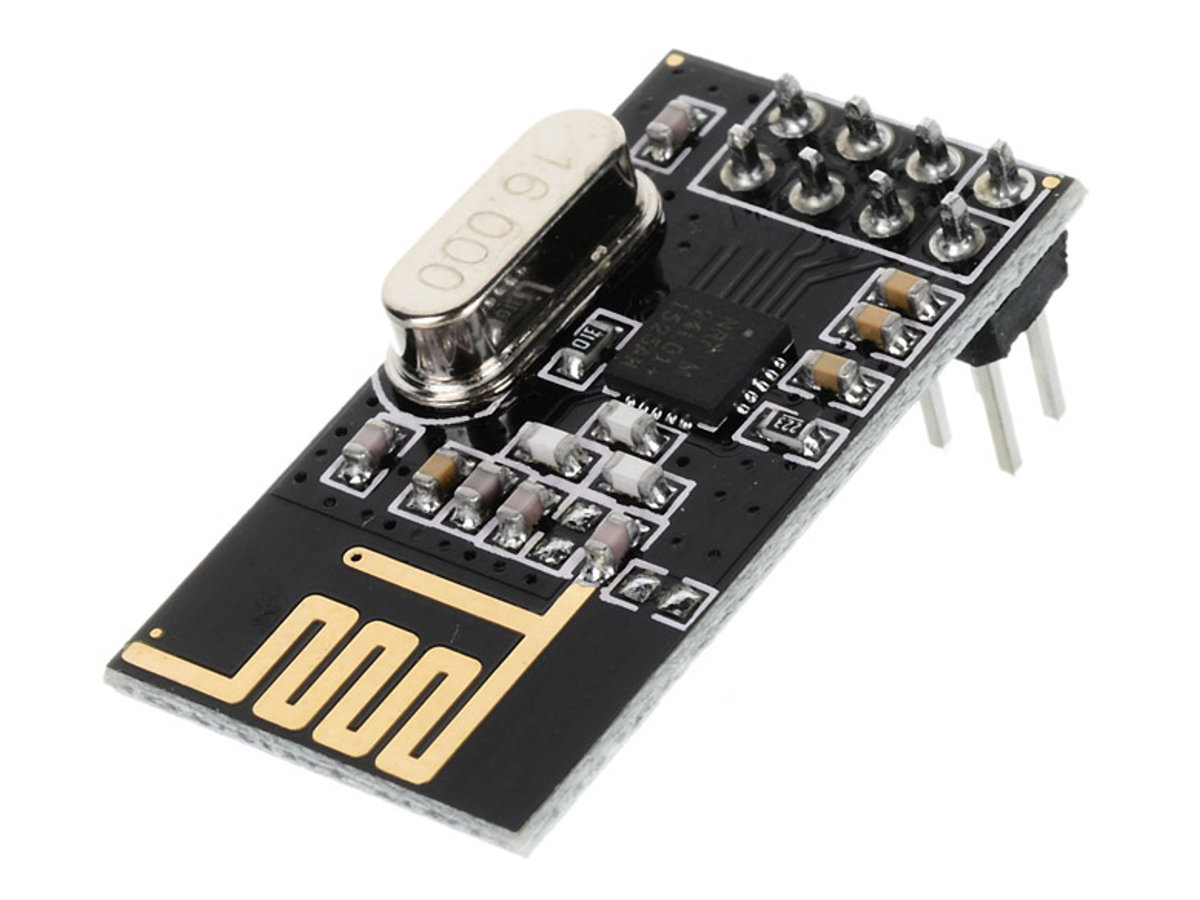

NRF24L01 2.4GHz Wireless Transceiver Module with PCB Antenna

Module with a compatible NRF24L01 transceiver module. This transceiver IC operates in the 2.4GHz band and has many new features! In addition to the features of the old nRF2401A, it adds some extra pipelines, buffers, and an auto-retransmit feature! The nRF24L01 is a highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. nRF24L01 integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller. Please note: This module is assembled with a compatible Nordic NRF24L01 tranceiver module. Nearly all NRF24L01 modules available on eBay, Aliexpress and other sites nowdays use the compatible chip, and not original, although hardly any of them mention it! !!! CAUTION !!! VCC has to be between 3.0V to 3.6V, do not exceed this range, it will destroyed the module! All I/O pins are 5V tolerant, and can be connected directly to port pins of a 5V microcontroller. No lever conversion is required. But, do NOT connect VCC to 5V, it will kill the board! Features 250kbps to 2Mbit Data Rate Auto Acknowledge Auto Re-Transmit Multiceiver - 6 Data Pipes 32 Byte separate TX and RX FIFOs Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels) Specifications Power supply: 1.9~3.6V IO port working voltage: 0~3.3v / 5v Transmitting rate: 7dB Receiving sensitivity: ≤ -90dB Dimensions: 15mm x 29mm Pins While the nRF24L01 IC has 20 pins available, this breakout board simplifies this down to the 8 pins required to get up and running. The pins function as follows: VCC - This pin must NOT exceed 3.6V! Connecting it to 5V will irreversibly damage the board! GND - Ground IRQ - Interrupt pin. This pin is active LOW. MISO - 3.3V-5V tolerant SPI slave output. MOSI - 3.3V-5V tolerant SPI slave input. SCK - 3.3V-5V tolerant SPI clock. CSN - 3.3V-5V tolerant SPI chip select. CE - 3.3V-5V tolerant chip enable. This pin toggles the nRF24L01 IC between transmit (TX), receive (RX), standby, and power-down mode. Connecting to Arduino The I/O pins can be connected directly to the port pins of a 3.3V or 5V Arduino board. But, the VCC pins can NOT exceed 3.6V! Ensure NOT to connect the VCC pin to the 5V supply of the Arduino board! Connect only to the 3.3V of your Arduino board! Additional Resources This page from ElecFreaks has very useful information: http://www.elecfreaks.com/wiki/index.php?title=2.4G_Wireless_nRF24L01p Package Includes 1 x Wireless Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: WRL1-000 Categories: Other Wireless, Wireless Modules Tags: 2.4ghz, wireless
