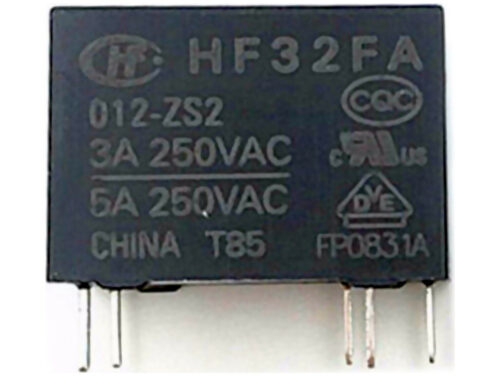

100x Relay HF32FA/012-ZS2 12V 3A
$45
$82.35

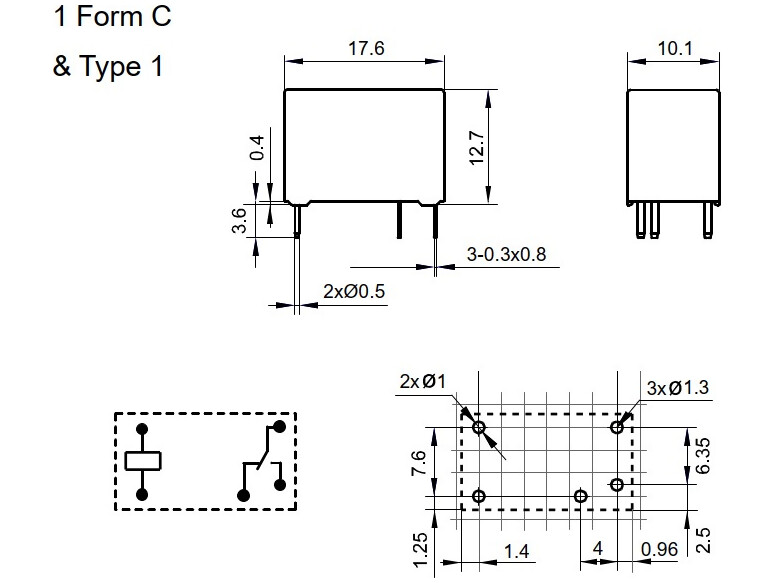

Description The is a high quality 12V, Form C relay from Hongfa. We also sell a similar relay for cheaper, the HF32F/012-ZS3 relay from Honga. It is has lower current capability, is larger, and has a smaller creepage and clearance distance. It also has 25000VAC Dielectric Strength between Coil & Contacts. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/rly-hf32fa-012-zs2_datasheet.pdf Specifications Contact Arrangement SPDT Contact Form 1 Form C DC Coil Voltage (V) 12 Maximum Pick-Up Voltage 9VDC Minimum Dropout Voltage 0.6VDC Maximum AC Switching Voltage (V) 250 Maximum DC Switching Voltage (V) 30 Maximum Switching Current (A) 5 Dielectric Strength between Coil & Contacts 5000 VAC 1min Relay Construction Non-Latching Mounting Through Hole Termination Style PC Pin Size (L x W x H) 17.6 x 10.1 x 12.7 Number of Terminals 5 Weight 4.6g Minimum Operating Temperature (°C) -40 Maximum Operating Temperature (°C) 85 [mx_insert-post-ebay slug="ebay-t-default" no-class="mxPakInc, mxEbayTmpl"] Package Includes 100 x Relays (in original factory box) [mx_insert-post-ebay slug="ebay-t-default"] SKU: 100*RLY0-121 Category: Other Tag: relay
