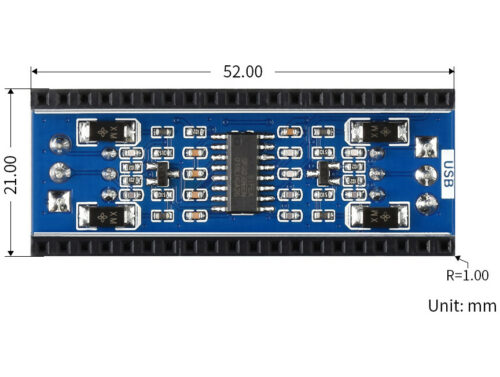

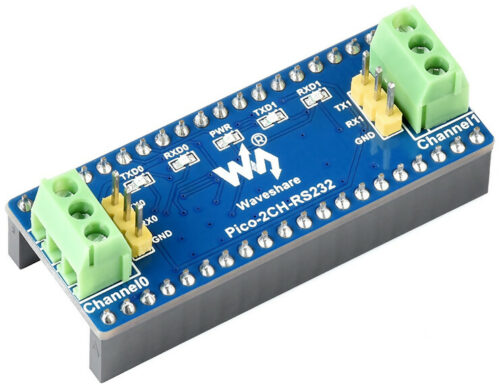

This is a dual RS232 expansion board designed for Raspberry Pi Pico. It incorporates the RS232 transceiver SP3232EEN. Waveshare SKU: 19979Waveshare Part Number: Pico-2CH-RS232 IMPORTANT: Ensure to mount correct way round on Pico board! When connecting your Pico, please pay attention to the direction of connection. The direction can be judged by observing the USB screen printing end of the module and the USB interface end of the Pico. NOTE: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. We also sell many other Rapsberry Pi Pico related boards, RP2040 microcontroller based board. Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Using UART bus, easily converting UART to RS232, or vice versa Comes with development resources and manual (Raspberry Pi Pico C/C and MicroPython examples) Specifications RS232 transceiver: SP3232EEN Communication interface: UART Data rate: 300 ~ 921600 bps Operating voltage: 3.3V / 5V Dimensions: 52mm × 21mm Specs and Docs PDF SchematicsPDF Schematics:99tech.com.au/m/rpi-pico-x-dual-rs232_schematic.pdf Wiki page with lots of additional information and sample codeWiki page with lots of additional information and sample code:waveshare.com/wiki/Pico-2CH-RS232 Package Includes 1 x Pico-2CH-RS2321 x DB9 to 3PIN adapter cable [mx_insert-post-ebay slug="ebay-t-default"] SKU: RPI1-003 Categories: Pi Hats & Plates, Raspberry Pi Tags: RPi Pico, rs232
