LCD 1.14" Color Display Expansion Board for Raspberry Pi Pico
$40.58
$64.52

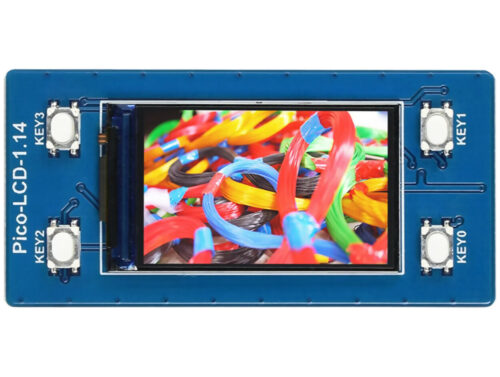

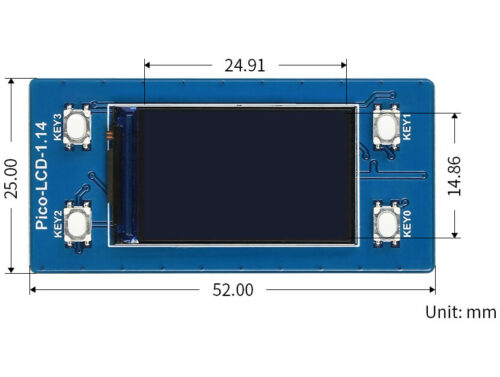

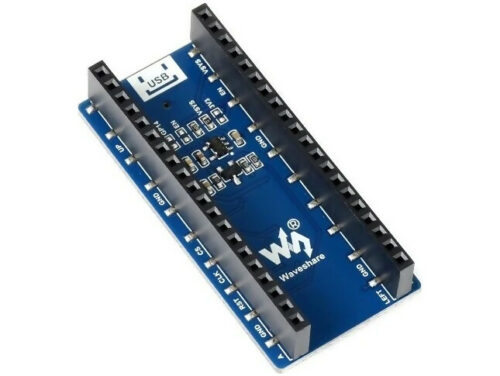

This is a 1.14Inch colour display module, using SPI and designed for the Raspberry Pi Pico. Waveshare SKU: 19604Waveshare Part Number: Pico-LCD-1.14 For more information have a look at the Waveshare Wiki.Waveshare Wiki:waveshare.com/wiki/Pico-LCD-1.14 We also sell many other Rapsberry Pi Pico related boards, RP2040 microcontroller based board. Features 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect SPI interface, requires minimal IO pins 1x joystick and 2x user buttons for easy interacting Comes with development online resources and manual (Raspberry Pi Pico C/C and MicroPython examples) Raspberry Pi Pico Not Included - you will need a Pico with male header pins. Specifications Resolution: 240×135 Pixels Communication Interface: 4-wire Spi Display Size: 24.91 × 14.86mm Display Panel: IPS Pixel Size: 0.1101 × 0.1035mm Driver: St7789 Operating Voltage: 2.6 ~ 5.5v Dimensions: 52mm × 25mm Package Includes 1 x Raspberry Pi Pico LCD Expansion Board [mx_insert-post-ebay slug="ebay-t-default"] SKU: RPI1-005 Categories: Pi Hats & Plates, Raspberry Pi Tags: lcd, RPi Pico
