LCD 1.3" Color Display Expansion Board for Raspberry Pi Pico
$35.76
$46.13

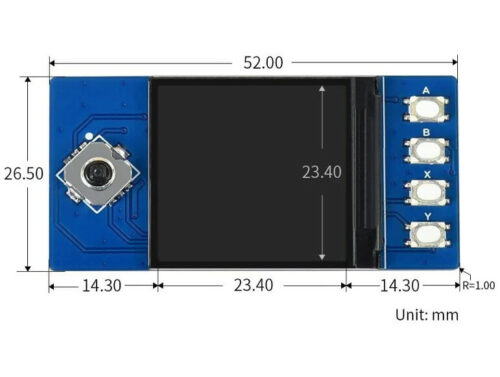

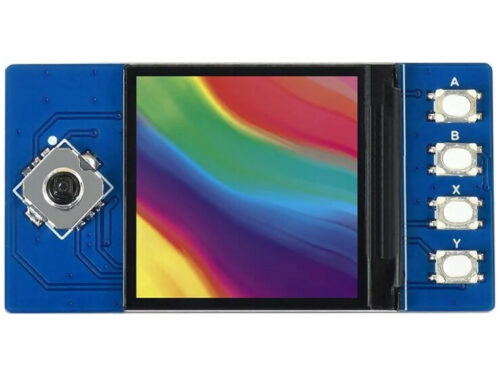

This is a 1.3" IPS LCD expansion board for the Raspberry Pi Pico, with 4 buttons and a mini joystick Waveshare SKU: 19650 Waveshare Part Number: Pico-LCD-1.3 For more information have a look at the Waveshare Wiki page.Waveshare Wiki page:waveshare.com/wiki/Pico-LCD-1.3 We also sell many other Rapsberry Pi Pico related boards, RP2040 microcontroller based board. Features Compatible with Raspberry Pi Pico 1.3" IPS LCD 240x240 resolution 65K RGB colours 4x user-programmable buttons 1x Joystick Communicates via SPI Raspberry Pi Pico Not Included - you will need a Pico with male header pins. Specifications Resolution: 240×240 Pixels Communication Interface: 4-wire Spi Display Panel: IPS Driver: St7789 Display Size: 23.40mm x 23.40mm Pixel Size: 0.0975mm x 0.0975mm Dimensions: 52mm × 26.4mm Operating Voltage: 2.6 ~ 5.5v Package Includes 1 x Raspberry Pi Pico LCD Expansion Board [mx_insert-post-ebay slug="ebay-t-default"] SKU: RPI1-006 Categories: Pi Hats & Plates, Raspberry Pi Tags: lcd, RPi Pico
