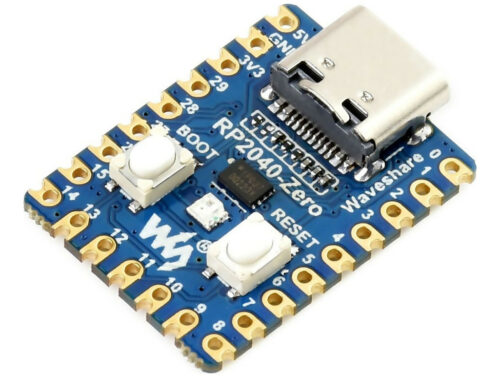

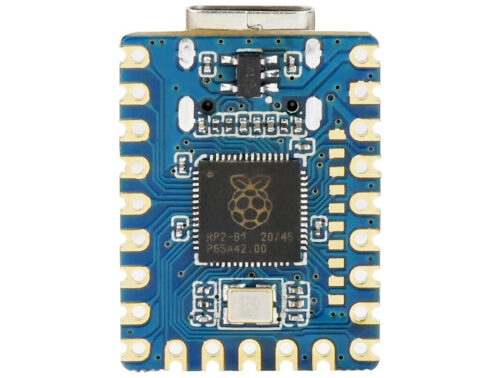

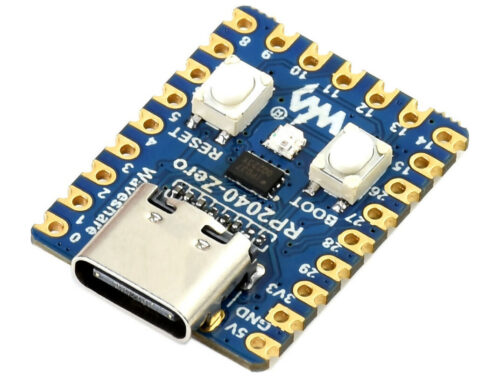

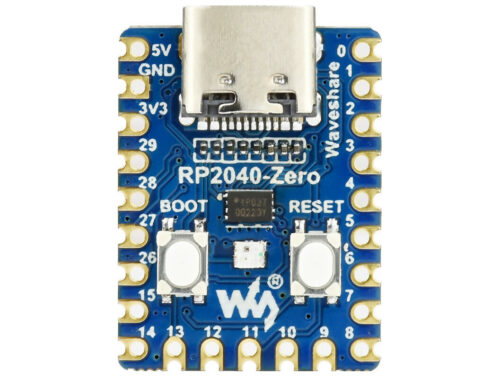

RP2040-Zero Module with RP2040, 2MB Flash, USB Type C

RP2040-Zero is a tiny, fast, and versatile board built using RP2040, the flagship microcontroller chip designed by Raspberry Pi in the UK. From light displays and IoT devices to signage and manufacturing processes, RP2040-Zero gives you the power to control countless home, hobby, and industrial operations. Programmable in C, C and MicroPython, RP2040-Zero is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file. More experienced users can take advantage of RP2040-Zero's rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support. The RP2040 is designed by Raspberry Pi, and features a dual-core Arm Cortex-M0 processor with 264kB internal RAM and support for up to 16MB of off-chip flash(this version only has 2MB of Flash). A wide range of flexible I/O options includes I2C, SPI, and - uniquely - Programmable I/O (PIO). These support endless possible applications for this small and affordable package. We also sell many other Rapsberry Pi Pico related boards, RP2040 microcontroller based board. Specifications RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0 processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory USB-C connector, keeps it up to date, easier to use Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 29 × multi-function GPIO pins (20× via edge pinout, others via solder points) 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip Dimensions 23.5 x 18mm Specs and Docs PDF SchematicsPDF Schematics:99tech.com.au/m/rp2040-zero_schematic.pdf Wiki page with lots of additional information and sample codeWiki page with lots of additional information and sample code:waveshare.com/wiki/RP2040-Zero Package Includes 1 x Raspberry Pi Pico module [mx_insert-post-ebay slug="ebay-t-default"] SKU: RPI2-005 Categories: Pi Boards, Raspberry Pi Tags: rp2040, RPi Pico
