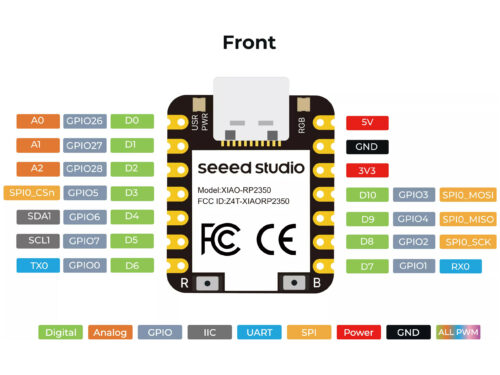

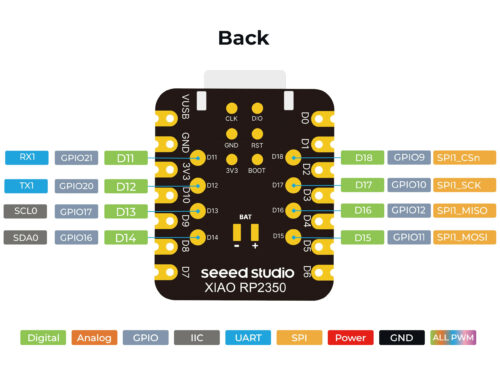

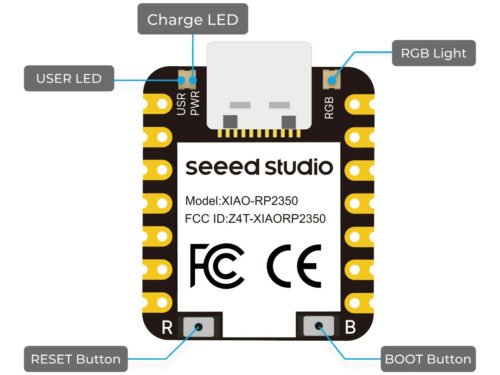

Seeed Studio XIAO RP2350 is an Arduino-compatible microcontroller featuring the Raspberry Pi RP2350 chip. The XIAO RP2350 packs the power of the Raspberry Pi RP2350 (dual Cortex-M33 cores running at 150MHz with FPU, enhanced security and encryption) into the classic XIAO form factor. Measuring just 21x17.8mm, it features 19 multifunction GPIOs, an RGB LED, and a Battery Management System with ultra-low power consumption of 27μA, battery power supply, and direct battery voltage measurement. Thanks to the XIAO ecosystem, the XIAO RP2350 is compatible with a wide range of add-ons, including displays, LED matrix, Grove modules, CAN Bus, Vision AI sensors, and mmWave sensors. With native support for MicroPython, C, and C , the XIAO RP2350 is perfect for developers of all levels looking to create compact, battery-powered applications for smart control, wearables, DIY keyboards, and more. For details on Seeed Studio Wiki page, click here.see this page: wiki.seeedstudio.com/getting-started-xiao-rp2350 Features Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring symmetric dual Arm Cortex-M33 @ 150MHz with FPU. Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security. Software Support: Compatible with C/C and MicroPython, ensuring easy project development and prototyping. Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM). Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications. Efficient Power Design: Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS). Compact Thumb-Sized Design: Measuring 21 x 17.8mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications. Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production. USB Type-C Circuit Operating Voltage: 3.3V Supply Voltage(via USB): 5V Specifications CPU Dual Cortex-M33 @ 150MHz, FPU Flash Memory 2MB SRAM 520KB Digital I/O Pins 19 Analog I/O Pins 3 PWM Pins 19 I2C interface 2 SPI interface 2 UART interface 2 Power supply and downloading interface Type-C Power 3.3V/5V DC Dimensions 21×17.8×3.5mm Package Includes 1 x Seeed XIAO RP2350 module [mx_insert-post-ebay slug="ebay-t-default"] SKU: XIA0-016 Categories: Pi Boards, Raspberry Pi Tags: raspberry, rp2350, seeed, xiao
