GY-6500 MPU6500 6-Axis Sensor - Accelerometer, Gyroscope, Motion
$53.1
$75.4

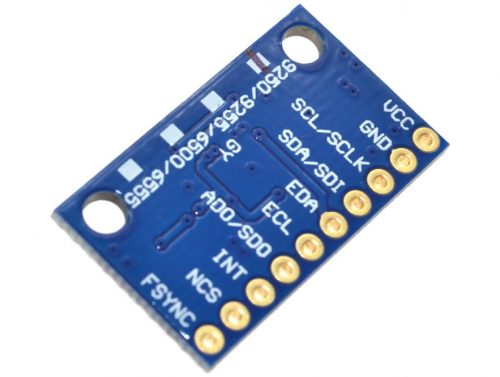

The GY-6500 module uses the MPU-6500, with a three-axis gyroscope and three-axis acceleration. It has a standard 2.54mm, 10 pin connector. A loose 10 pin header is supplied with the board. Specifications: Communication: Standard IIC/SPI Gyro range: ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g Magnetic field range: ± 4800uT Typical weight: 2g Power supply: 3-5V (internal low dropout regulator) Module size: 15mm * 25mm Package Includes 1 x GY-6500 Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: SEN5-004 Category: Motion & IMU Sensors Tags: accelerometer, gyroscope, motion
