ESP32 Development Board, ESP32-WROOM, WiFi, Bluetooth, USB Type-C, PCB Antenna, 30 Pins

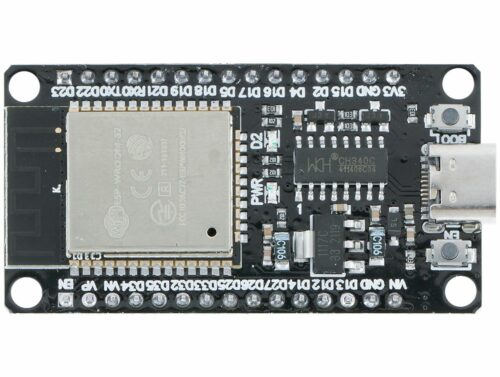

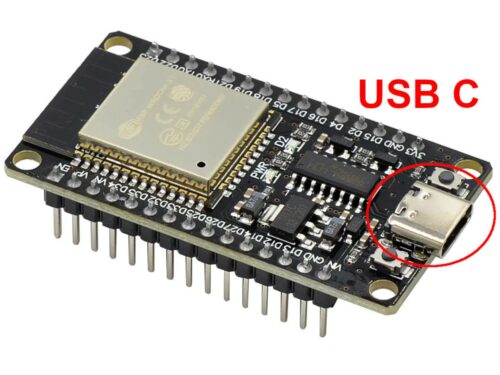

This board is based on the popular Espressif ESP32 chip, and has WiFi & Bluetooth. It is assembled with an ESP-WROOM-32 module. It has 30 pins(2 rows of 15 each), and a USB Type-C connector. The USB to Serial converter is implemented with the CH340 chip. It also has the higher power SOT-223 linear regulator, which has a higher power rating than the SOT-23 type used on some other modules. Software can be developed using many different platforms, including Arduino. Features 2.4 GHz Wi-Fi Bluetooth 4 MByte(32Mbit) SPI Flash PCB Antenna Powered via USB Type-C Connector, or via pin header Reset and User/Firmware buttons User and Power LED USB Type-C connector Virtual USB port provided by CH340 for debugging and firmware upgrade Assembled with ESP-WROOM-32 module Compact size of 51.5 x 28.5mm Supply Voltage: 5V Package Includes 1 x ESP32 Development board [mx_insert-post-ebay slug="ebay-t-default"] SKU: ESP3-033 Categories: ESP32 & ESP8266, WiFi Modules Tags: bluetooth, esp32, wifi, wireless
