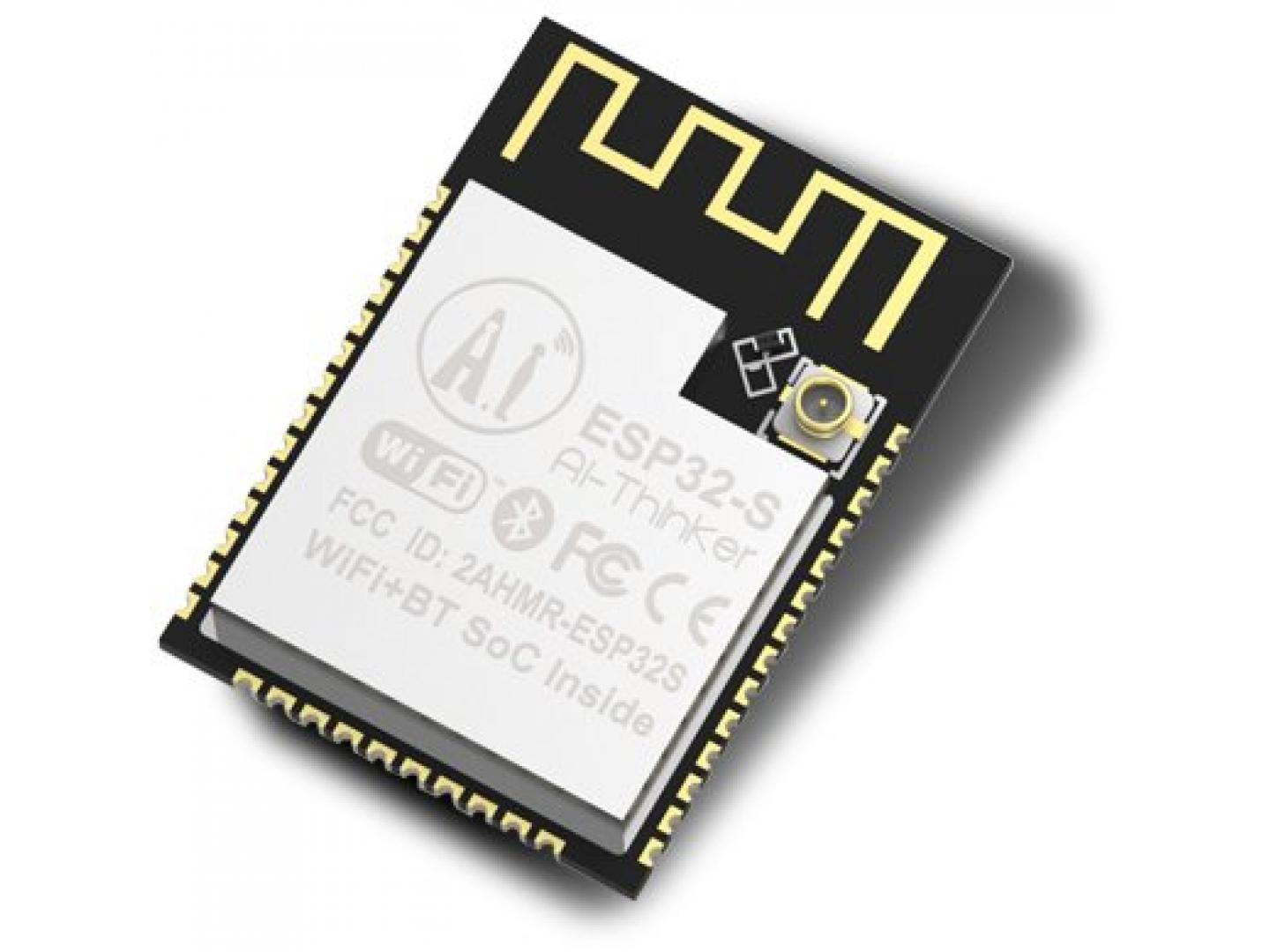

ESP32-S WiFi & Bluetooth Module with ESP32 and PCB/IPEX(u.fl) Antenna

This is an original Ai-Thinker ESP32-S module. It has an identical footprint to the ESP-WROOM-32(ESP-32S) module, but has an additional IPEX(u.fl) connector. The ESP32-S is a WiFi and Bluetooth module using the popular ESPRESSIF ESP32 chip. The pads on the module have a 1.27mm. The ESP32 chip integrates a dual-core processor with 448 KByte ROM, 520 KByte SRAM, 16 KByte SRAM in RTC, 802.11 b/g/n/e/I Wi-Fi, Bluetooth v4.2 BR/EDR & BLE, clocks & Times, abundant peripheral Interfaces and security mechanism. Software can be developed using many different platforms, including Arduino. It is designed for Generic low power IoT sensor hub, loggers, video steaming for camera, Wi-Fi & Bluetooth enabled devices, Home automation and mesh network applications, aimed at makers, hardware engineers, software engineers and solution provides. The ESP32 is the most integrated solution for Wi-Fi Bluetooth applications in the industry with less than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low noise receive amplifier, filters, and power management modules. As such, the entire solution occupies minimal Printed Circuit Board (PCB) area. For additional information on the ESP32 see our wiki page.The product datasheet can be downloaded here. For additional information on the ESP32, see our wiki page:wiki.modtronix.com/doku.php?id=tutorials:wireless:esp:esp32:esp32_additional_information The product datasheet can be downloaded from:www.99tech.com.au/m/esp32-s-ai_datasheet.pdf Features CPU and Memory: Xtensa® 32-bit LX6 Dua-core processor, up to 600 DMIPS 4 MByte SPI Flash 448 KByte ROM 520 KByte SRAM 16 KByte SRAM in RTC On board 3DBi PCB antenna Compact size of 18mm x 25.5mm x 3.1mm  (±0.2mm)Supply Voltage: 2.2V~3.6V WiFi 802.11 b/g/n/e/i 802.11 n (2.4 GHz), up to 150 Mbps 802.11 e: QoS for wireless multimedia technology. WMM-PS, UAPSD MPDU and A-MSDU aggregation Block ACK Fragmentation and Defragmentation Automatic Beacon monitoring/scanning 802.11 i security features: pre-authentication and TSN Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management UMA compliant and certified Antenna diversity and selection Bluetooth Compliant with Bluetooth v4.2 BR/EDR and BLE specification Class-1, class-2 and class-3 transmitter without external power amplifier Enhanced power control 10 dBm transmitting power NZIF receiver with -98 dBm sensitivity Adaptive Frequency Hopping (AFH) Standard HCI based on SDIO/SPI/UART ? High speed UART HCI, up to 4 Mbps BT 4.2 controller and host stack Service Discover Protocol (SDP) General Access Profile (GAP) Security Manage Protocol (SMP) Bluetooth Low Energy (BLE) ATT/GATT HID All GATT-based profile supported SPP-Like GATT-based profile BLE Beacon A2DP/AVRCP/SPP, HSP/HFP, RFCOMM CVSD and SBC for audio codec Bluetooth Piconet and Scatternet [mx_insert-post-ebay slug="ebay_esp32_related"] Package Includes 1 x ESP32-S Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: ESP3-007 Categories: ESP32 & ESP8266, WiFi Modules Tags: bluetooth, esp32, wifi, wireless
