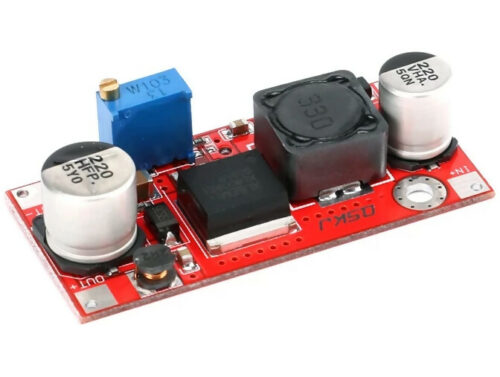

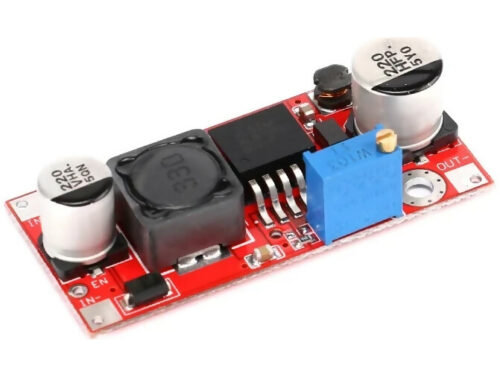

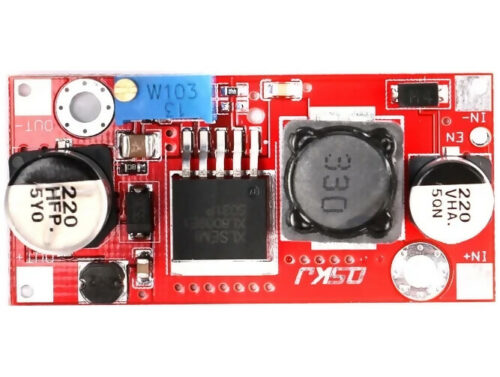

XL6009 Step Up Adjustable DC-DC Power Module, 15W, 2.5A, Low Noise, Enable Pin

The XL6009 is a high-performance 2.5A adjustable boost (buck boost) module, with a low ripple current and noise. See below for advantages of this module, compared to the common, very low cost XL6009 modules. The module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, far more than the first generation of technology performance LM2577. The XL6009 boost module features lower Cost and superior performance. IMPORTANT - This module does NOT have short circuit or Input reverse polarity protection! Install a fuse or protection input circuit if short circuit protection is required. Add a reverse protection diode if Input reverse polarity protection is required. Compared to the very low cost XL6009 modules, this module has the following advantages: New & Original XL6009 chip, most cheap modules do not have original XL6009 chips Uses high quality SMD electrolytic capacitors Has additional LC filter circuit, ensuring very low output ripple and noise Imported TDK inductors with low heat and noise Has additional Input and output MLCC Multilayer Ceramic Capacitors for low noise Has an enable pin not available on the low cost modules Specifications Controller: XL6009 Operating frequency: 400khz Load regulation: ± 0.5% Voltage regulation: ± 0.5% Enable Control Port: On = 1.4V-VIN, Off = 0-0.8V, Off by default Short circuit protection: None (Please install fuse or protection circuit input) Input reverse polarity protection: None, please with our reverse protection diode board or in the input series. Mounting Holes: 3mm Size LxWxH: 49 x 23.4 x 11.4 mm (excluding potentiometer) Input Voltage: 5V to 32V Output Voltage: 5V to 35V Adjustable Input Current: 4A Max Output Current: 2.5A Max Output power: 15W with natural cooling, or 25W with heat sink 25W Package Includes 1 x Power Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: PWR0-001 Category: Power Modules Tags: power, XL6009
