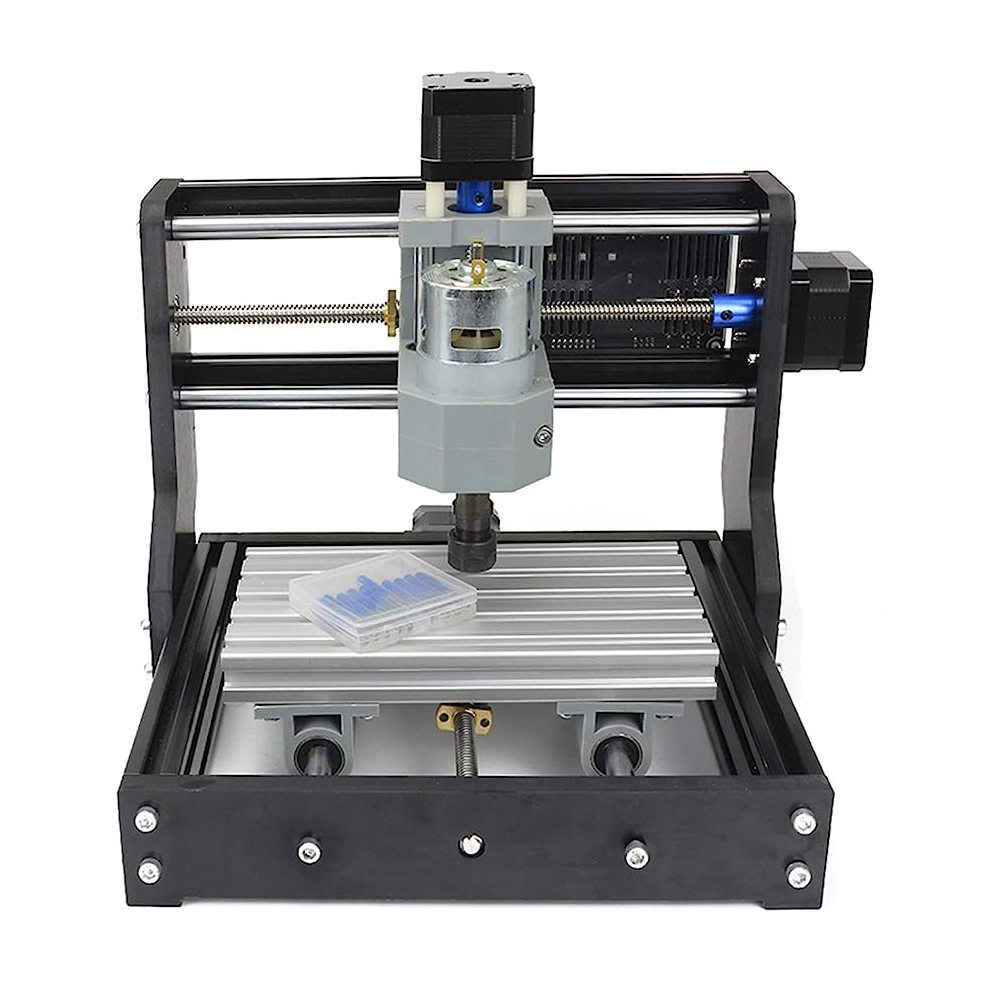

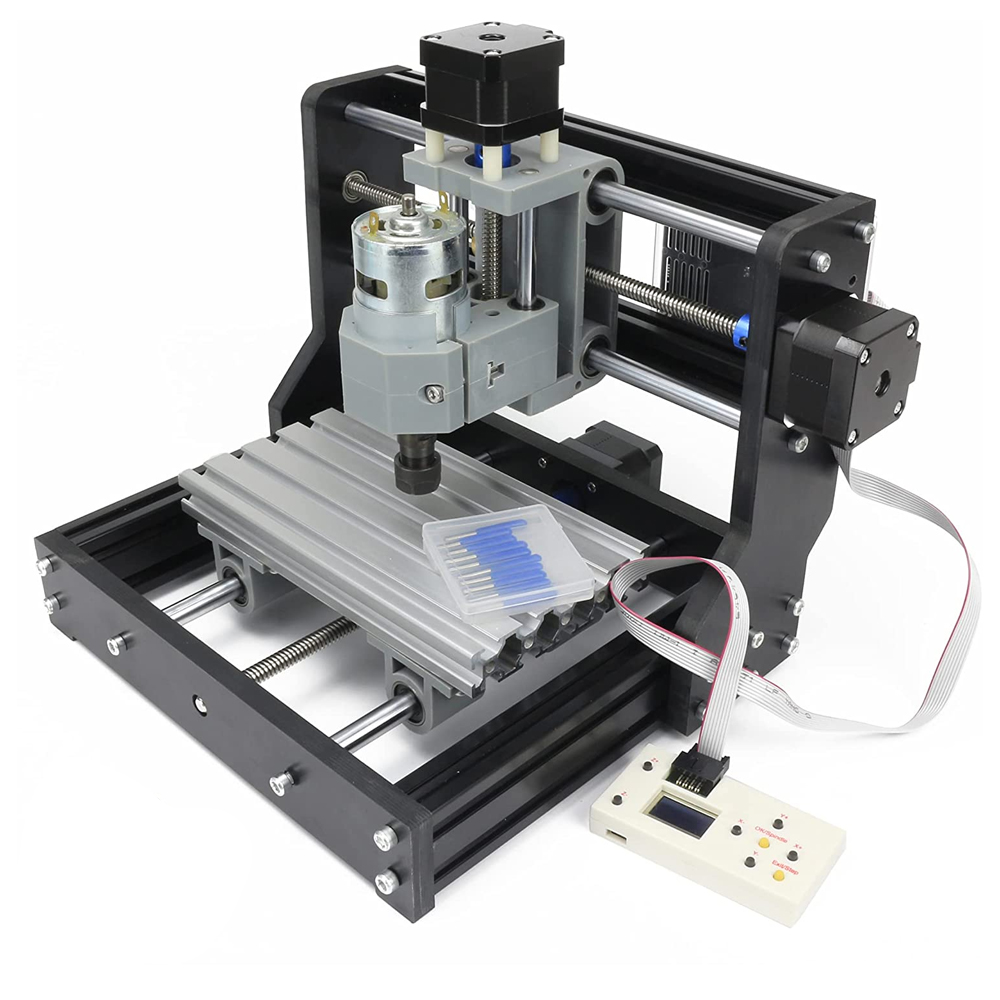

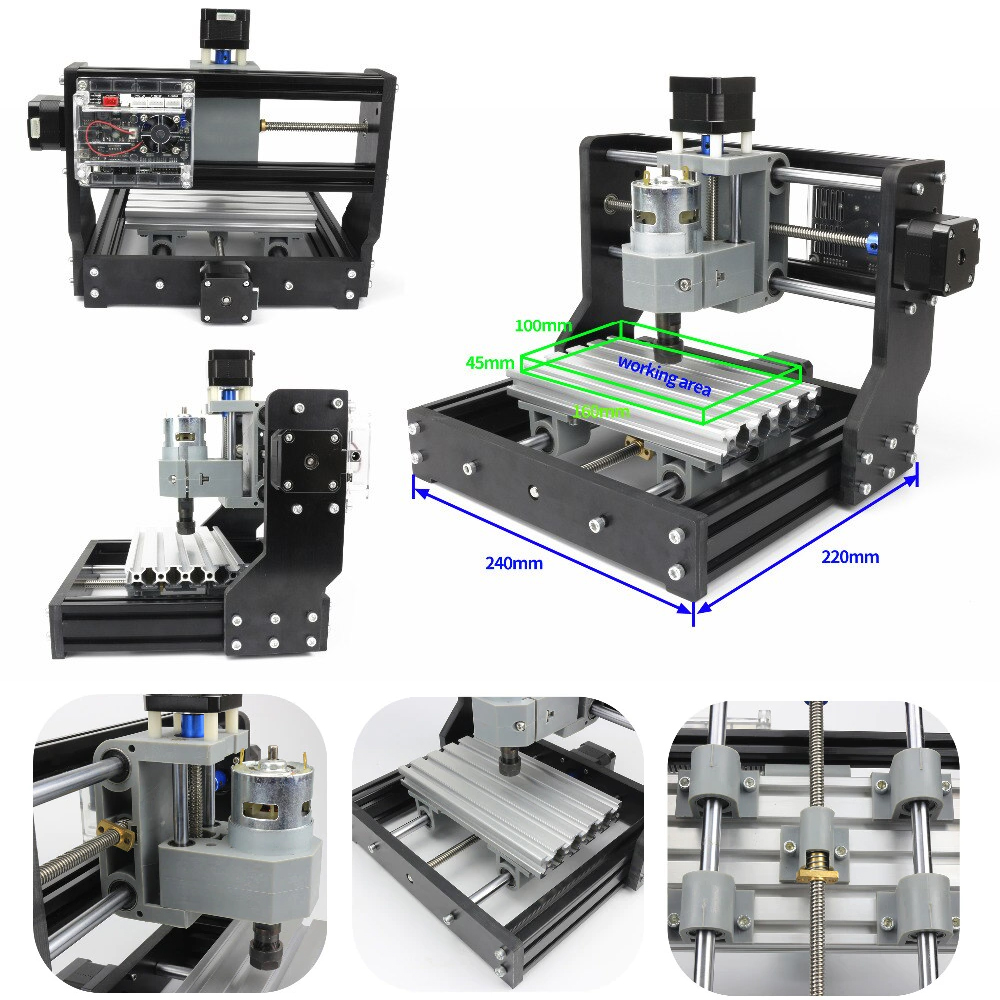

Specifications: Control software: GRBL control Frame size: 26*24*22cm (not including the motor protruding part) Working range: 16*10*3cm Weight: 5.5KG Screw rod: T8 screw rod, lead 4mm,double copper nut to eliminate backlash Stepper motor: 42 stepper motor 1.3A 0.25N.M Spindle: 775 spindle motor (12-36V) 24V 10000r/min Chuck specification: ER11 3.175MM(0-7mm can be equipped) Body material: aluminum bakelite com
