30cm x 18cm x 10cm
$66.19
$111.85

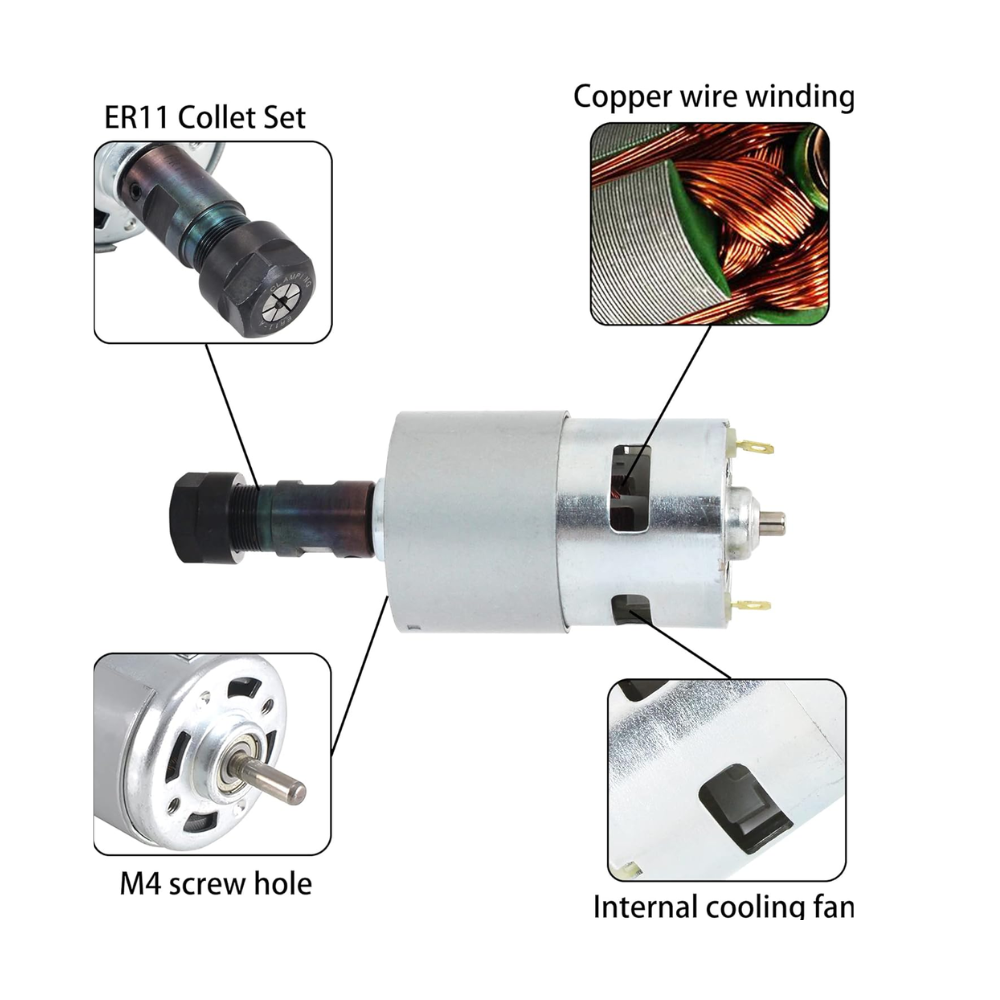

Specification: Working area: 30x18x4.5cm(approx.11.81×7.08×1.77 inches) Frame size :42x35x27cm(approximately 16.53×13.78×10.63 inches) Spindle: 775 spindle motor (12-36V) 24V:10000r/min Processing thickness:4.5cm (height 6.4cm) Material: Aluminum Alloy Screw rod: T8 screw rod, lead 4mm, double copper nut backlash Spindle Chuck: ER11 Collet Step motor: nema17 42 stepper motor 1.3A,0.25N.m Power supply : 24V 5.6A power adapter (input voltage 110-240V) Support System: Windows XP / Win 7 / Win 8 / Win 10. Linux; Connection: PC-USB connection Software: GRBL controller Supporting file: G-code (.nc/.txt/.tape/.gcode) Processing accuracy: About 0.2mm
Cnc Diy Kit
