Round Rocker Switch 2 Pin ON-OFF Black Button Black Housing

$31.47 $54.44

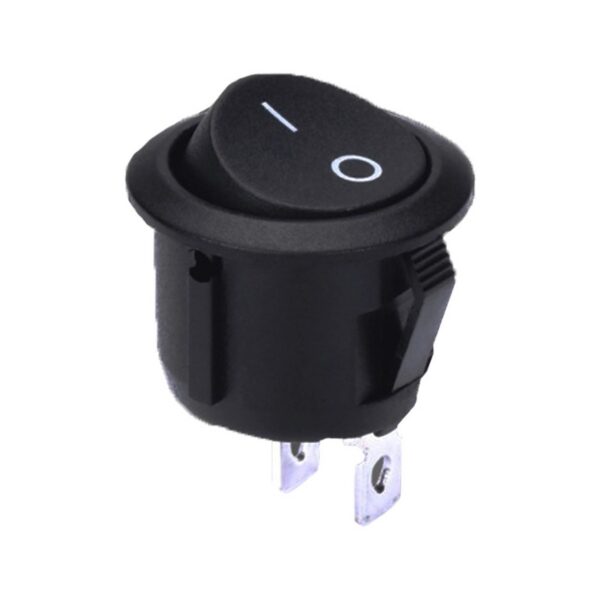

DescriptionDescriptionThe KCD1-5-101 is a 2P ON-OFF round rocker switch without a lamp, featuring a durable nylon 66 housing and brass terminals plated with silver. It has a rating of 10A 125VAC/6A 250VAC and is available in black, white, grey, red, and transparent button colors. It has a contact resistance of 35mOhm max, an insulation resistance of 100mOhm min (500VDC), and a dielectric strength of 1500VAC 1 minute. This switch has a mechanical life of >= 100,000 cycles and is certified by CE, CQC, and SGS. It is available for both OEM and ODM applications.Technical SpecificationsHousing: Nylon 66Color: BlackContact Configuration: SPSTSwitch Operation: ON-OFFCurrent/Voltage Rating: 10A 125VAC/6A 250VACOperating Temperature: -25C~ 85CContact Resistance: < =30mOhmInsulation Resistance: > =100mOhm (500VDC)Electrical Life: > =10,000 CyclesDielectric Strength: 1500VAC 1 minuteMechanical Life: > =100,000 CyclesNumber of Pins: 2
