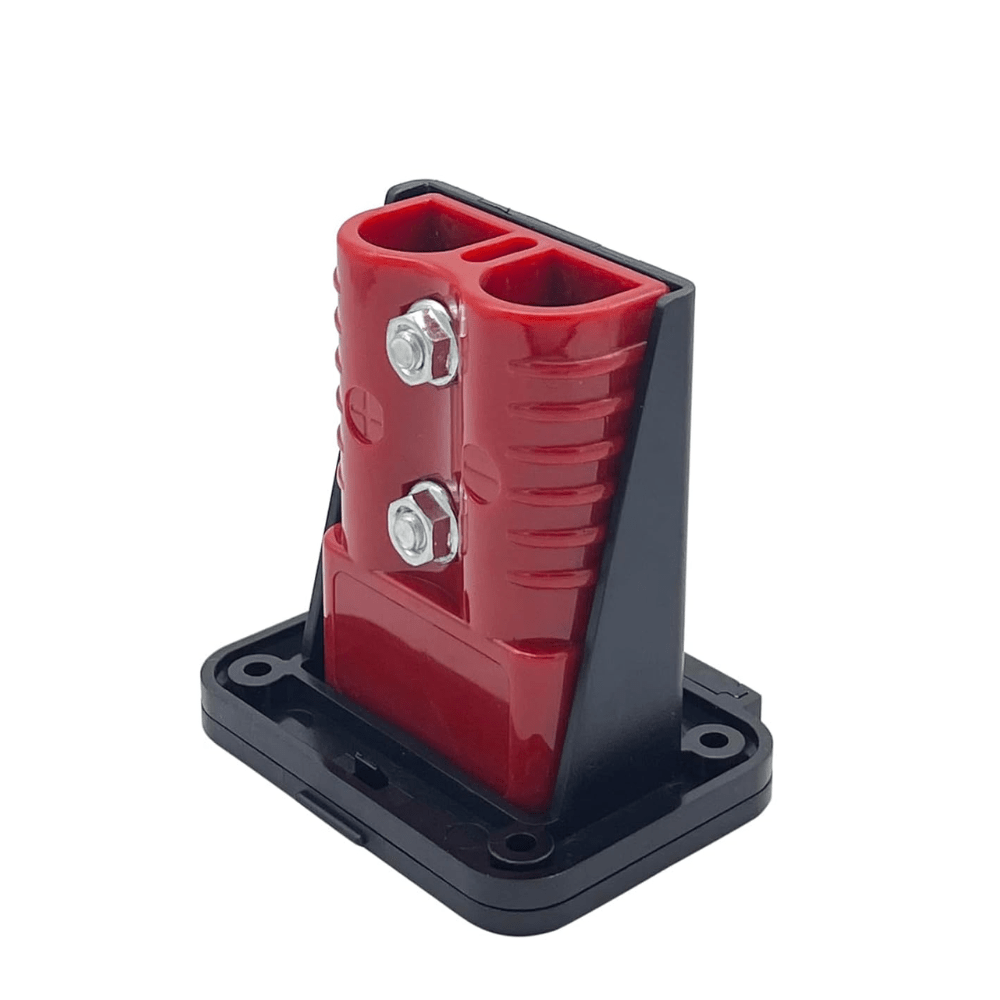

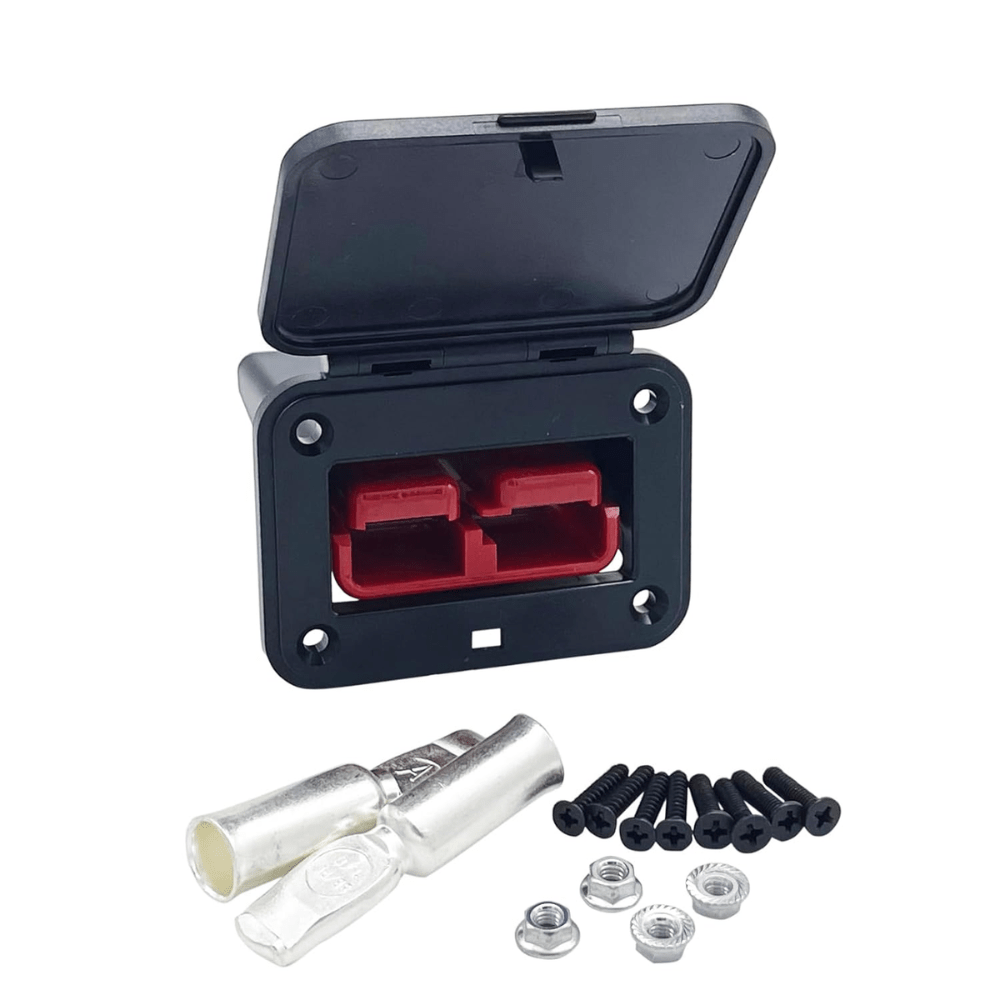

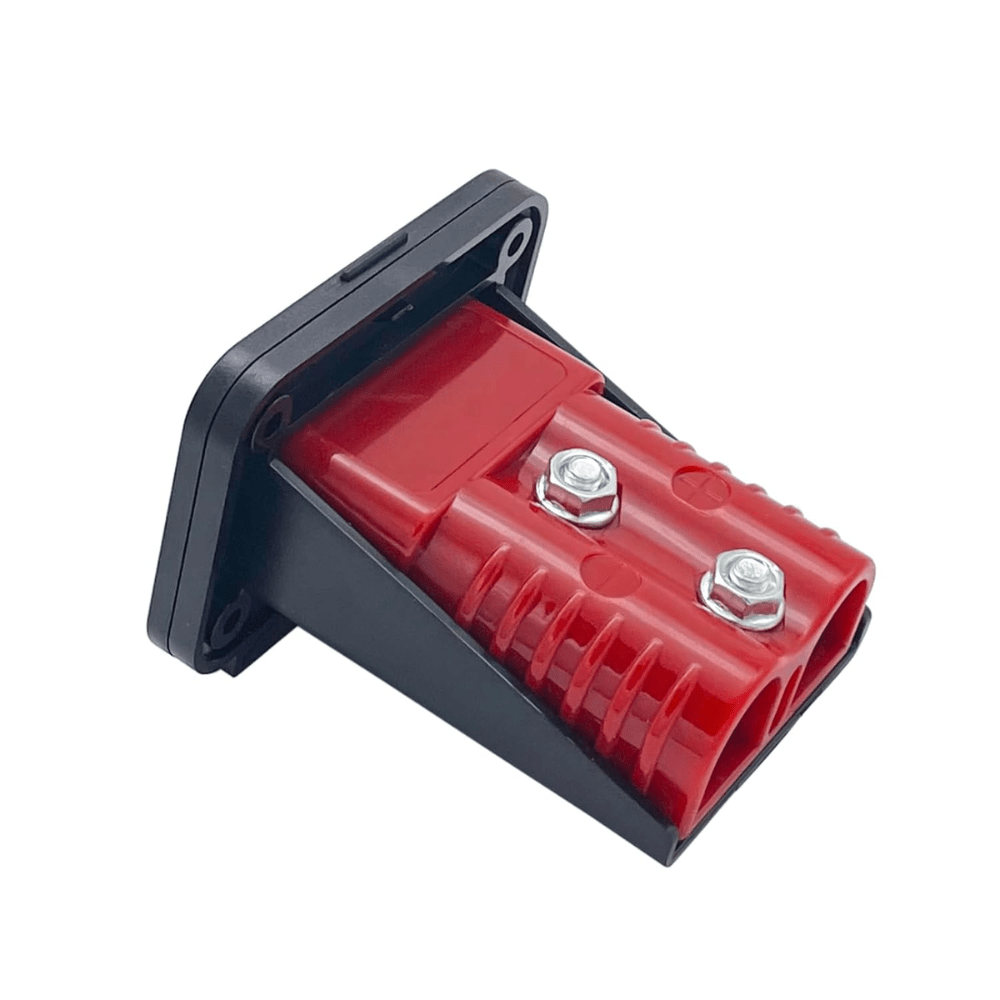

120A Anderson Connector with Pins with Flush Mount Bracket Panel Cover for Caravan Camper

Specifications: Rated Current: 120 A DC Rated Voltage: Up to 600 V AC/DC (suitable for 12–24 V or higher systems) Cable/Wire Size: #2–#8 AWG (~8–34 mm²), depending on cable type Connector Type: Anderson SB120 compatible Housing Material: ABS or polycarbonate (durable, UV-resistant, flame-retardant) Mounting Type: Flush mount into panel or wall Panel Face Dimensions: ~80 mm (W) × 50 mm (H) (may vary by model) Panel Cut-Out Dimensions: Check specific model (typically ~60–65 mm × 40 mm) Depth Behind Panel: ~50–60 mm Operating Temperature Range: –20 °C to 105 °C Protection Features: Weatherproof cover/lid to prevent dust, moisture, and UV damage Applications: Caravans, campers, boats, trailers, off-road vehicles, 4WDs Additional Features: Keyed design to prevent incorrect connections, some models include strain relief clamps
