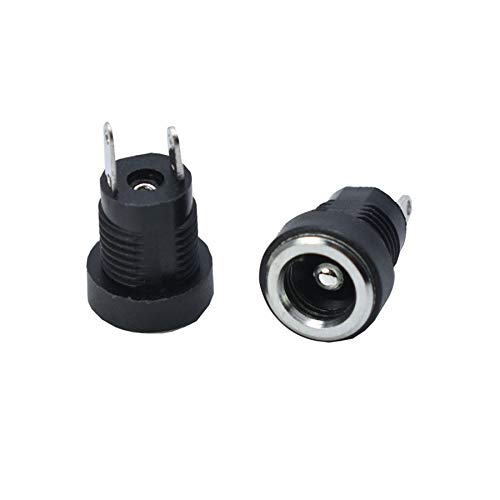

DC Power Connectors Female Jack Panel Mount Bulkhead 5.5*2.1mm 2pin

DescriptionFeatures:DC Power Connector,Female Jack,Panel Mount,bulkhead,Through Hole,straight,Unshiled,5.5*2.1mmThe contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.A long shelf life of 10000 insertions and withdrawalsConnector bodies are moulded in ABS plasticFrom the OEM Original Factory, same quality with much better price.Applications:Audio / Video productDigital devicesRemote controlCommunication productsHousehold electrical applianceSecurity ProductsToyComputer productsFitness equipmentTechnology EquipmentElectrical Characteristics:Voltage Rating: 48V AC/DCCurrent Rating: 5A (current carry only)Insulation Resistance: 1,000 MΩ min.Dielectric Withstanding: 500 VAC max.Mechanical Characteristics:Installation angle : Straight/ Right AngleConnector Mounting Type :  Panel Mount/PCB Mount
