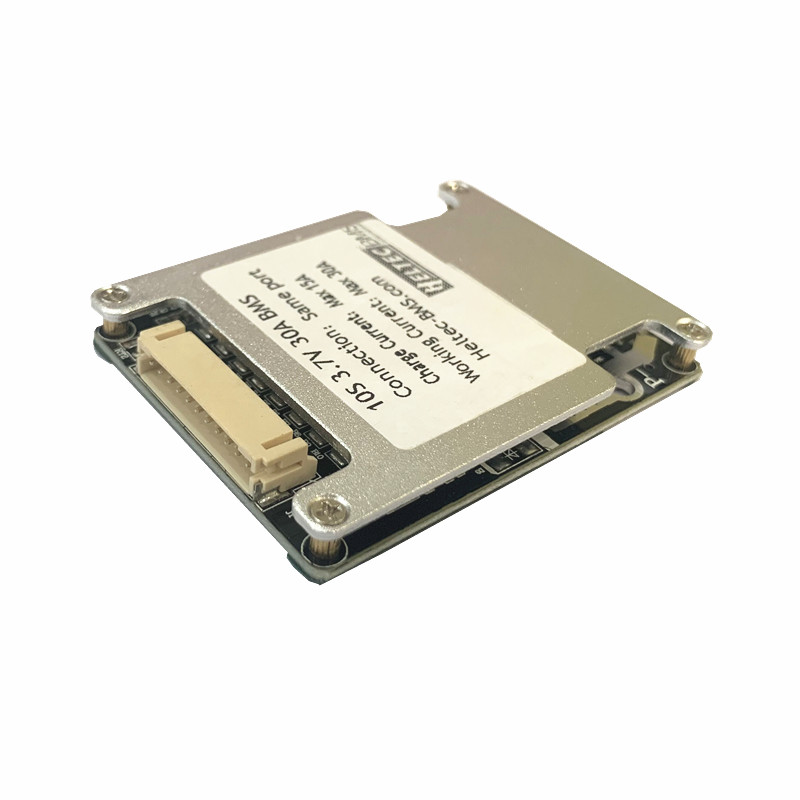

10S 30A 3.7V Same Port Size: 63×48×8MM Overcharge protection : 4.28v Over-discharge protection : 2.8v Abnormal high voltage protection Temperature protection optional Maximum continuous current : 30A Discharge over current protection : 100A Load short circuit protection Balance current : 83 mA Charging recovery Application： Applicable to 36V Electric bicycle and electric tools within 600W 10S 60A 3.7V Same Port Size: 63×48×14MM Overcharge protection : 4.28v Over-discharge protection : 2.8v Abnormal high voltage protection Temperature protection optional Maximum continuous current : 60A Discharge over current protection : 200A Load short circuit protection Balance current : 83 mA Charging recovery Application： Applicable to 36V Electric bicycle and electric tools within 1200W 13S 40A 3.7V Same Port Size: 72×55×8mm Overcharge protection : 4.28v Over-discharge protection : 2.7v Abnormal high voltage protection Temperature protection optional Maximum continuous current : 40A Discharge over current protection : 125A Load short circuit protection Balance current : 83 mA Charging recovery Application： Applicable to 48V Electric bicycle and electric tools within 800W 13S 60A 3.7V Same Port Size: 72×55×14mm Overcharge protection : 4.28v Over-discharge protection : 2.7v Abnormal high voltage protection Temperature protection optional Maximum continuous current : 40A Discharge over current protection : 250A Load short circuit protection Balance current : 83 mA Charging recovery Application： Applicable to 48V Electric bicycle and electric tools within 1200W 10S 12S 13S 14S 60A 3.7V Split Port Size：78×60×17mm Overcharge protection : 4.28v Over-discharge protection : 2.9v Abnormal high voltage protection Temperature protection optional Maximum continuous current : 60A Discharge over current protection : 225A Load short circuit protection Balance current : 56 mA Charging recovery Application： Applicable to 48V Electric bicycle and electric tools within 1200W 10S 12S 13S 14S 4 0A 3.7V Split Port Size：78×60×17mm Overcharge protection : 4.28v Over-discharge protection : 2.9v Abnormal high voltage protection Temperature protection optional Maximum continuous current : 40A Discharge over current protection : 225A Load short circuit protection Balance current : 56 mA Charging recovery Application： Applicable to 48V Electric bicycle and electric tools within 1200W 12S 16S 60A 120A 3.7V Same Port Size: 115×66×10/115×66×17/115×66×38/115×66×57mm Overcharge protection : 4.28v Over-discharge protection : 2.7v Abnormal high voltage protection Temperature protection optional Maximum continuous current : (1:60A, 2:120A, 3:240A, 4:360A) Discharge over current protection : 250A/500A/1000A/1500A Load short circuit protection Balance current : : 83 mA Charging recovery Application： Applicable to all kinds of common customized high and medium power lithium batteries
