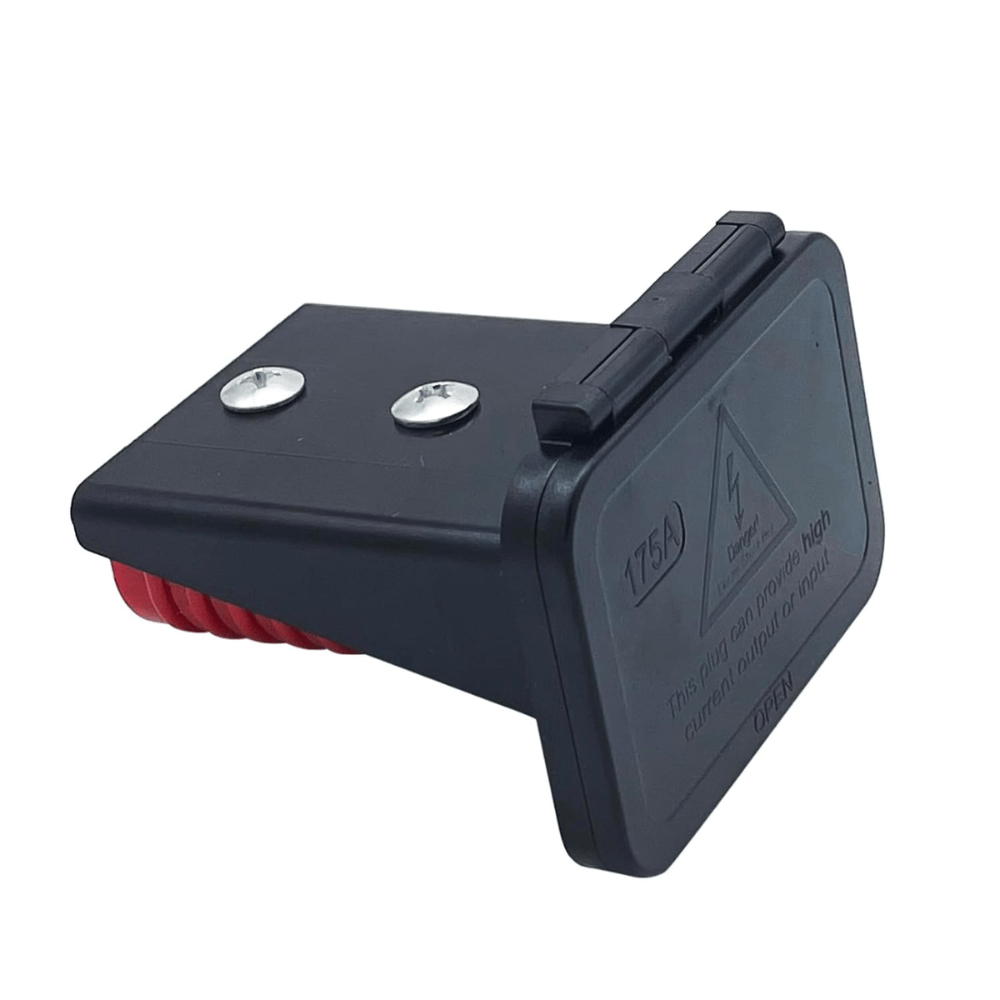

175A Anderson Connector with Pins with Flush Mount Bracket Panel Cover for Caravan Camper
$61.2
$100.98
Specifications: Rated Current: 175 A DC Rated Voltage: Up to 600 V AC/DC (suitable for 12–24 V or higher systems) Cable/Wire Size: #10 AWG to 1/0 AWG (~5–53 mm²) Connector Type: Anderson SB175 compatible Housing Material: Polycarbonate (PC) or ABS, durable, flame-retardant, UV-resistant Mounting Type: Flush mount into panel or wall Panel Face Dimensions: ~80 mm (W) × 50 mm (H) (varies by model) Panel Cut-Out Dimensions: ~60–65 mm × 40 mm (model dependent) Depth Behind Panel: ~50–60 mm Operating Temperature Range: –20 °C to 105 °C Protection Features: Protective cover shields from dust, moisture, and UV exposure Applications: Caravans, campers, boats, trailers, off-road vehicles, 4WDs Additional Features: Keyed design to prevent incorrect connections; optional strain relief clamps
