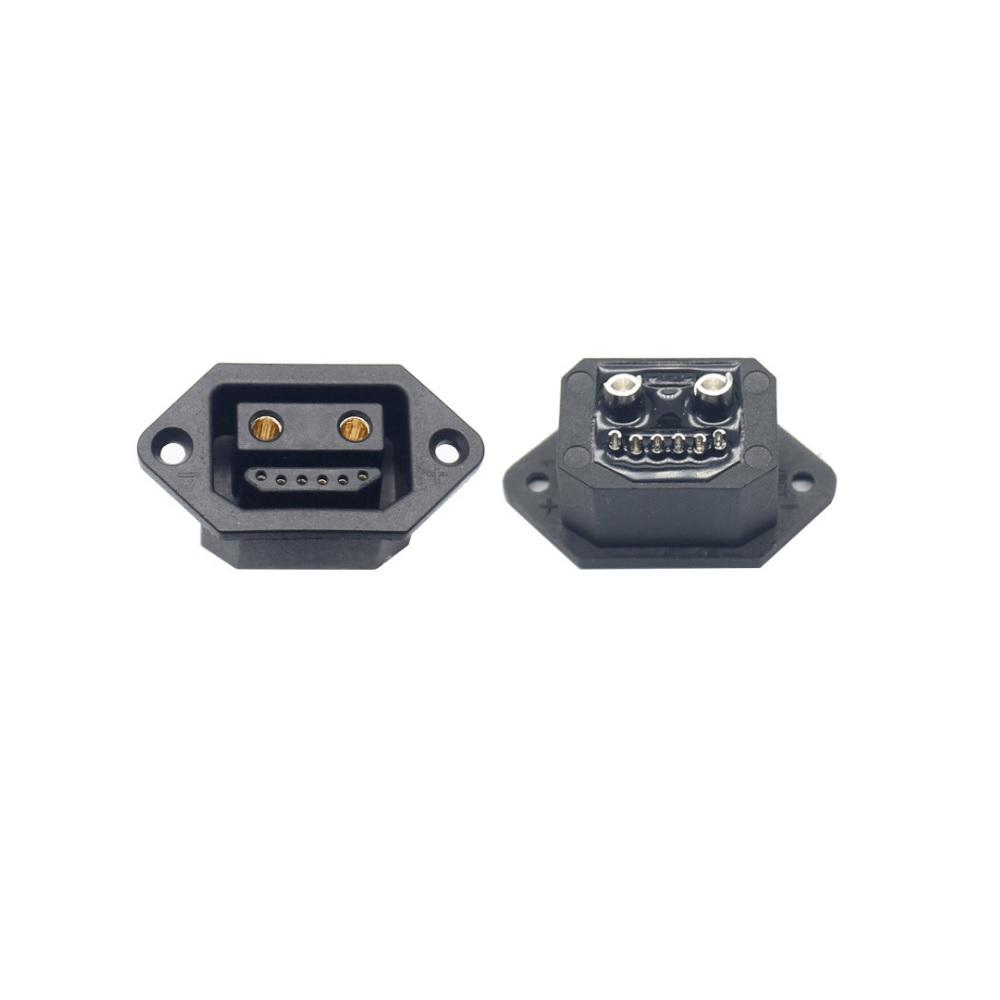

Specifications Power Pins: Quantity: 2 Current Rating: Up to 50A Voltage Rating: Up to 600V DC Material: High-conductivity copper, tin or gold plated Signal Pins: Quantity: 6 Current Rating: Up to 5A Voltage Rating: Up to 30V DC Material: High-quality copper, tin or gold plated Contact Resistance: Low contact resistance Insulation Resistance: High insulation resistance Durability: Rated for 500 mating cycles or more Operating Temperature Range: -40°C to 105°C Connector Type: Male and female with secure locking mechanism Housing Material: High-strength thermoplastic, flame-retardant, impact and chemical resistant Sealing: IP67 rated for dust and water protection
