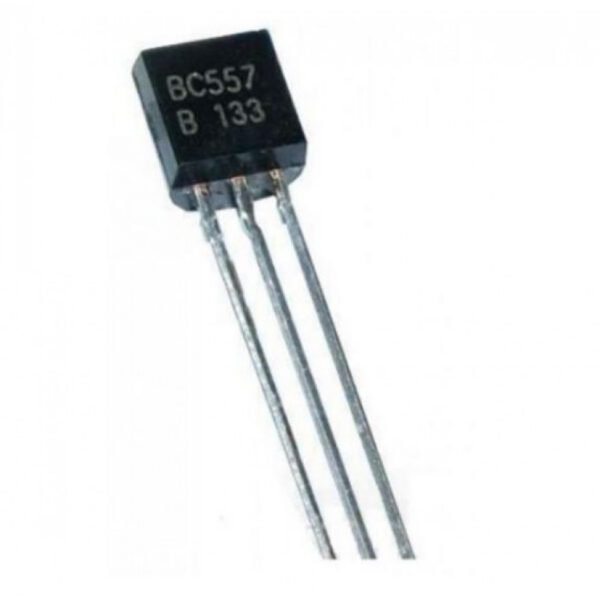

BC557 PNP General Purpose Transistor – TO-92-3 Package

DescriptionBC557 PNP General Purpose Transistor – TO-92-3 PackageBC557 PNP General Purpose Transistor 45V 100mA BC557 is a semiconductor device used to amplify or switch electronic signals and electrical power. This transistor composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. This product is known as BC557, BC557BTA, BC557ATA, BC557BTF, BC557B, BC557C, BC557A, BC557CBK, BC557BBKFeatures:Low current (max. 100 mA)Low voltage (max. 65 V).Low error voltageFast switching speedFull-voltage operationHigh power and current handling capabilityFeatures/Specs:Product Type: BJTs – Bipolar TransistorsTransistor Polarity: PNPConfiguration: SingleCollector- Emitter Voltage VCEO Max: 45 VCollector- Base Voltage VCBO: 50 VEmitter- Base Voltage VEBO: 5 VPd – Power Dissipation: 500 mWGain Bandwidth Product fT: 100 MHzDC Collector/Base Gain hFE Min: 125DC Current Gain hFE Max: 125 at 2 mA, 5 VMinimum Operating Temperature: – 65°CMaximum Operating Temperature: 150°CMounting Style: Through HolePackage/Case: TO-92-3Applications:Driver Modules like Relay Driver, LED driver etc..Amplifier modules like Audio amplifiers, signal Amplifier etc..Darlington pairDatasheet: BC557 PNP TransistorPackage Includes:1 x BC557 PNP General Purpose Transistor – TO-92-3 PackageNote: Product Images are shown for illustrative purposes only and may differ from actual product
