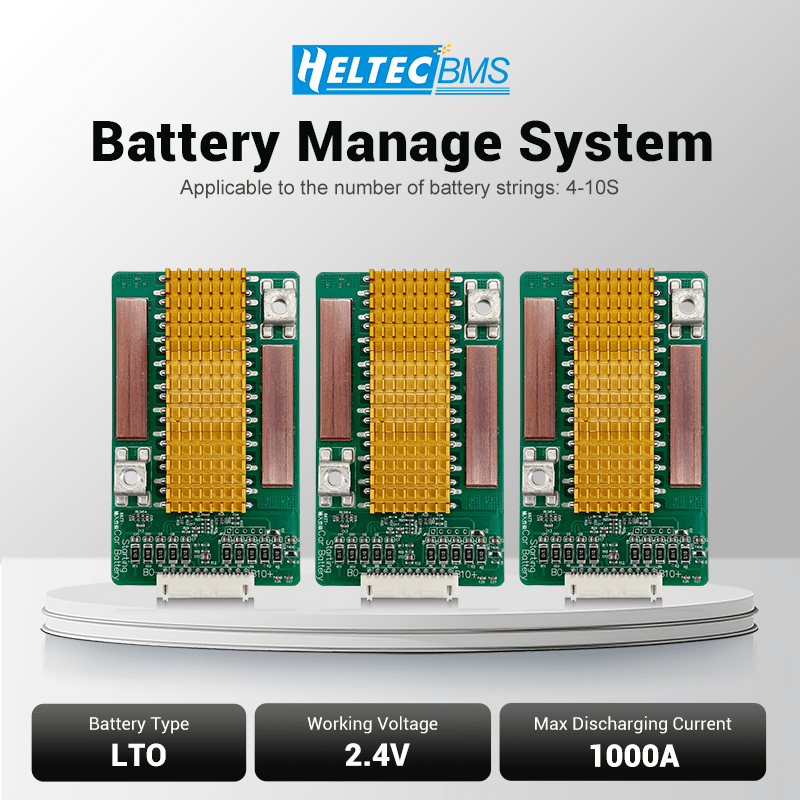

Feture A high precision protection chip is adopted The two original development of the TI platform adapts to a wide variety of lithium compounds, such as three yuan lithium polymer, lithium iron phosphate, and lithium titanate High voltage VDS, low RDS conduction internal resistance, low CGD mueller capacitance,-252 packages TO power MOSFET WenPiao tiny, the accuracy is 1% high power 2512 encapsulation alloy measuring resistance Jiantao, 94 V-0 level KB high fire prevention level double glass fiber board Standard high thermal conductivity aluminum heat sink The maximum working current 100 A, continuous rated current 80 A Maximum pulse start current 1000 A/10S, normal pulse start current 800 A/10S Very low power consumption, static standby power consumption and 10uA. Work power consumption 100uA and balanced start-up power consumption 50 mA 10 uA (single battery) The state overall PCBA discharge resistance < 25 m Ω, charging the state 35 m Ω resistance The typical voltage of the detection methods of charging protection, a discharge protection, over current protection, short circuit protection, temperture protection balanced management APPLICATION Mobile power or test equipment power supply electric bicycle electric power tool Cars below 3.5 are activated Connection
