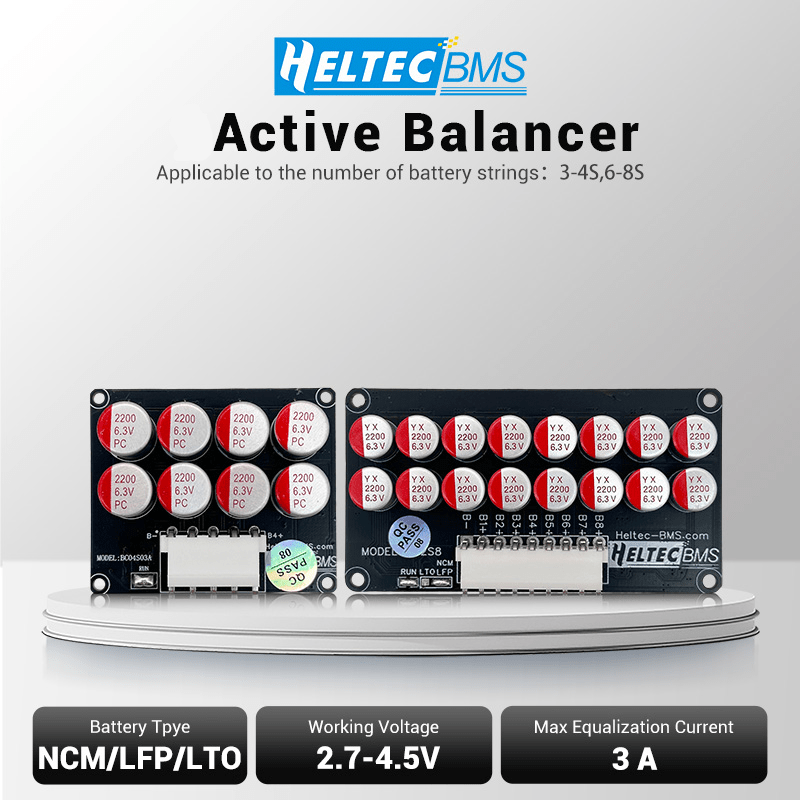

HeltecBMS 3S-8S 3A Lifepo4 Balancer 4S 6S 7S Lithium battery Active cell Balancer Lipo/LTO Battery Energy equalization Capacitor

TFT Voltage collection Display This display is used to collect battery volatage 1-4S The accuracy of a single string is 0.001V, and the total voltage is 0.01V Display can be flipped up and down through switches Feture Applicable battery type: lithium ternary/lithium iron phosphate 3-4S Ternary lithium/lithium iron phosphate/lithium titanate 6-8S Working voltage range: ternary lithium/lithium iron phosphate: 2.7-4.2V Lithium titanate: 1.8-3.0V Equalization voltage accuracy: 5mV (standard) Balance mode: active balancing of the entire battery group participating in energy conversion simultaneously Equilibrium current: When the voltage difference is 0.1V, the equilibrium current is 0.3A. The greater the voltage difference, the greater the equilibrium current. The maximum balanced current is 3A Undervoltage protection sleep voltage: ternary lithium/lithium iron phosphate: 2.7V lithium titanate: 1.8V Product size: 3-4S 48 × thirty-six point five × 16mm 6-8S 90 × forty-nine × 16 9-16S125 × one hundred × sixteen Working environment temperature -10 ℃ -60 ℃ External power does not require an external power source, relying on the energy transfer inside the battery to achieve the balance of the entire battery pack 3A Capacitir Active Balancer
