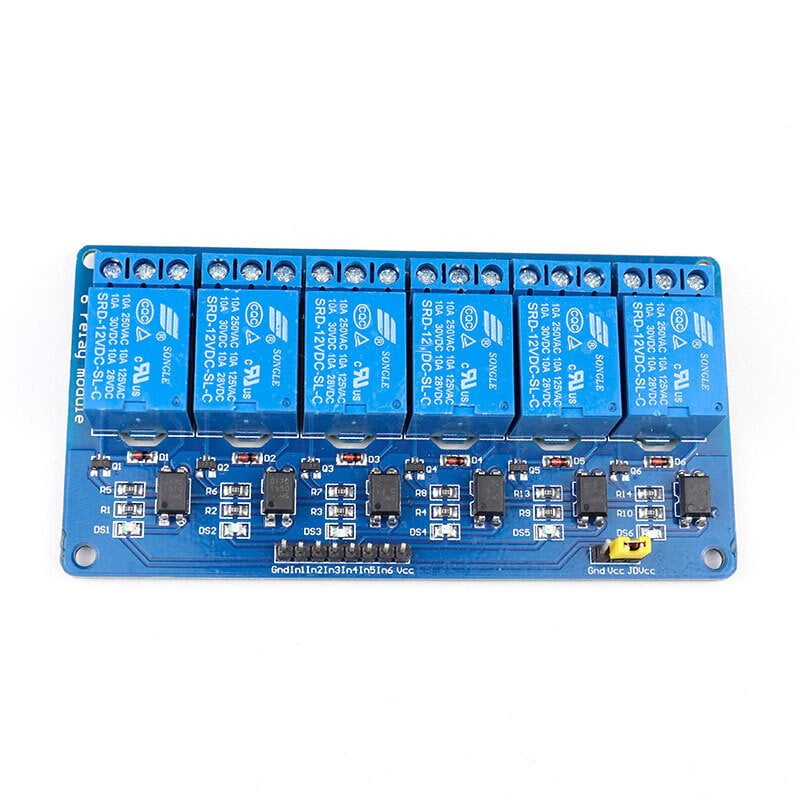

This 6 Road/Channel Relay Module (with light coupling) 12V module meets the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.The triggering of the 6 Road/Channel Relay Module is reliable, more stable. The double FR–4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.The inputs of the 8 Channel 12V Relay Module are isolated to protect any delicate control circuitry.SpecificationsTrigger Voltage (VDC)12Trigger Current (mA)20Switching Voltage (VAC)250@10ASwitching Voltage (VDC)30@10AOperating Temperature (°C)-40 to 85Opt. Relative Humidity(RH)20% ～ 85%Storage condition (℃)– 65 to 125Length (mm)104Width (mm)53Height (mm)17Weight (gm)80Shipment Weight0.084 kgFeatures :Equipped with high-current relay 10A@250VAC / 10A@30VDCIt can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etcHigh-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connectionA freewheeling diode to protect your microcontrollerInput Signal Pin connected to Burg stick for easy accessibilityLED status indicators to indicate the relay ON/OFF statusMounting holes providedSignal input with a high-level signal, the common and often start conduction;The relay can directly control all kinds of equipment and load;One often opened a normally closed contact;Blue KF301 terminal line more convenient.It is also able to control various appliances and other types of equipment with a large current.Red working status indicator lights are conducive to safe use. Widely used for all MCU control, industrial sector, PLC control, smart home control.
