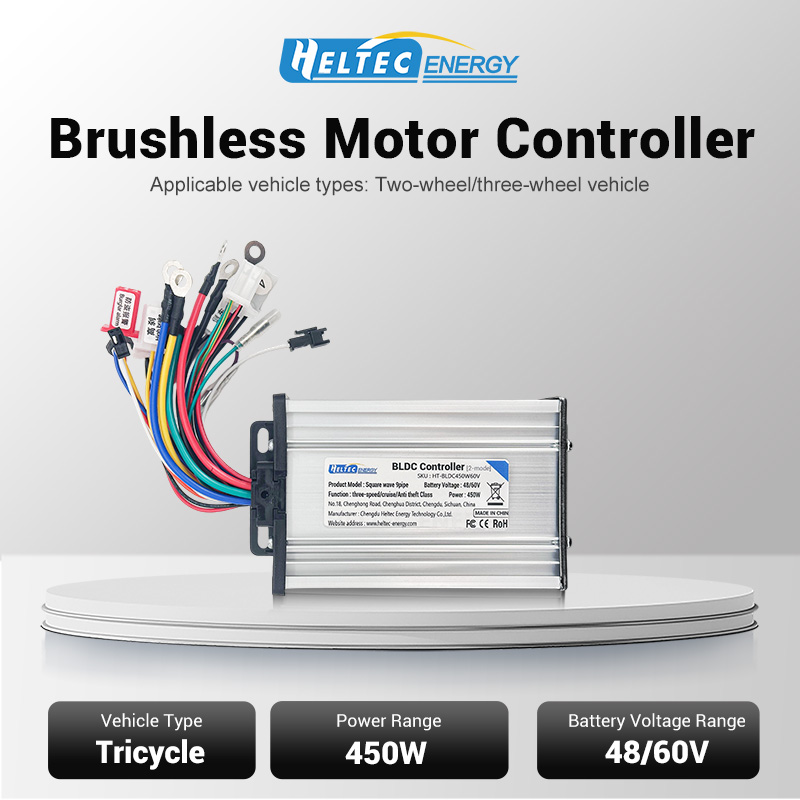

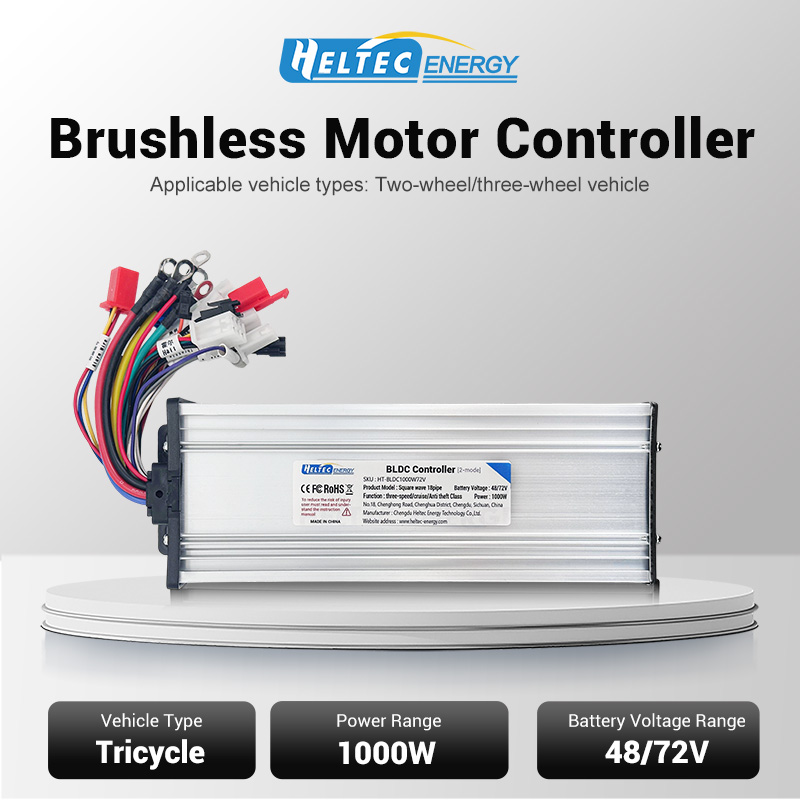

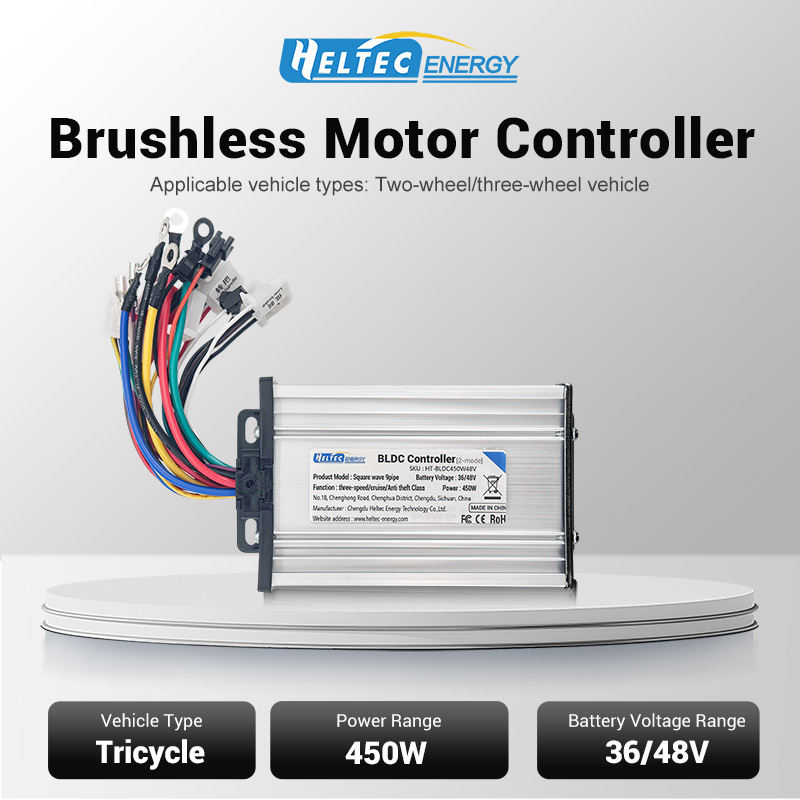

Electric Vehicle 36V/48V/60V/72V Brushless DC Motor Controller 350W 500W 800W 1000W For Electric Bicycle E-bike Scooter

Notice: If you are unsure whether your electric vehicle is compatible with this product, please contact our customer service for consultation. Thank you for your visit. The 360W controller does not have reverse parking function. Feture Rated Voltage: 36V/48V/60V/72V Rated power: 350W/500W/800W/1000W Current: 18/30A 35A 40A ±1A Handle voltage: 1.1 ± 4.2V Controller Wiring Harness Description On the controller, there is a separate yellow wire for the high-voltage level brake and a black-and-white wirefor the low-voltage level brake: use the high-voltage level brake if the brake voltage is above 5V, and the low-voltage level brake if the voltage is below 5V. First, check how many wires come out of your brake: • If there’s one wire, connect it to the high-voltage level brake. • If there are two wires (from the throttle assembly), pull out the blue wire of the low-voltage level brake and combine it with the throttle wire — this will achieve the brake-cut-off effect. Both high-voltage and low-voltage level brakes serve the same purpose: cutting off power when braking.
