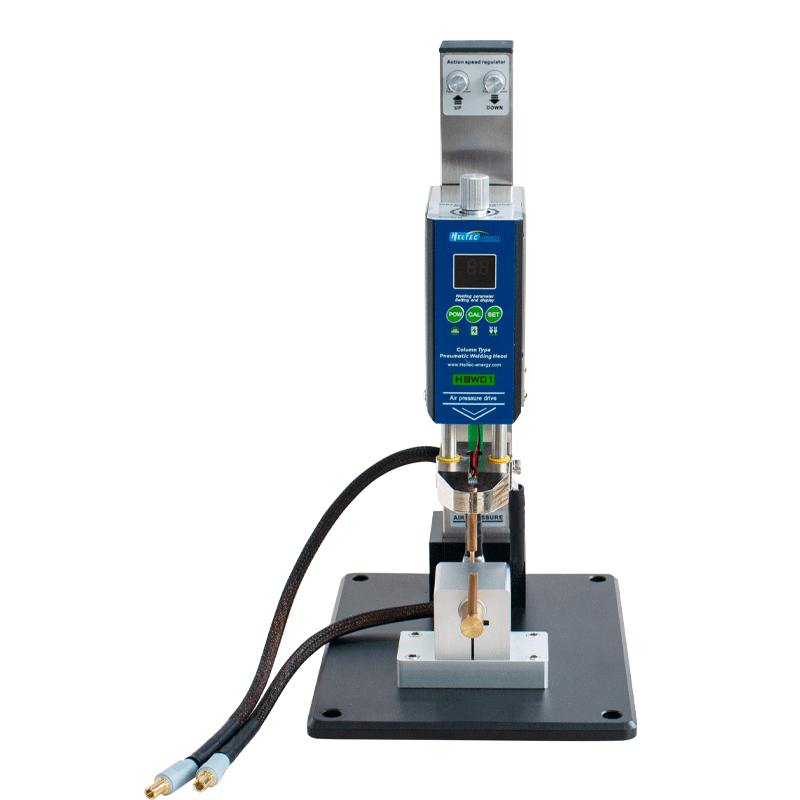

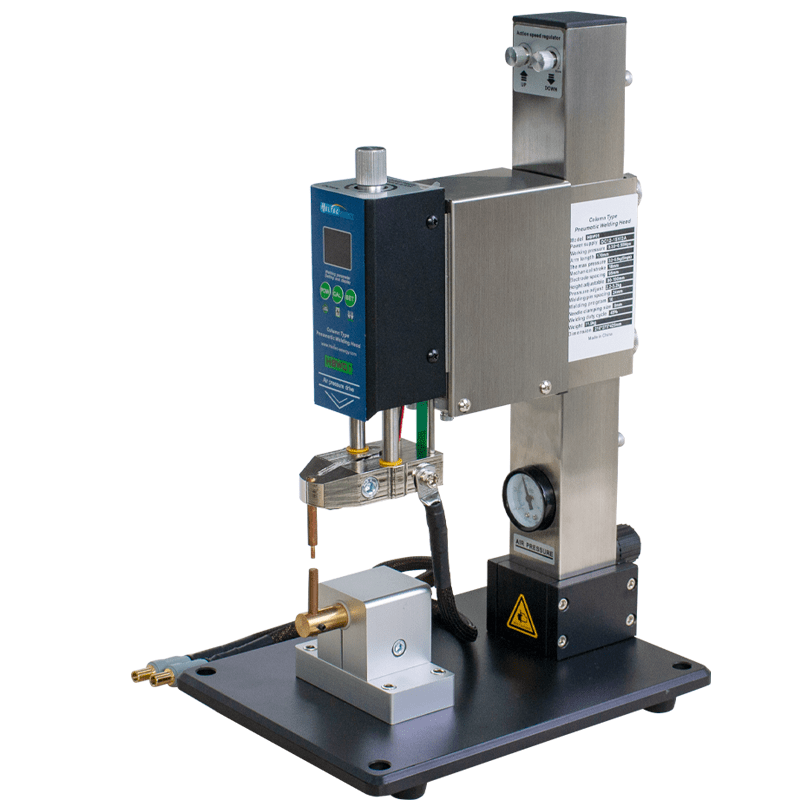

HBW01 Column Type Pneumatic Butt Welding Head Machine Spot Welding Supporting Machine

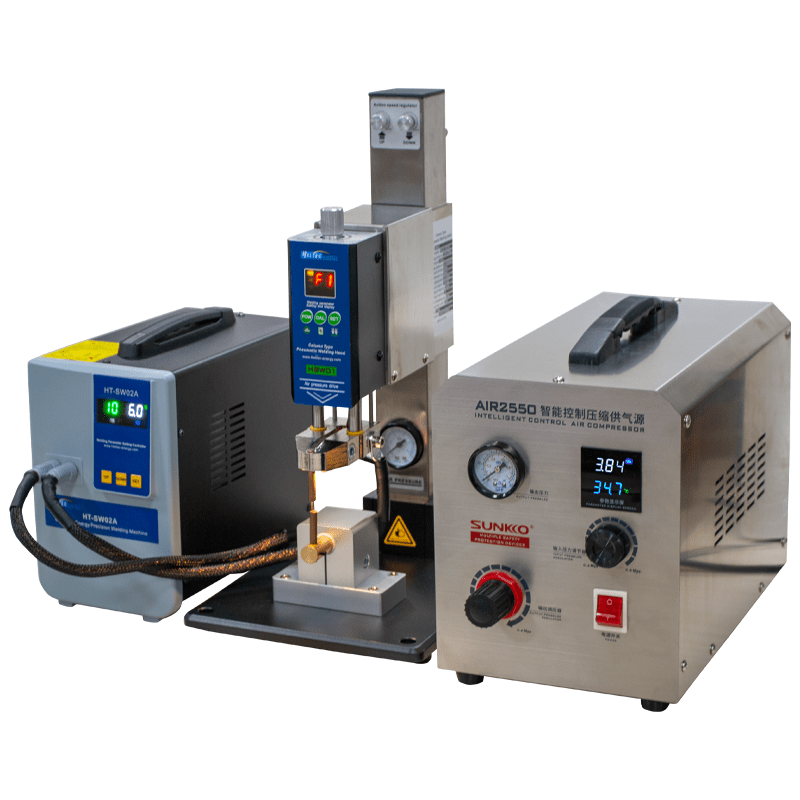

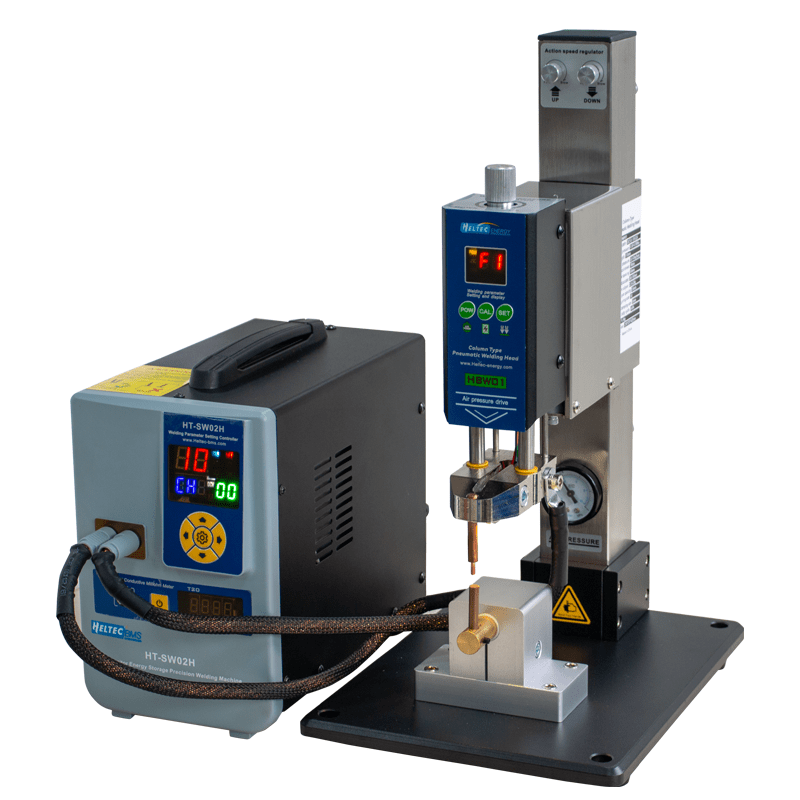

Note: This is a welding head that can be used with our spot welding machine 01H/02A/02H to improve welding efficiency Package 1. Pneumatic pulse welder *1 set 2. power adapter 3. Foot control switch 4. Connecting the DC cable 5. Aluminum oxide copper welding pin 6. Anti-static sponge, carton and wooden box.   Product Information Brand Name: Heltec Energy Origin: Mainland China Warranty: One year MOQ: 1 pc Production Column Type Pneumatic Butt Welding Head Electrode maximum pressure range 6KG Adjustable column height range 1-6cm Power supply voltage AC 110V/220V Use Use with Heltec spot welder and air compressor to improve work efficiency   Product Parameters Power supply DC 12-15V/2A Working airpressure 0.35~0.55Mpa Electrode arm length 170mm Max electrode pressure 3.5-5.5kg(single) Electrode pneumatic stroke 18mm Adjustable electrode distance 95mm Height adjustment range 90-190mm Welding needle pressure adjustment range 2.2-3.2kg Single welder pin spacing 24mm Welding pneumatic program 10 piece Welder pin clamping size 6mm Welding duty cycle 45% Weight 11.9kg Size 210*275*425mm Features 1.Original integrated one-piece column pneumatic welding head,which can be used with_any machine model/output source. 2.The pneumatic spot welding head adopts a cushion design,the pressure of the welding needle is independently adjustable,and the downward pressure speed and reset speed of the pneumatic welding head are independently adjustable. 3.Original semi-automatic continuous spot welding function, which can be set to 1~9 times or N times of continuous welding. 4.The design of the front pressure gauge and pressure adjustment knob facilitates monitoring and efficient adjustment. 5.Equipped with intelligent heat dissipation and cooling system,suitable for long-term batch operations. 6.With the function of adjusting the welding head height,objects of different volumes can also be precisely welded. 7.Pioneering simulated welding calibration mode,zero current output simulates the welding process, reducing the cost of errors. Applications Polymer battery Electronic wire Copper mesh Stainless steel Metal parts
