Heltecbms bms 16s 100A 120A/16s 48v lifepo4/Lipo battery protetcion board with balance board for inverter bms 4kw 5kw
$54.96
$85.74

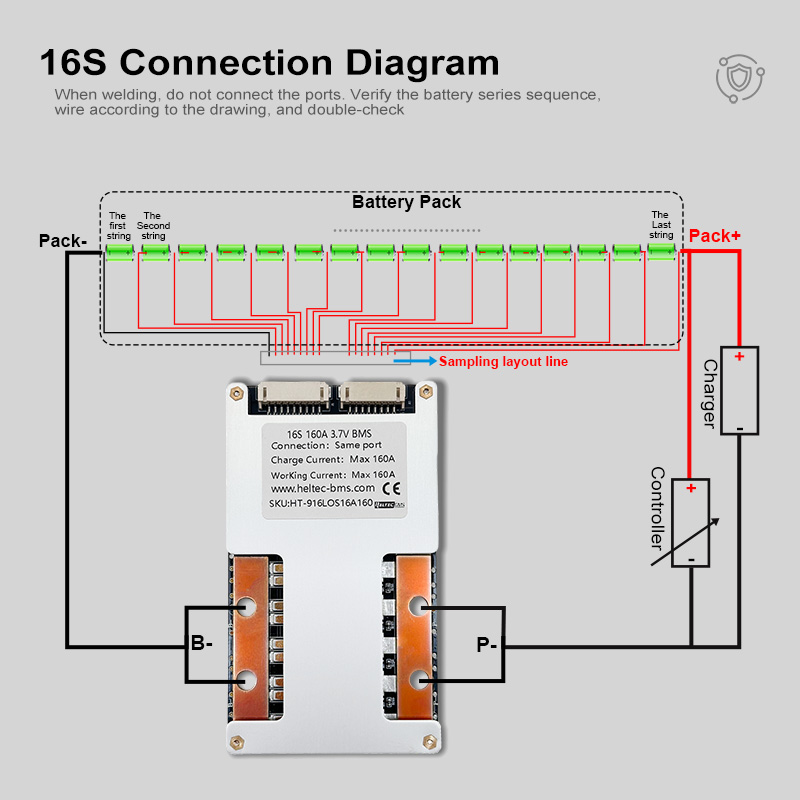

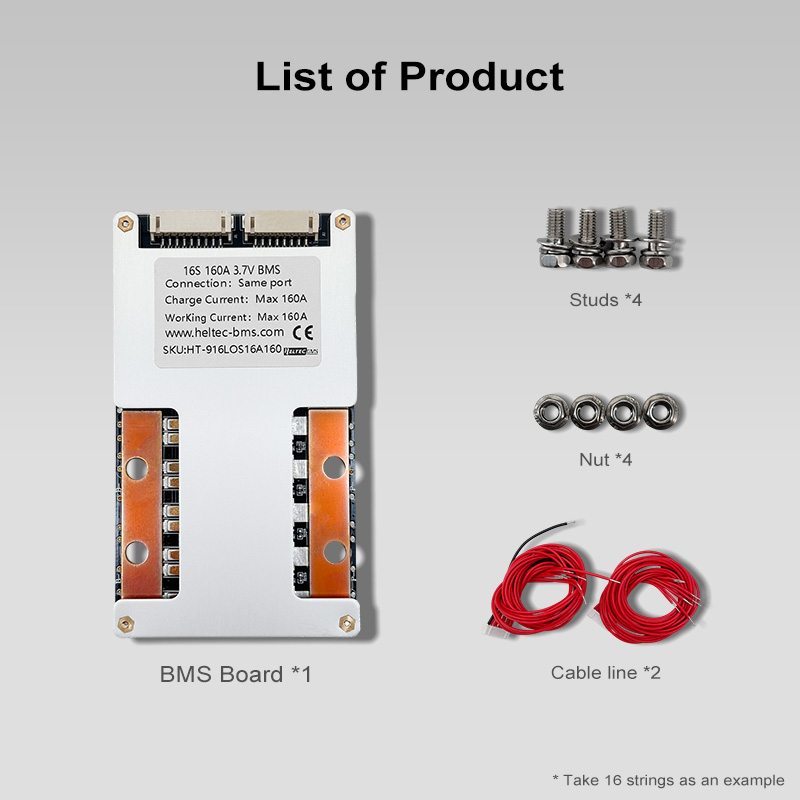

16S 120A 3.7V Same Port Size:115*66*8/12mm Overcharge protection: 4.25v±0.25v Charging recovery: 4.2V±0.25v Over-discharge protection: 2.8v±0.25v Discharge recovery: 3.0v±0.25v Maximum continuous current: 120A Peak Current: 360A Balance current: 100 mA Balanced starting voltage: 4.22v±0.25v Charging recovery Self-consumption: ≤35uA 16S 120A 3.2V Same Port Size: 115×66×18 Overcharge protection voltage: 3.65V Charge protection release voltage:3.55V Over-discharge protection voltage: 2.35V Discharge release voltage :2.55V Balance start Volatge:3.4V Abnormal high voltage protection: yes Temperature protection: Optional Maximal continuous current: 120A Peak current :360A Balanced current:100Ma Sugget to conenct with Silicone cable with copper nose Note: All holes need to be connect as pictures shows Package include
