$45.11
$80.3

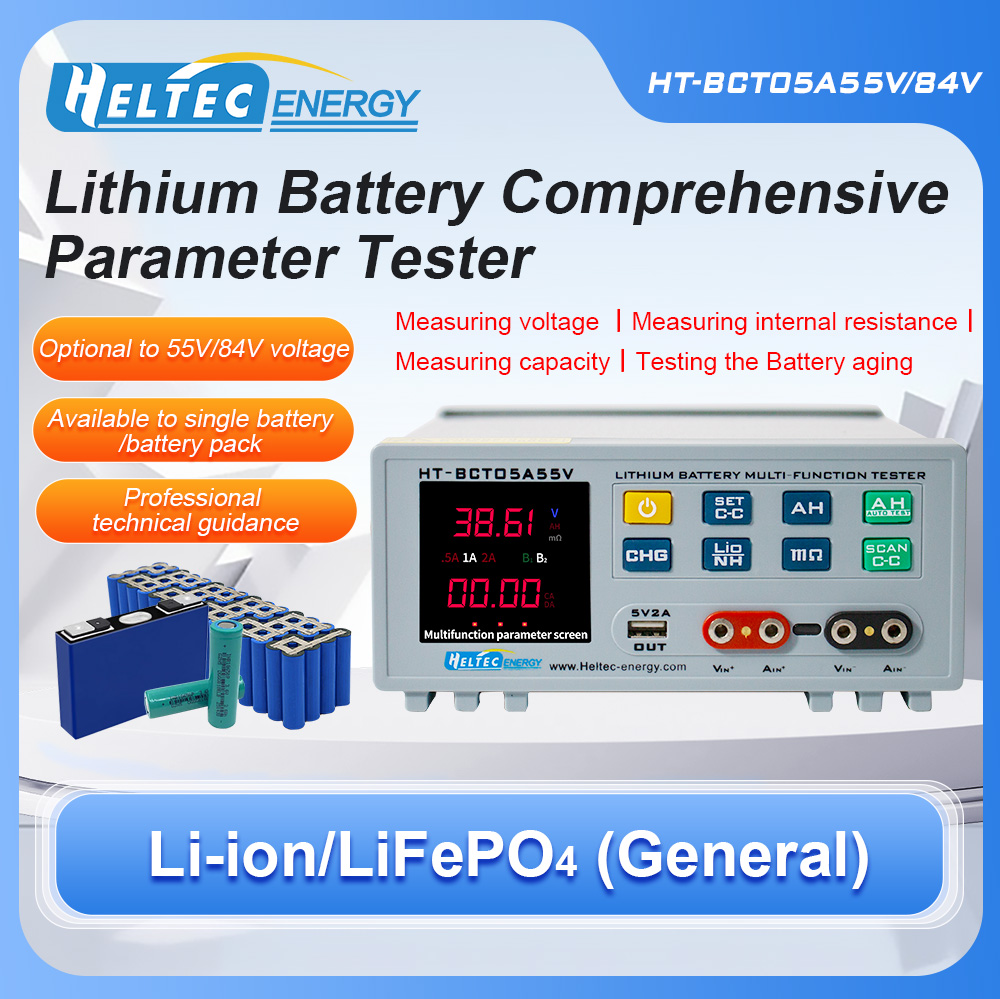

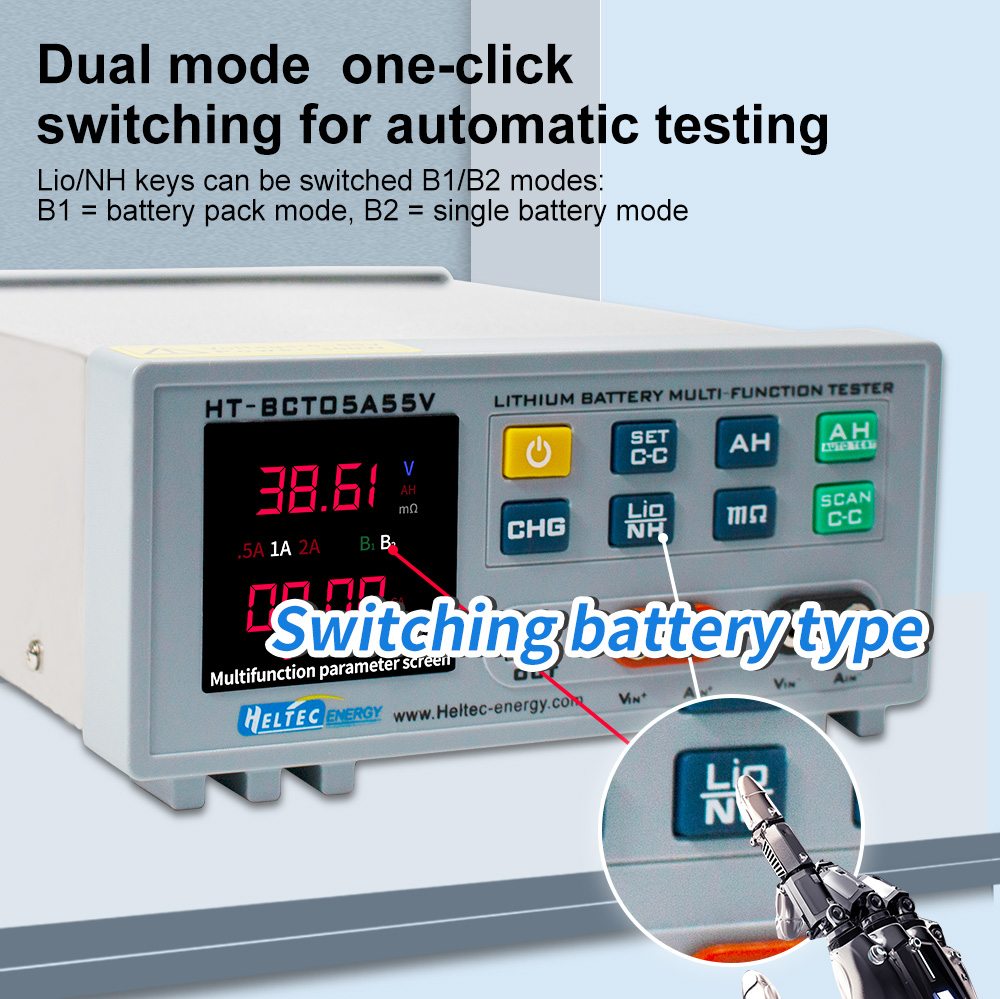

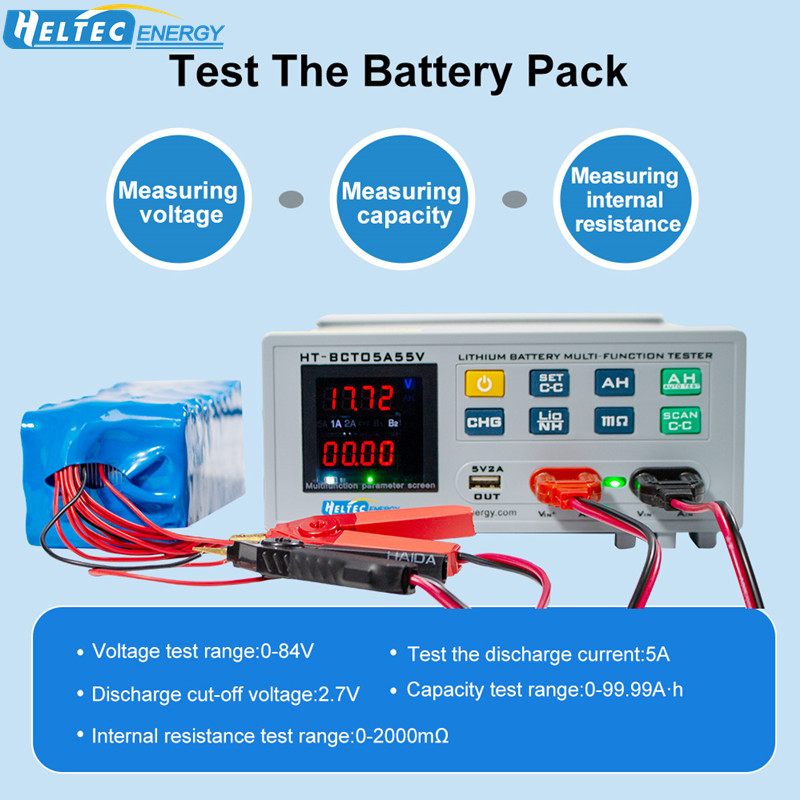

HT-BCT05A55V Battery capacity tester HT-BCT05A84V Battery capacity tester Product Information Brand Name: Heltec Energy Origin: Mainland China Warranty: One year MOQ: 1 pc Voltage of power supply AC100~240V Testing voltage 0~55V;0~84V Testing resistance 0~2000 mΩ Testing capacity 0~9999 mah Product size 300x90x82 mm Testing discharging current 0.5A/1A/2A/5A Displaying discharging current 0-5A External USB output 5V/2A Application: Used for battery voltage, resistance, capacity and discharging current test Range of applications The battery capacity tester is for manufacturers which produce lithium battery, nickel battery, battery packs, power bank. It is for R&D and quality control, operating stores for purchase quality testing and maintenance testing The Battery capacity tester could select battery cell fast in charging and discharging test. Test resistance fast to select cell for assembling battery pack. Aging test and thermal stability test. Testing charging current of mobile phone and notebook for maintenance. Features 1. The first original design is tester which is with capacity measurement after charging automatically. 2. There is the charging current display function for movable power bank and mobile phone,notebook. 3. There is microchip controlled precise monitor. 4. There are Ampere hour value for no-load and discharging voltage, charging and discharging current,resistance and capacity. 5. There are 0.5A/1A/2A/5A discharging current could be selected to test capacity of battery. 6. The battery capacity tester is suitable for lithium/nickel battery,battery pack,sun-generated electric power. 7. There are icons and words for corresponding to the test function for display. 8. The battery capacity tester will alarm when the connection is wrong. Request for Quotation: Jacqueline:
