1S-24S Lithium Battery Voltage Measuring Instrument

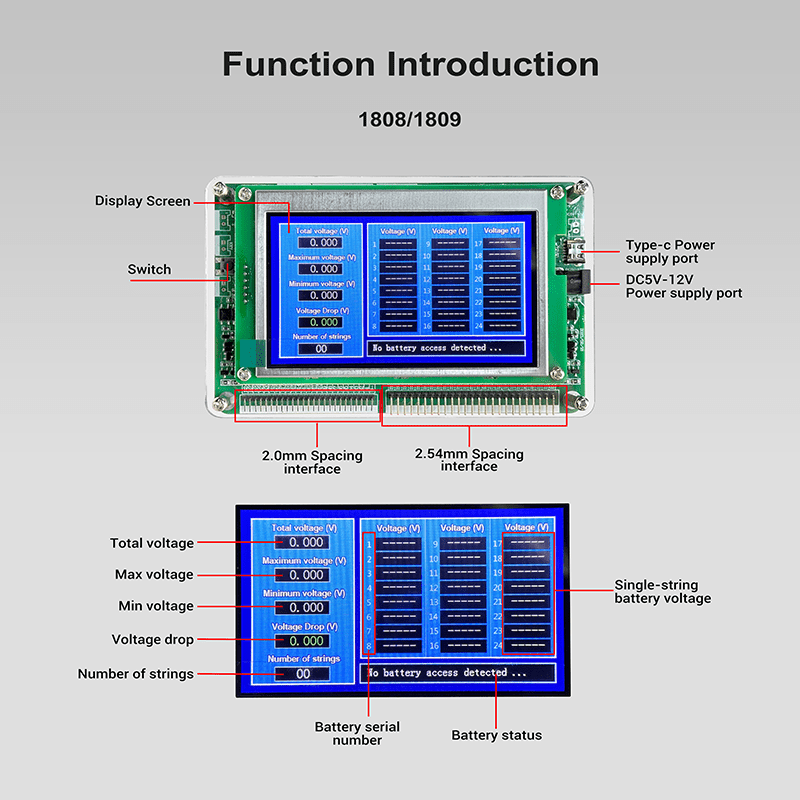

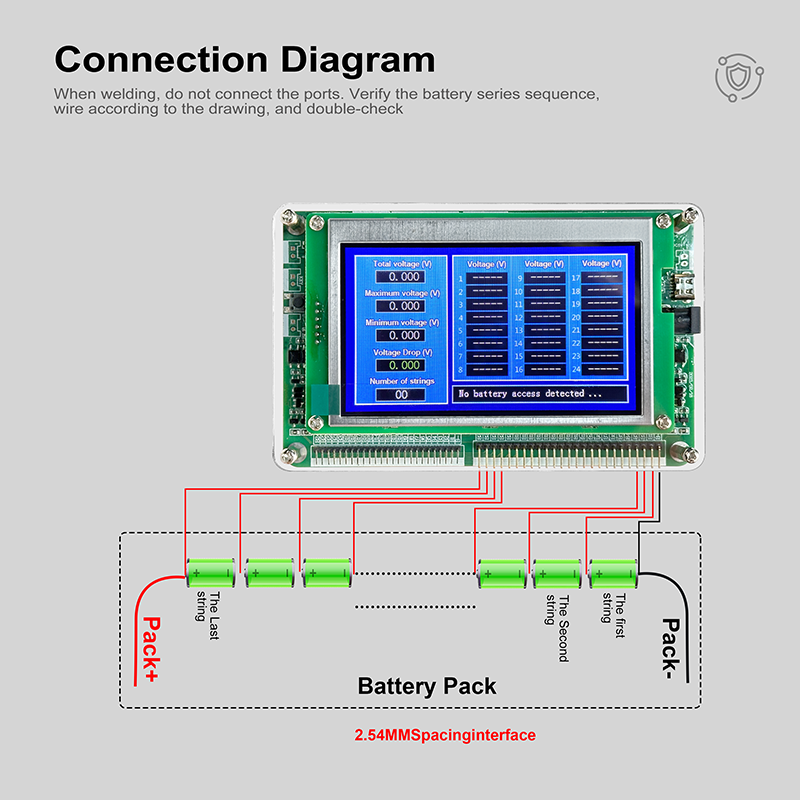

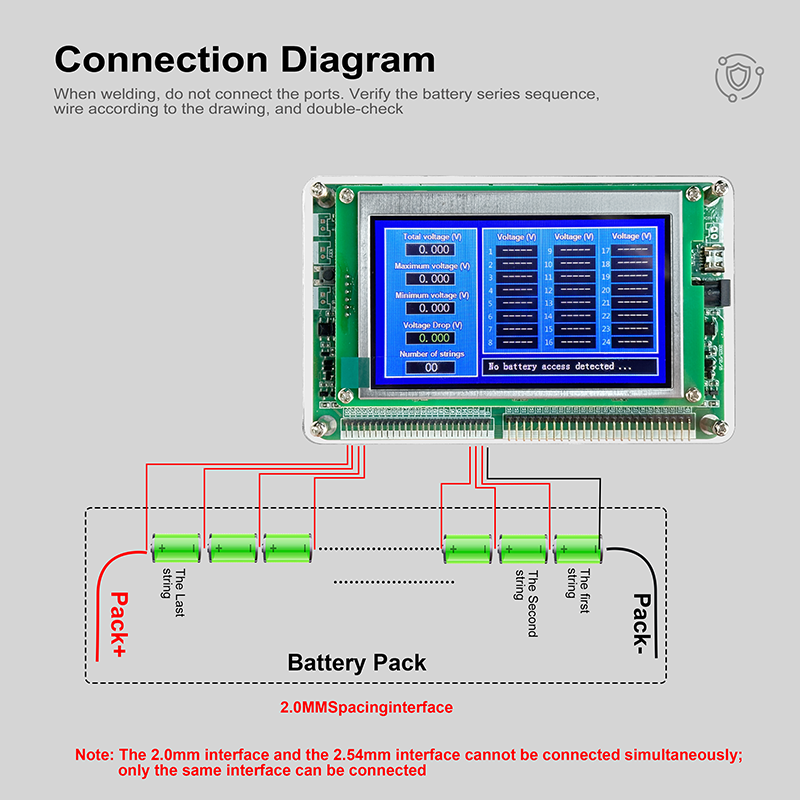

1)2.0MM and 2.5MM spacing interface can’t be connected at the same time 2)Range between series:0.3V~9V/0.5V~25V to choose 3)if you need cable expansion board, need to buy separately Feture 1. Support negative – voltage display 2. Single series range 0.1V-6V 3. Measurement accuracy 0.05%±3MV 4. Support for mixed insertion (without starting with B-) 5. Automatically identify the number of battery series 6. Display the highest voltage, the lowest voltage, and the maximum differential voltage between series 7. TypeC port power supply 8. Color LCD display with 1S to 24S battery pack measurement   Direction for use Connect the TypeC power port to the power supply, and then select the detection port according to its own interface, and then you can check whether the voltage difference is normal.
